Summary of Contents for Pilz PSSu E AI SHT2

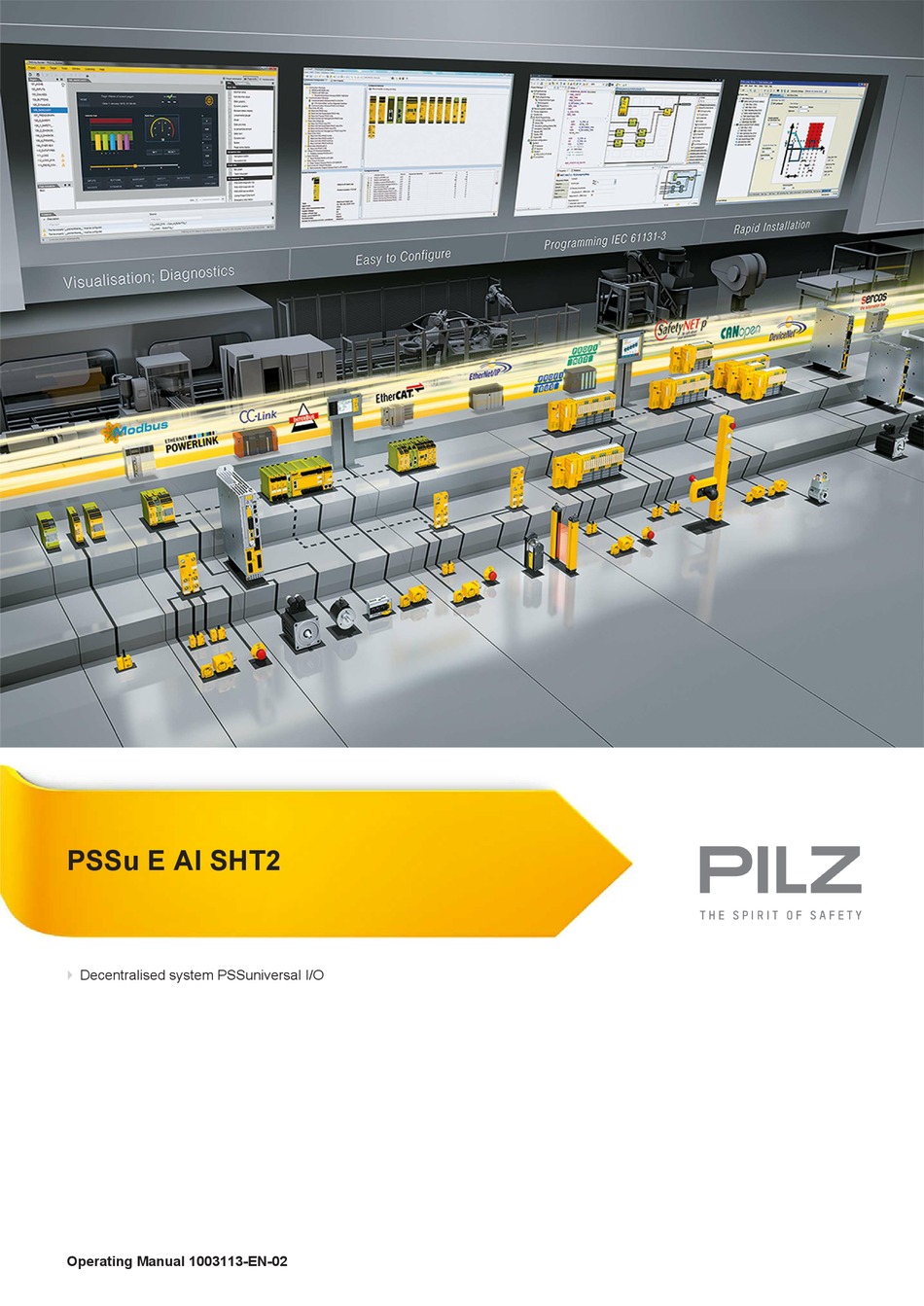

- Page 1 PSSu E AI SHT2 Decentralised system PSSuniversal I/O Operating Manual 1003113-EN-02...
- Page 2 Preface This document is a translation of the original document. All rights to this documentation are reserved by Pilz GmbH & Co. KG. Copies may be made for internal purposes. Suggestions and comments for improving this documentation will be gratefully received.
-
Page 3: Table Of Contents
Changing an electronic module during operation Section 6 Wiring General wiring guidelines 6.1.1 Mechanical connection of the base modules Terminal configuration Connecting the module Section 7 Technical details Section 8 Order reference Product Accessories Operating Manual PSSu E AI SHT2 1003113-EN-02... -
Page 4: Operating Manual Pssu E Ai Sht2
PSSu in system environment B may be used in the Automation system PSS 4000, e.g. with – Decentralised system PSSu I/O with SafetyNET p – Control system PSSu PLC – Control system PSSu multi Operating Manual PSSu E AI SHT2 1003113-EN-02... -
Page 5: Definition Of Symbols
It also highlights areas within the text that are of particular import- ance. INFORMATION This gives advice on applications and provides information on special fea- tures. Operating Manual PSSu E AI SHT2 1003113-EN-02... -
Page 6: Overview
Scaling of input current 1:10 and 1:20 – Evaluation via analogue input module with an input resistance = 115 Ohm, (e.g. PSSu E F AI I), order no.: 312 260) For standard and failsafe applications in system environment A and B Operating Manual PSSu E AI SHT2 1003113-EN-02... -
Page 7: Front View
2D code 2: Labelling strip for the terminal configuration on the base module 3: Name of electronic module 4: Connection level 1 5: Connection level 2 6: Connection level 3 7: Connection level 4 Operating Manual PSSu E AI SHT2 1003113-EN-02... - Page 8 9: Round connection holes (connection levels 1, 2, 3 and 4) for connecting the signal lines 10: Mounting slot for colour marker to label the connection level (connection levels 1, 2, 3 and 4) Operating Manual PSSu E AI SHT2 1003113-EN-02...
-
Page 9: Safety
The E AI SHT2 module may be used in conjunction with the following base modules: PSSu BP 1/8 S PSSu BP 1/8 C PSSu BP 1/12 S PSSu BP 1/12 C PSSu BP-C 1/8 S PSSu BP-C 1/8 C PSSu BP-C 1/12 S PSSu BP-C 1/12 C Operating Manual PSSu E AI SHT2 1003113-EN-02... -
Page 10: Safety Regulations
In safety-related applications, please comply with the mission time T in the safety-re- lated characteristic data. When decommissioning, please comply with local regulations regarding the disposal of electronic devices (e.g. Electrical and Electronic Equipment Act). Operating Manual PSSu E AI SHT2 1003113-EN-02... -
Page 11: Function Description
= 1:20 The maximum output variable error at 25 °C is: When two analogue input modules are connected (e.g. PSSu E F AI I) 1,0 % When one analogue input module is connected (e.g. PSSu E F AI I) 3,6 % Operating Manual PSSu E AI SHT2 1003113-EN-02... - Page 12 Output current I at R = 20 mA Output current I at R = 10 mA I O 0 I I 0 O 0 + I O 1 O 1 + O 0 - O 1 - Operating Manual PSSu E AI SHT2 1003113-EN-02...
-
Page 13: Installation
5.1.1 Dimensions Base modules with four connection levels: 12,6 mm 8,1 mm 52,1 mm (0.496") (0.319") (2.051") 12,6 mm 72,6 mm (0.496") (2.858") Operating Manual PSSu E AI SHT2 1003113-EN-02... -
Page 14: Installing The Base Module
Push the base module back [2] until you hear it lock into position. On the mounting rail, slide the base module to the left until you hear the two lateral mounting hooks on the adjacent module lock into position [3]. Operating Manual PSSu E AI SHT2 1003113-EN-02... -
Page 15: Inserting And Removing An Electronic Module
This is how the base module is coded. The mechanics of the electronic modules are designed for 50 plug in/out cycles. Operating Manual PSSu E AI SHT2 1003113-EN-02... -
Page 16: Inserting An Electronic Module
Installation 5.3.1 Inserting an electronic module Procedure: The electronic module must audibly lock into position [1]. Mark the electronic module using the labelling strips [2]. Schematic representation: Operating Manual PSSu E AI SHT2 1003113-EN-02... -
Page 17: Removing An Electronic Module
– The substitute values are used for the modules' FS outputs, with Valid Bits = FALSE. CAUTION! Sparking can cause interference and errors! Only change the module when the load is switched off! Operating Manual PSSu E AI SHT2 1003113-EN-02... -
Page 18: Wiring
Insert the stripped cable into the round fixing hole [2], as far as it will go. – Tighten up the screw on the screw terminal. – Check that the cable is firmly seated. Operating Manual PSSu E AI SHT2 1003113-EN-02... - Page 19 Inputs/outputs on the counter modules: 1.5 mm (AWG16) – Analogue inputs/outputs: 1.5 mm (AWG16) – Communication cables: 1.5 mm (AWG16) – Test pulse outputs: 1.5 mm (AWG16) – Power supply: 2.5 mm (AWG12) – Functional earth: 2.5 mm (AWG12) Operating Manual PSSu E AI SHT2 1003113-EN-02...
-
Page 20: Terminal Configuration
21: Output O1+ PSSu BP 1/8 C PSSu BP 1/8 C-T 12: Output O0- 22: Output O1- 13-23: Shield connection (13-23 linked within the base module) 14: Input I0 24: 0 V analogue Operating Manual PSSu E AI SHT2 1003113-EN-02... - Page 21 22: Output O1- 13-23: Shield connection (13-23-16-26 linked within the base module) 14: Input I0 24: 0 V analogue 15: Output O0- 25: Output O1- 16-26: Shield connection (13-23-16-26 linked within the base module) Operating Manual PSSu E AI SHT2 1003113-EN-02...
- Page 22 13-23: C-rail supply, shield connection (13-23-16-26 linked within the base module) 14: Input I0 24: 0 V analogue 15: Output O0- 25: Output O1- 16-26: C-rail supply, shield connection (13-23-16-26 linked within the base module) Operating Manual PSSu E AI SHT2 1003113-EN-02...
-
Page 23: Connecting The Module
Input circuit Current range 0 ... 0.2 A single-pole, referenced to earth n.c. n.c. PSSu E F AI I n.c. n.c. PSSu E AI SHT1 PSSu E F AI I E AI SHT2 Operating Manual PSSu E AI SHT2 1003113-EN-02... -
Page 24: Technical Details
In accordance with the standard EN 60068-2-30, EN 60068-2-78 93 % r. h. at 40 °C Humidity Condensation during operation Not permitted EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-6-2, EN 61000-6-4 Operating Manual PSSu E AI SHT2 1003113-EN-02... - Page 25 Coding Mounting type plug-in Dimensions Height 76,0 mm Width 12,6 mm 60,2 mm Depth Weight 29 g Mechanical coding Type Colour Light grey Where standards are undated, the 2009-10 latest editions shall apply. Operating Manual PSSu E AI SHT2 1003113-EN-02...
-
Page 26: Order Reference
Base module without C-rail with cage clamp terminals 312 619 PSSu BP-C 1/12 S Base module with C-rail and screw terminals 312 620 PSSu BP-C 1/12 C Base module with C-rail and cage clamp terminals 312 621 Operating Manual PSSu E AI SHT2 1003113-EN-02... - Page 27 Front cover Support Technical support is available from Pilz round the clock. Americas Australia Scandinavia Brazil +61 3 95446300 +45 74436332 +55 11 97569-2804 Spain Canada Europe +34 938497433 +1 888-315-PILZ (315-7459) Austria Switzerland +41 62 88979-30 Mexico +43 1 7986263-0...
