Technician's instructions KaVo ARCTICA Engine
2 Dismounting and mounting the ARCTICA Engine | 2.2 Dismount and mount the left side panel

2.2 Dismount and mount the left side panel

Dismounting
▶ Switch off the machine and disconnect from the power supply.
▶ Remove the network cable, power supply cable, and control cable of the
handpiece or foot control from the electronics box.

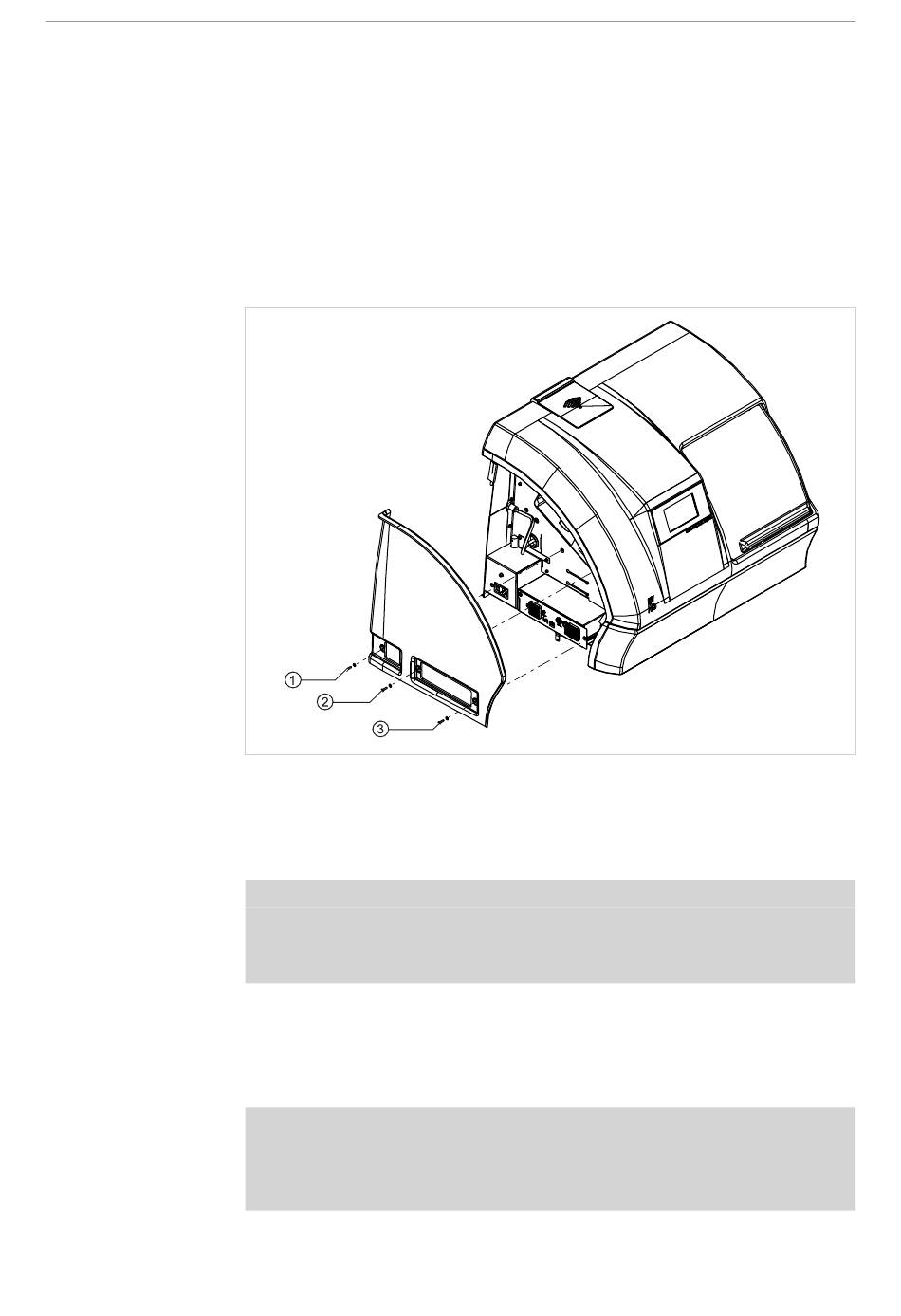

▶ Remove the Allen screws with the universal tool (Mat. no. 1.009.0859) SW 2.5
① to ③.
▶ Carefully remove the side panel.
Mounting
Note
The housing may be damaged if excessive torque is used during installation.
▶ Tighten the housing screws to be hand-tight only.
▶ Turn the screws 10 times to tighten them.
▶ To mount the side panel, proceed in reverse order.

2.3 Dismount and mount the housing

Note
Damage to parts of the housing due to display cable being connected.
▶ Pull the housing upwards only after detaching the display cable from the
electronics box.
