2.4 Exchanging the touchscreen

Dismounting

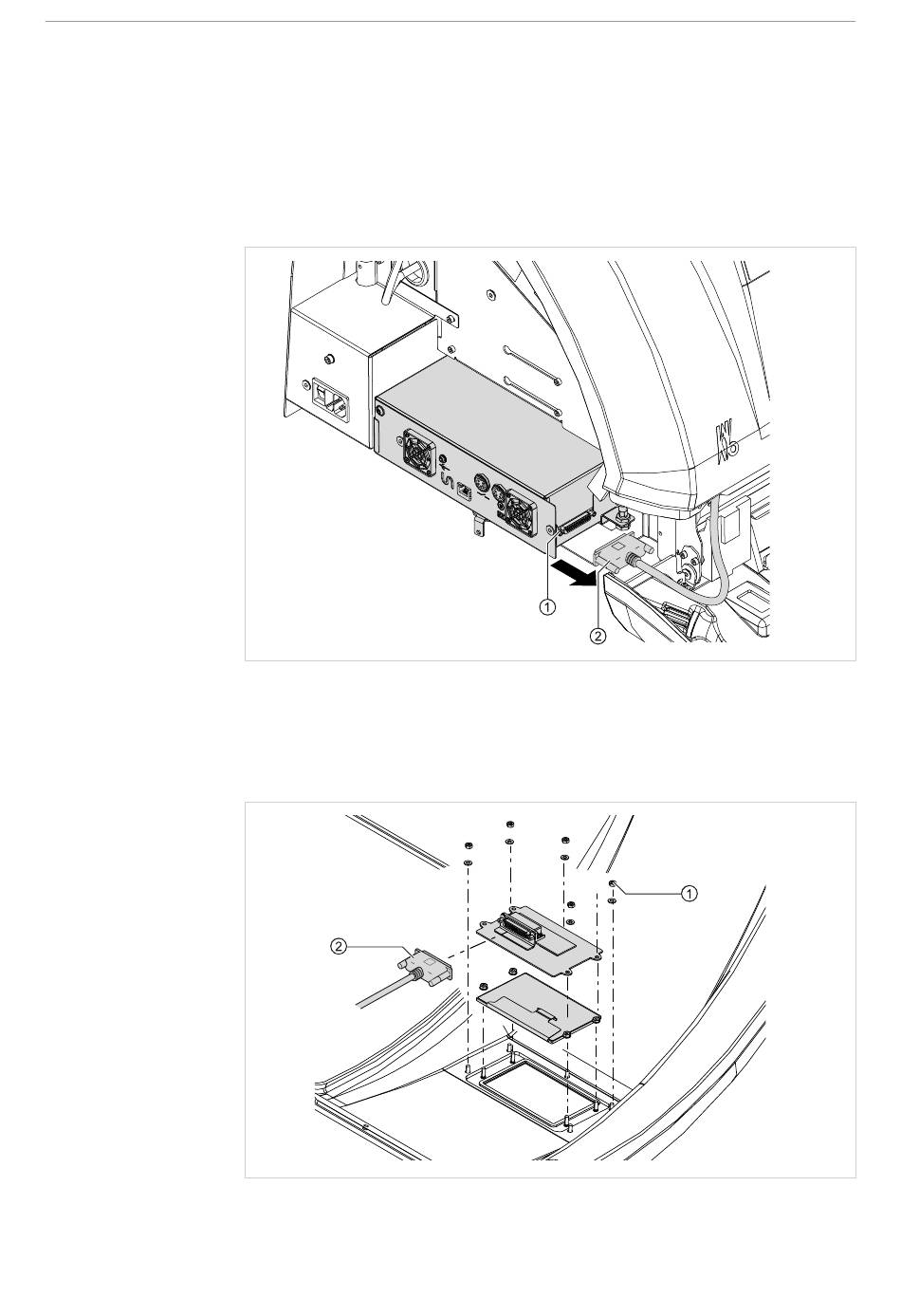

▶ Remove the connection cable of the touch screen ① from the electronics box
②. For this purpose, undo the two screws on the plug.
Dismount the touchscreen from the inside of the housing.
▶ Disconnect the electronics box ② from the display.
▶ Remove the nuts ① and take off the display.
