Summary of Contents for KaVo ARCUSevo

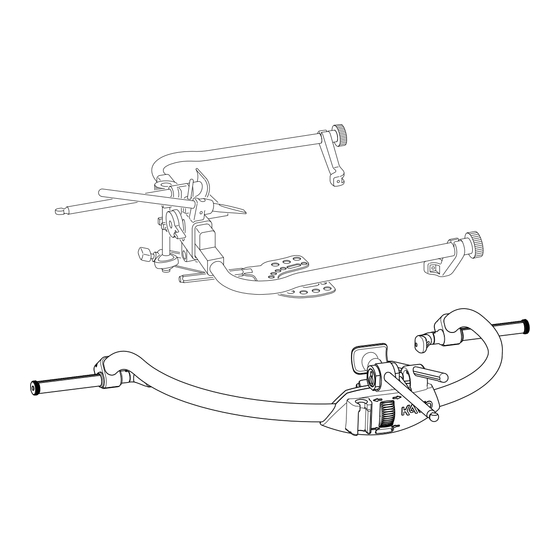

- Page 1 Instructions for use ARCUSevo - 1.005.0900 / ARCUS - 0.622.5000...
- Page 2 Distributed by: Manufacturer: KaVo Dental GmbH Kaltenbach & Voigt GmbH Bismarckring 39 Bismarckring 39 88400 Biberach 88400 Biberach Germany Germany Phone +49 (0) 7351 56-0 www.kavo.com Fax +49 (0) 7351 56-1488...
-
Page 3: Table Of Contents
Instructions for use ARCUSevo - 1.005.0900 / ARCUS - 0.622.5000 Contents Contents 1 User instructions ........................ 5 1.1 User guide ........................5 1.1.1 Abbreviations..................... 1.1.2 Symbols......................1.1.3 Target group ..................... 1.2 Service ......................... 5 1.3 Warranty provisions....................... 6 1.4 Transportation and storage..................... 6 1.4.1... - Page 4 Instructions for use ARCUSevo - 1.005.0900 / ARCUS - 0.622.5000 Contents 5.5 Storage ........................24 6 Accessories ......................... 25 7 Spare parts sheet ....................... 26 4 / 30...
-
Page 5: User Instructions
Instructions for use ARCUSevo - 1.005.0900 / ARCUS - 0.622.5000 1 User instructions | 1.1 User guide 1 User instructions 1.1 User guide Requirement Read these instructions prior to first startup to avoid misuse and prevent dam- age. 1.1.1 Abbreviations... -
Page 6: Warranty Provisions
12 months from the date of the invoice, subject to the following conditions: In case of justified claims, KaVo will honour its warranty with a free replace- ment or repair. Other claims of any kind whatsoever, in particular with respect to compensation, are excluded. -
Page 7: Information On The Packaging: Storage And Transportation
Instructions for use ARCUSevo - 1.005.0900 / ARCUS - 0.622.5000 1 User instructions | 1.4 Transportation and storage 4. Report the damage to the shipping company. 5. Report the damage to KaVo. 6. Consult with KaVo first, before returning a damaged product. - Page 8 Instructions for use ARCUSevo - 1.005.0900 / ARCUS - 0.622.5000 1 User instructions | 1.4 Transportation and storage The symbols printed on the outside are for transportation and storage, and have the following meaning: Transport upright with the arrows pointing upwards!
-
Page 9: Safety
The functional safety and proper condition of the device must be checked be- fore each use of the device. This KaVo product is intended for use in dentistry only. Any other type of use is not permitted. 9 / 30... - Page 10 The overarching guidelines and/or national laws, national regulations and the rules of technology applicable to medical devices for startup and use of the KaVo product for the intended indications for use must be applied and followed. KaVo accepts liability for the safety, reliability, and performance of components supplied by KaVo, provided: ▪...
-
Page 11: Product-Specific
Instructions for use ARCUSevo - 1.005.0900 / ARCUS - 0.622.5000 2 Safety | 2.3 Safety Instructions 2.2.2 Product-specific The ARCUSevo / ARCUS facial bow records the position of the patient's maxilla. When creating a prosthesis, a working or tooth model can be correctly posi- tioned in an articulator. - Page 12 Instructions for use ARCUSevo - 1.005.0900 / ARCUS - 0.622.5000 2 Safety | 2.3 Safety Instructions CAUTION Bruising at the ear Injuries ▶ Before you place the facial bow, set a sufficient distance considering the head size of the patient. Carefully place the earbuds in the auditory canals and fix them without injuring the patient.
-
Page 13: Product Description
Instructions for use ARCUSevo - 1.005.0900 / ARCUS - 0.622.5000 3 Product description | 3.1 Scope of delivery 3 Product description 3.1 Scope of delivery Figure Name Facial bow ARCUSevo / ARCUS incl. Earbuds Nose support Reference pointer Bite fork support... -
Page 14: Arcusevo
Instructions for use ARCUSevo - 1.005.0900 / ARCUS - 0.622.5000 3 Product description | 3.2 ARCUSevo 3.2 ARCUSevo ① Bow ② Fastening nut for the earbud ③ Earbud ④ Nose support ⑤ Lock lever for the nose support ⑥ Reference pointer for the Frank-... -
Page 15: Arcus
Instructions for use ARCUSevo - 1.005.0900 / ARCUS - 0.622.5000 3 Product description | 3.3 ARCUS 3.3 ARCUS ① Arch ② Earbuds ③ Fastening nuts for earbuds ④ Nose support ⑤ Lock lever for the nose support ⑥ Reference pointer for FH + CP ⑦... - Page 16 Instructions for use ARCUSevo - 1.005.0900 / ARCUS - 0.622.5000 3 Product description | 3.4 Technical data Information on the planes and reference points Frankfurter horizontal ② (FH): Connection between the infraorbital point ① and porion ③ Camper's plane ⑤ (CP): Connection between the subnasal point ④...
-
Page 17: Operation
Instructions for use ARCUSevo - 1.005.0900 / ARCUS - 0.622.5000 4 Operation | 4.1 ARCUSevo 4 Operation 4.1 ARCUSevo 4.1.1 Adapting the facial bow ARCUSevo ▶ Turn the adjustment wheel ③. ð The earbuds ② move further apart. The bow ① can be placed on the pa- tient. - Page 18 Instructions for use ARCUSevo - 1.005.0900 / ARCUS - 0.622.5000 4 Operation | 4.1 ARCUSevo ▶ Adapt the bow ⑥ to the width of the patient's face. ▶ Insert the earbuds ⑦ into the outer auditory channel of the patient.
-
Page 19: Removing The Facial Bow
Instructions for use ARCUSevo - 1.005.0900 / ARCUS - 0.622.5000 4 Operation | 4.1 ARCUSevo ① Guide pins of the bite fork support ② Guide groove of the facial bow 4.1.3 Removing the facial bow ▶ Open the lock lever ④ of the nose support ③, push back the nose support ③... -
Page 20: Arcus
Instructions for use ARCUSevo - 1.005.0900 / ARCUS - 0.622.5000 4 Operation | 4.2 ARCUS 4.2 ARCUS 4.2.1 Adapting the facial bow ARCUS ▶ Open the clamping lever ⑦ and open up the bow ①. ð The bow ① can be placed on the patient. - Page 21 Instructions for use ARCUSevo - 1.005.0900 / ARCUS - 0.622.5000 4 Operation | 4.2 ARCUS ▶ Slide together the bow ① to the facial width of the patient and insert the earbuds ② of the bow ① in the outer auditory canal of the patient. Close the clamping lever ⑦...
-
Page 22: Removing The Facial Bow
Instructions for use ARCUSevo - 1.005.0900 / ARCUS - 0.622.5000 4 Operation | 4.2 ARCUS ▶ Fix the bite fork ⑪ in place by tightening the knurled screw ⑩. 4.2.3 Removing the facial bow ▶ Open the lock lever ⑤ of the nose support, push back the nose support ④... -
Page 23: Reprocessing Steps In Accordance With Din En Iso 17664
Instructions for use ARCUSevo - 1.005.0900 / ARCUS - 0.622.5000 5 Reprocessing steps in accordance with DIN EN ISO 17664 | 5.1 Cleaning 5 Reprocessing steps in accordance with DIN EN ISO 17664 NOTICE Cleaning with solvents or aggressive chemicals. -
Page 24: Automated Disinfection
Instructions for use ARCUSevo - 1.005.0900 / ARCUS - 0.622.5000 5 Reprocessing steps in accordance with DIN EN ISO 17664 | 5.3 Packaging ▶ Disinfect the following components by wipe disinfection: Bite fork, complete Nose support Earbuds Pointer GB nasal support pad 5.2.2 Automated disinfection... - Page 25 Instructions for use ARCUSevo - 1.005.0900 / ARCUS - 0.622.5000 6 Accessories 6 Accessories Hinge axis pointer (ARCUSevo only) Mat. no. 1.004.7640 25 / 30...
- Page 26 Instructions for use ARCUSevo - 1.005.0900 / ARCUS - 0.622.5000 7 Spare parts sheet | 5.5 Storage 7 Spare parts sheet Verk.-Nr. Gesichtsbogen ARCUSevo 1.005.0900 1.004.7623 0.622.2992 1.004.7637 0.622.0921 0.622.0901 1.004.7638 0.622.0911 Zubehör 1.004.7640 26 / 30...
- Page 27 Instructions for use ARCUSevo - 1.005.0900 / ARCUS - 0.622.5000 7 Spare parts sheet | 5.5 Storage Verk.-Nr. Gesichtsbogen ARCUS 0.622.5000 0.622.2852 0.258.6006 0.622.2882 0.622.0921 0.622.2992 0.622.2932 0.622.2892 0.622.0911 0.258.6006 0.622.2842 0.622.0901 27 / 30...
