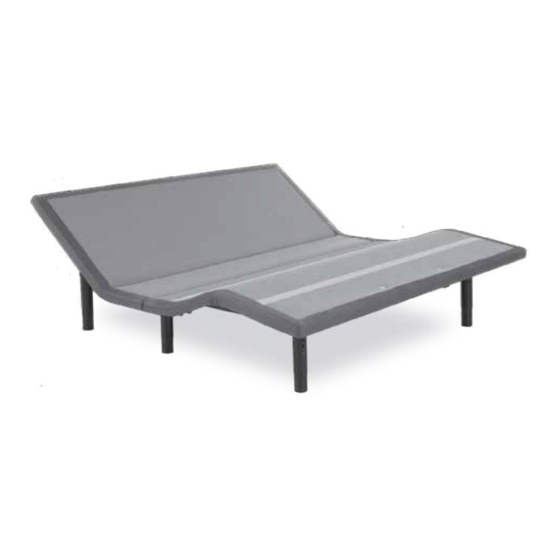

Falcon 2.0 Foldable
n QUEEN
n K/CK

Advertisement

loading
Need help?

Need help?

Do you have a question about the Falcon 2.0 Foldable and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Leggett & Platt Falcon 2.0 Foldable

Summary of Contents for Leggett & Platt Falcon 2.0 Foldable

  • Page 1 Falcon 2.0 Foldable n QUEEN n K/CK...

  • Page 2: Table Of Contents

    CONTENTS Advisory ........................4 Installation ......................... 6 Remote Control Function .................... 11 Remote Control Programming ..................12 Power Down Operation ....................15 Troubleshooting ......................18 Accessories ....................... 19 Warranty ........................20 READ ALL INSTRUCTIONS BEFORE USING If adjustable base does not operate or if parts are missing, call: (800) 888-3078 Do not contact retail store or dealer.

  • Page 3: Advisory

    ADVISORY IMPORTANT INFORMATION READ THE FOLLOWING INFORMATION CAREFULLY BEFORE USING THIS PRODUCT READ ALL INSTRUCTIONS BEFORE USING PRODUCT RATINGS The base lift motors are not designed for continuous use. Reliable operation and full life expectancy will be realized as long as the lift motor operation WARNING WARNING does not exceed two (2) minutes over a twenty (20)
  • Page 4 ADVISORY IMPORTANT INFORMATION READ THE FOLLOWING INFORMATION CAREFULLY BEFORE USING THIS PRODUCT SMALL CHILDREN / PETS WARNING FCC COMPLIANCE After the base is unboxed, immediately dispose The equipment has been tested and found to of packaging material as it can smother small comply with the limits for a Class B digital device, children and pets.

  • Page 5: Installation

    INSTALLATION For installation and setup of the adjustable base, complete the following procedures, in the order indicated below and on the following pages. READ ALL INSTRUCTIONS BEFORE USING STEP 1 Place adjustable base shipping container on solid, level surface. Remove top section of shipping container. WARNING WARNING Remove packing material.
  • Page 6 INSTALLATION STEP 2 Align lower holes at hinge. On each side of base, insert bolt through hole (in opposite direction of existing bolt) (FIGURE 1). FIGURE 1 EXISTING BOLT LINE UP HOLES IN HINGE BOLT – INSERT IN OPPOSITE DIRECTION TO EXISTING BOLT STEP 3 Insert captive pins into bolts to secure bolts (FIGURE 2).
  • Page 7 INSTALLATION STEP 4 FIGURE 3 Install (4) legs into the tapped fittings at the four corners of the base frame (FIGURE 3). Install (2) legs LEGS – SCREW at the hinge area (FIGURE 4). Note: Install the (2) legs INTO TAPPED HOLE AT at the hinge (in diagonal position across the center EACH CORNER...
  • Page 8 INSTALLATION STEP 6 READ ALL INSTRUCTIONS BEFORE USING Gently rotate over so base is resting on its legs. STEP 7 WARNING WARNING Briefly activate all functions of the base with the remote control to verify all features are in working DUE TO RISK OF INJURY, TWO ADULTS order.
  • Page 9 INSTALLATION STEP 11 Install mattress retainer at the foot end of the adjustable base as follows: a. Locate grommeted holes at foot end of base. b. Place mattress retainer ends into grommeted holes in top surface of adjustable base (FIGURE 6). Press down until horizontal retainer section is flush against base.

  • Page 10: Remote Control Function

    REMOTE CONTROL FUNCTION HEAD UP BUTTON FOOT UP BUTTON Press and hold to raise the Press and hold to raise the head section. foot section. HEAD DOWN BUTTON FOOT DOWN BUTTON Press and hold to lower the Press and hold to lower the head section.

  • Page 11: Remote Control Programming

    REMOTE CONTROL PROGRAMMING Program One Remote to Operate Two Bases - Bases Program One Remote to Operate One Base - Bases are factory programmed to operate individual are factory programmed to operate as one remote bases. To program one remote to operate both control to one base.
  • Page 12 REMOTE CONTROL PROGRAMMING Program Two Remotes to Operate One Base - Bases Program Two Remotes to Operate Two Bases - are factory programmed to operate individual Bases are factory programmed to operate individual bases. To program two remotes to operate one bases.
  • Page 13 REMOTE CONTROL PROGRAMMING Reprogram Two Remote Controls for Individual Base Operation - Bases are factory programmed to operate individual bases. To reprogram bases synced to multiple remote controls, perform the following numbered procedure. Individual base BASE 1 operation will result. If programming fails, initiate REMOTE CONTROL 1 the programming procedure a second time.

  • Page 14: Power Down Operation

    POWER DOWN OPERATION To lower base to the flat position during an electrical power outage, complete the following procedure: NOTE FOR EMERGENCY USE ONLY. BATTERIES ARE NOT TO BE USED FOR NORMAL OPERATION OF BASE (9-VOLT ALKALINE BATTERIES NOT INCLUDED) STEP 1 Verify power supply is unplugged from electrical power source.
  • Page 15 POWER DOWN OPERATION STEP 4 Push tab in on control box connection cord and pull out to remove control box connection cord from power supply “brick” (FIGURE 9). FIGURE 9 POWER SUPPLY “BRICK” CONTROL BOX CONNECTION CORD STEP 5 Connect control box connection cord to power down device (FIGURES 10 and 11).
  • Page 16 POWER DOWN OPERATION FIGURE 11 CONTROL BOX CONNECTION CORD CONNECTED TO POWER DOWN DEVICE STEP 6 Press the FLAT BUTTON on the remote control until the base is in the flat position. BASE WILL MOVE TO THE FLAT POSITION VERY SLOWLY.

  • Page 17: Troubleshooting

    TROUBLESHOOTING In the event the adjustable base fails to operate, investigate the symptoms and possible solutions provided in the chart below: SOLUTION SYMPTOM Remote Control Programming section of this manual for programming procedures). reset electronic components. electrical service breaker box to verify. No features of the base will activate.

  • Page 18: Accessories

    ACCESSORIES OPTIONAL EQUIPMENT Contact customer service toll free (800-888-3078) to order the accessories indicated in the chart below. ACCESSORY DESCRIPTION CODE IMAGE Head Board Brackets 4B9245 Y-120 K/CK Adjustable Base Owners Manual 290-0089...

  • Page 19: Warranty

    1 YEAR, 3 YEAR AND 25 YEAR LIMITED WARRANTY In this warranty: “Adjustable base” means the adjustable bed foundation sold by L&P to the dealer. The “adjustable base” does not include the mattress. “L&P” means Leggett & Platt, Incorporated. “Purchaser” and “You” both mean the consumer who is the original purchaser of this adjustable base made by L&P.
  • Page 20 1 YEAR, 3 YEAR AND 25 YEAR LIMITED WARRANTY Repair or replacement shall be the sole remedy of the L&P makes no other warranty whatever, express or Purchaser. There shall be no liability on the part of L&P implied, and all implied warranties of merchantability and for any special, indirect, incidental, or consequential fitness for a particular purpose are disclaimed by L&P and damages or for any other damage, claim, or loss not...
  • Page 21 290-0089 EDR14415 1/18 NATIONWIDE CUSTOMER SERVICE (800) 888-3078 toll free: © 2018 Leggett & Platt Adjustable Bed Group, a division of Leggett & Platt Incorporated...
