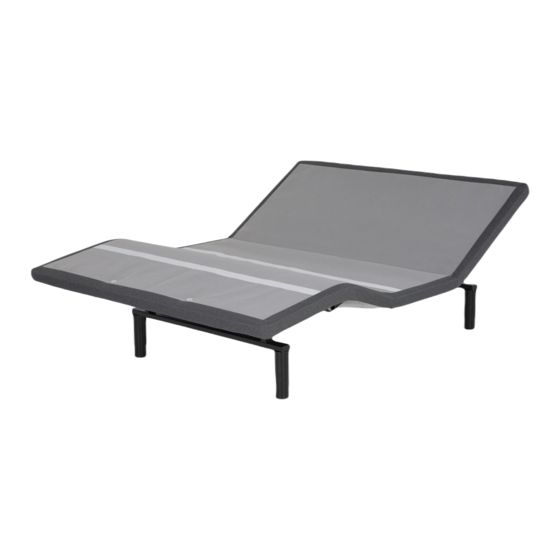

owners manual
Falcon
2.0+
™
Y-120
LPAdjustableBases.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Falcon 2.0+ and is the answer not in the manual?

Questions and answers

Related Manuals for Leggett & Platt Falcon 2.0+

Summary of Contents for Leggett & Platt Falcon 2.0+

  • Page 1 owners manual Falcon 2.0+ ™ Y-120 LPAdjustableBases.com...

  • Page 3: Table Of Contents

    CONTENTS Advisory ........................4 Acoustics ........................6 Installation ......................... 7 Remote Control Function .................... 11 Remote Control Programming ..................12 Power Down Operation ....................15 Troubleshooting ......................18 Accessories ....................... 19 Warranty ........................20 If adjustable base does not operate or if parts are missing, call: (800) 888-3078...

  • Page 4: Advisory

    ADVISORY IMPORTANT INFORMATION READ THE FOLLOWING INFORMATION CAREFULLY BEFORE USING THIS PRODUCT READ ALL INSTRUCTIONS BEFORE USING PRODUCT RATINGS The base lift motors are not designed for continuous use. Reliable operation and full life expectancy will be realized as long as the lift motors do not operate any more than five (5) minutes over a thirty (30) minute period, or approximately 15% duty cycle.
  • Page 5 ADVISORY IMPORTANT INFORMATION READ THE FOLLOWING INFORMATION CAREFULLY BEFORE USING THIS PRODUCT SMALL CHILDREN / PETS WARNING FCC COMPLIANCE After the base is unboxed, immediately dispose of The equipment has been tested and found to packaging material as it can smother small children comply with the limits for a Class B digital device, and pets.

  • Page 6: Acoustics

    ACOUSTICS LIFTING/LOWERING MECHANISMS LOCATION ENVIRONMENT The lift/lower feature will emit a minimal humming The level of sound experienced during operation sound during operation. This is normal. is directly related to the location environment. For example, when a base is located on a hardwood floor During operation, the lift arm wheels make contact with the massage feature in operation, a vibrating with the platform support of the base.

  • Page 7: Installation

    INSTALLATION For installation and setup, complete the numbered procedure indicated below and on the following pages: STEP 1 Before discarding any packing materials, check the base shipping carton and verify the following items are included: WARRANTY ACTIVATION CARD (batteries not included) OWNERS MANUAL QUICK SETUP GUIDE MATTRESS...
  • Page 8 INSTALLATION STEP 2 READ ALL INSTRUCTIONS BEFORE USING Uncoil the main power cord and extend it out head end of base, then remove the hardware box from WARNING WARNING shipping container. Cut the zip-tie and remove the mattress retainer. POWER CORDS MUST NOT INTERFERE STEP 3 WITH ANY ADJUSTABLE BASE Install (4) legs into the base frame.
  • Page 9 INSTALLATION STEP 6 Plug electrical power cord into a working, grounded electrical outlet. Note: An electrical surge protection device is recommended (not included). STEP 7 Briefly activate all functions of the base with the remote control to verify all features are in working order. If base does not operate, refer to the Troubleshooting section of this manual.
  • Page 10 INSTALLATION STEP 9 Install mattress retainers at the foot end of the adjustable base as follows: a. Locate grommeted holes at foot of base (FIGURE 3). b. Place mattress retainer ends into grommeted holes in top surface of adjustable base (FIGURE 3). Press down until horizontal retainer section is flush against base.

  • Page 11: Remote Control Function

    FALCON™ 2.0+ REMOTE CONTROL FUNCTION HEAD UP BUTTON FOOT UP BUTTON Press and hold to raise the Press and hold to raise the head section. foot section. HEAD DOWN BUTTON FOOT DOWN BUTTON Press and hold to lower the Press and hold to lower the head section.

  • Page 12: Remote Control Programming

    FALCON™ 2.0+ REMOTE CONTROL PROGRAMMING Program One Remote to Operate Two Bases - Bases Program One Remote to Operate One Base - Bases are factory programmed to operate individual are factory programmed to operate as one remote bases. To program one remote to operate both control to one base.
  • Page 13 FALCON™ 2.0+ REMOTE CONTROL PROGRAMMING Program Two Remotes to Operate One Base - Bases Program Two Remotes to Operate Two Bases - are factory programmed to operate individual Bases are factory programmed to operate individual bases. To program two remotes to operate one bases.
  • Page 14 FALCON™ 2.0+ REMOTE CONTROL PROGRAMMING Reprogram Two Remote Controls for Individual Base Operation - Bases are factory programmed to operate individual bases. To reprogram bases synced to multiple remote controls, perform the following numbered procedure. Individual base operation will result. If programming fails, initiate BASE 1 REMOTE CONTROL 1 the programming procedure a second time.

  • Page 15: Power Down Operation

    POWER DOWN OPERATION To lower base to the flat position during an electrical power outage, complete the following procedure: NOTE FOR EMERGENCY USE ONLY. BATTERIES ARE NOT TO BE USED FOR NORMAL OPERATION OF BASE (9-VOLT ALKALINE BATTERIES NOT INCLUDED) STEP 1 Verify power supply is unplugged from electrical power source.
  • Page 16 POWER DOWN OPERATION STEP 4 Push tab in on control box connection cord and pull out to remove control box connection cord from power supply “brick” (FIGURE 6). FIGURE 6 POWER SUPPLY “BRICK” CONTROL BOX CONNECTION CORD STEP 5 Connect control box connection cord to power down device (FIGURES 7 and 8).
  • Page 17 POWER DOWN OPERATION FIGURE 8 CONTROL BOX CONNECTION CORD CONNECTED TO POWER DOWN DEVICE STEP 6 Press the FLAT BUTTON on the remote control until the base is in the flat position. BASE WILL MOVE TO THE FLAT POSITION VERY SLOWLY.

  • Page 18: Troubleshooting

    TROUBLESHOOTING If the adjustable base fails to operate, investigate the symptoms and possible solutions provided in the chart below: SOLUTION SYMPTOM electrical outlet. A grounded, electrical surge protection device is recommended. Test outlet by plugging in another working appliance. Remote control illuminates and appears to be operable, but will not activate base.

  • Page 19: Accessories

    ACCESSORIES OPTIONAL EQUIPMENT Contact customer service toll free (800-888-3078) to order the accessories indicated in the chart below. ACCESSORY DESCRIPTION CODE IMAGE 4B2385 (set of 4, replaces legs) 3” Legs 4B2284 (set of 4) 4” Legs 4B1833 (set of 4) 5”...

  • Page 20: Warranty

    1 YEAR, 3 YEAR AND 25 YEAR LIMITED WARRANTY In this warranty: “Adjustable base” means the adjustable bed foundation sold by L&P to the dealer. The “adjustable base” does not include the mattress. “L&P” means Leggett & Platt, Incorporated. “Purchaser” and “You” both mean the consumer who is the original purchaser of this adjustable base made by L&P.
  • Page 21 1 YEAR, 3 YEAR AND 25 YEAR LIMITED WARRANTY Repair or replacement shall be the sole remedy of the L&P makes no other warranty whatever, express or Purchaser. There shall be no liability on the part of L&P implied, and all implied warranties of merchantability and for any special, indirect, incidental, or consequential fitness for a particular purpose are disclaimed by L&P and damages or for any other damage, claim, or loss not...
  • Page 24 290-0009-b EDR13XXX 1/17 NATIONWIDE CUSTOMER SERVICE (800) 888-3078 toll free: © 2017 Leggett & Platt Adjustable Bed Group, a division of Leggett & Platt Incorporated...
