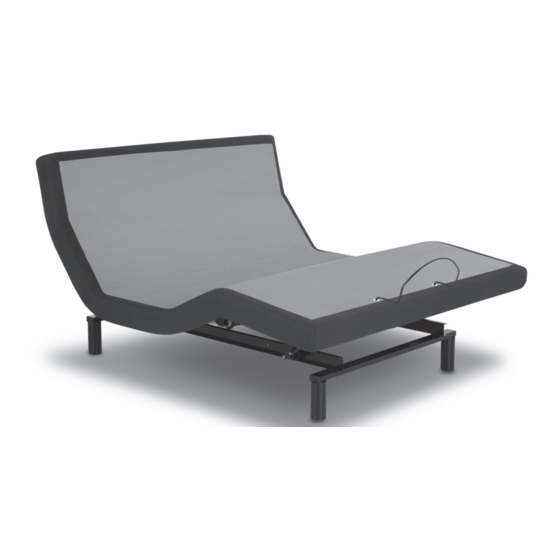

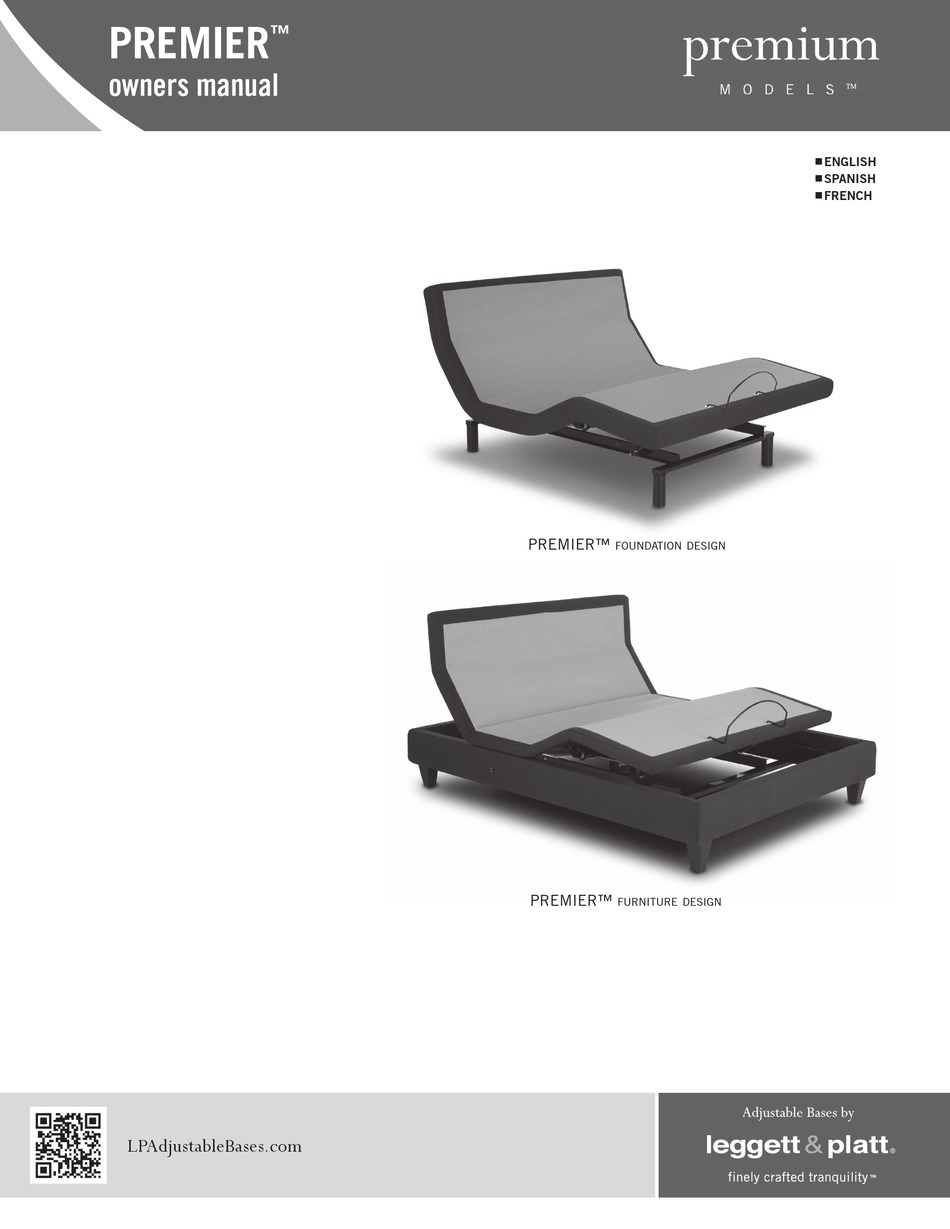

- Page 1 PREMIER ™ owners manual ENGLISH SPANISH FRENCH PREMIER™ FOUNDATION DESIGN PREMIER™ FURNITURE DESIGN LPAdjustableBases.com...
-
Page 3: Table Of Contents
CONTENTS CONTENTS Advisory ........................4 LP Sense Technology ....................6 ® Acoustics ........................7 Fabric Cleaning Information ..................7 Installation ......................... 8 USB / Power Outlets ....................21 Remote Control Function .................... 22 Remote Control Programming ..................23 Troubleshooting ......................26 Accessories ....................... -
Page 4: Advisory
ADVISORY IMPORTANT INFORMATION READ THE FOLLOWING INFORMATION CAREFULLY BEFORE USING THIS PRODUCT PRODUCT RATINGS The base lift motors are not designed for continuous use. Reliable operation and full life expectancy will be realized as long as FOR OPTIMUM ADJUSTABLE BASE the lift motor operation does not exceed five OPERATION, USE A GROUNDED, ELECTRICAL (5) minutes over a fifty (50) minute period,... - Page 5 ADVISORY IMPORTANT INFORMATION READ THE FOLLOWING INFORMATION CAREFULLY BEFORE USING THIS PRODUCT SMALL CHILDREN / PETS WARNING PINCH POINT WARNING After the base is unboxed, immediately dispose of packaging material as it can smother small children and pets. To avoid injury, children or pets should not be allowed to play under or on DURING BASE OPERATION, GAPS (PINCH the base.
-
Page 6: Lp Sense ® Technology
LP Sense TECHNOLOGY ® IMPORTANT INFORMATION READ THE FOLLOWING INFORMATION CAREFULLY BEFORE USING THIS PRODUCT LP Sense TECHNOLOGY ® FIGURE 3 TYPICAL LP Sense ® CONTACT POINTS (entire perimeter of upholstered surround on Furniture Design) The Premier Furniture Design is equipped ™... -
Page 7: Acoustics
ACOUSTICS LIFTING/LOWERING MECHANISMS LOCATION ENVIRONMENT The lift/lower feature will emit a minimal The level of sound experienced during humming sound during operation. This is operation is directly related to the location normal. environment. For example, when a base is located on a hardwood floor with the massage During operation, the lift arm wheels make feature in operation, a vibrating tone will be contact with the platform support of the base. -
Page 8: Installation
INSTALLATION For installation and setup, complete the following procedures, in the order indicated below and on the following pages: STEP 1 Before discarding any packing materials, check the adjustable base shipping carton and verify the following items are included: BEDROOM ACCESSORY BEDROOM ACCESSORY •... - Page 9 INSTALLATION STEP 2 With packing carton still on adjustable base (with WARNING bottom of base exposed), install 4 legs. Simply screw each leg (wood or steel) into a tapped hole at each corner of the base frame (FIGURES 4 and 5). AT LEAST TWO PEOPLE ARE Note: Allowing base to remain in packing carton will RECOMMENDED FOR HANDLING AND...
- Page 10 INSTALLATION STEP 3 Install (2) 9 volt batteries (not included) in power down battery compartment. a. Locate the power down battery compartment, attached to the control box (FIGURE 6). b. Squeeze in on the side tabs and lift to remove battery compartment (FIGURE 6).
- Page 11 INSTALLATION STEP 4 Remove and extend out power cord from the protective packaging. Plug power cord into power supply (FIGURE 8). Note: Do NOT plug power supply into working, grounded electrical power outlet yet. FIGURE 8 POWER CORD POWER SUPPLY ! IMPORTANT ! WARNING IF YOU ARE SETTING UP A KING SIZE...
- Page 12 INSTALLATION STEP 6 Plug base into a working, grounded electrical power source (FIGURE 10), making sure to avoid making contact with the surround at that time, as this will trip LP Sense . Note: An electrical surge protection device is recommended ®...
- Page 13 INSTALLATION STEP 9 Install mattress retainer at the foot end of the adjustable base as follows: a. Locate grommeted holes at foot of base. b. Place mattress retainer ends into grommeted holes in top surface of adjustable base (FIGURE 11). Press down until horizontal retainer section is fl ush against base.
- Page 14 INSTALLATION HEADBOARD BRACKET INSTALLATION NOTE FAILURE TO FOLLOW HEADBOARD BRACKET INSTALLATION INSTRUCTIONS MAY CAUSE HEADBOARD BRACKET INTERFERENCE WITH BASE FOAM DURING BASE OPERATION. BASE FOAM OR BASE COVER DAMAGE COULD RESULT. WARNING IN ORDER TO AVOID A PERSON OR PET BEING CAUGHT IN THE SPACE REFERENCED BELOW WHILE THE BASE IS IN MOTION, THE BOTTOM OF THE HEADBOARD CROSS MEMBER MUST...
- Page 15 INSTALLATION STEP 10a (for Furniture Design bases) Install headboard brackets to the adjustable base frame as follows: a. Using the remote control, raise the head section of the base as far as it will articulate to gain access to the adjustable base frame. b.
- Page 16 INSTALLATION c. Locate (2) slotted holes in base frame at one corner of head end of base. Place the headboard bracket weldment underneath base frame and against the head end of the base, positioning the bracket weldment so the carriage bolt appears through the innermost slotted hole in the base frame (FIGURE 14).
- Page 17 INSTALLATION d. Place headboard flange weldment against headboard bracket weldment. Install (2) 1” long hex bolts through slots in headboard bracket weldment and holes in headboard flange weldment (FIGURE 15). Secure using (2) hex nuts. Loosely tighten to allow adjustment for headboard hole alignment. FIGURE 15 HEADBOARD BRACKET...
- Page 18 INSTALLATION h. Measure the center-to-center distance between the mounting slots of the headboard bracket flanges (FIGURE 17). i. If bracket flange adjustment is required to accept the headboard, remove the 1 inch long hex head bolts and move flanges side-to-side for the adjustment (FIGURE 17).
- Page 19 INSTALLATION STEP 10b (for Foundation Design bases) Install headboard brackets to the adjustable base frame as follows: a. Using the remote control, raise the head section of the base as far as it will articulate to gain access to the adjustable base frame. b.
- Page 20 INSTALLATION c. Attach one headboard bracket fl ange to one of the bracket channels with (2) hex head bolts/nuts (FIGURE 19). Tighten bolts. Repeat procedure to attach the other headboard bracket fl ange. d. Slide headboard bracket assemblies (in or out) to achieve a distance of 1.5 inches (38.1mm) to 2 inches (50.8mm) between the edge of the base and headboard bracket fl ange assemblies (FIGURE 19).
-
Page 21: Usb / Power Outlets
USB / POWER OUTLET USB / POWER OUTLET The Furniture Design bases are equipped with working USB and power outlets located on either side of the base that allow you to charge low voltage electronic devices such as cell phones, tablets, and/or laptops directly from the base (FIGURE 20). -
Page 22: Remote Control Function
REMOTE CONTROL FUNCTION UNDERBED LIGHT DECREASE BUTTON (+) UNDERBED LIGHT ON BUTTON Press and hold the decrease Press in the center of the button to button until light goes off. Press turn underbed light on at medium and release to decrease brightness brightness. -
Page 23: Remote Control Programming
REMOTE CONTROL PROGRAMMING (1 remote control - 1 base) Program One Remote to Operate One Base - perform the following numbered procedure. STEP 1 Position base on its side. CAUTION: AT LEAST TWO PEOPLE ARE RECOMMENDED FOR HANDLING AND MOVING ADJUSTABLE Locate the control box, attached to the BASE. - Page 24 REMOTE CONTROL PROGRAMMING (1 or 2 remote controls - 2 bases) Program One Remote to Operate Two Bases (Tandem Syncing) - perform the following numbered procedure. STEP 1 BASE 1 Choose base 1 remote. Retain base 2 remote control as a spare or use if 2 remotes are desired to operate both bases.
- Page 25 REMOTE CONTROL PROGRAMMING (1 or 2 remote controls - 2 bases) STEP 6 Using a pointed object, press and hold the learn button for two seconds (FIGURE 26). The underbed light will “chirp” once to indicate base is in pairing mode.
-
Page 26: Troubleshooting
TROUBLESHOOTING TROUBLESHOOTING In the event the adjustable base fails to operate, investigate the symptoms and possible solutions provided in the chart below: SOLUTION SYMPTOM • Verify power cord is plugged into a working, grounded electrical outlet. A grounded, electrical surge protection device is recommended. - Page 27 TROUBLESHOOTING In the event the adjustable base fails to operate, investigate the symptoms and possible solutions provided in the chart below: SOLUTION SYMPTOM • Verify mattress retainer was removed during installation. Remove mattress retainer if still attached to the underneath side of base. •...
-
Page 28: Accessories
ACCESSORIES OPTIONAL EQUIPMENT Contact customer service toll free (800-888-3078) to order the accessories indicated in the chart below. ACCESSORY DESCRIPTION CODE IMAGE Bedroom Accessory Control 4B8056 Insulated Headboard Bracket Kit 4B7728 (Twin / Split Cal King) Insulated Headboard Bracket Kit 4B7729 (Queen / Full) 4B7730... -
Page 29: Warranty
1 YEAR, 3 YEAR AND 25 YEAR LIMITED WARRANTY In this warranty: “Adjustable base” means the adjustable bed foundation sold by L&P to the dealer. The “adjustable base” does not include the mattress. “L&P” means Leggett & Platt, Incorporated. “Purchaser” and “You” both mean the consumer who is the original purchaser of this adjustable base made by L&P. - Page 30 1 YEAR, 3 YEAR AND 25 YEAR LIMITED WARRANTY Repair or replacement shall be the sole remedy of the L&P makes no other warranty whatever, express or Purchaser. There shall be no liability on the part of L&P implied, and all implied warranties of merchantability and for any special, indirect, incidental, or consequential fitness for a particular purpose are disclaimed by L&P and damages or for any other damage, claim, or loss not...
