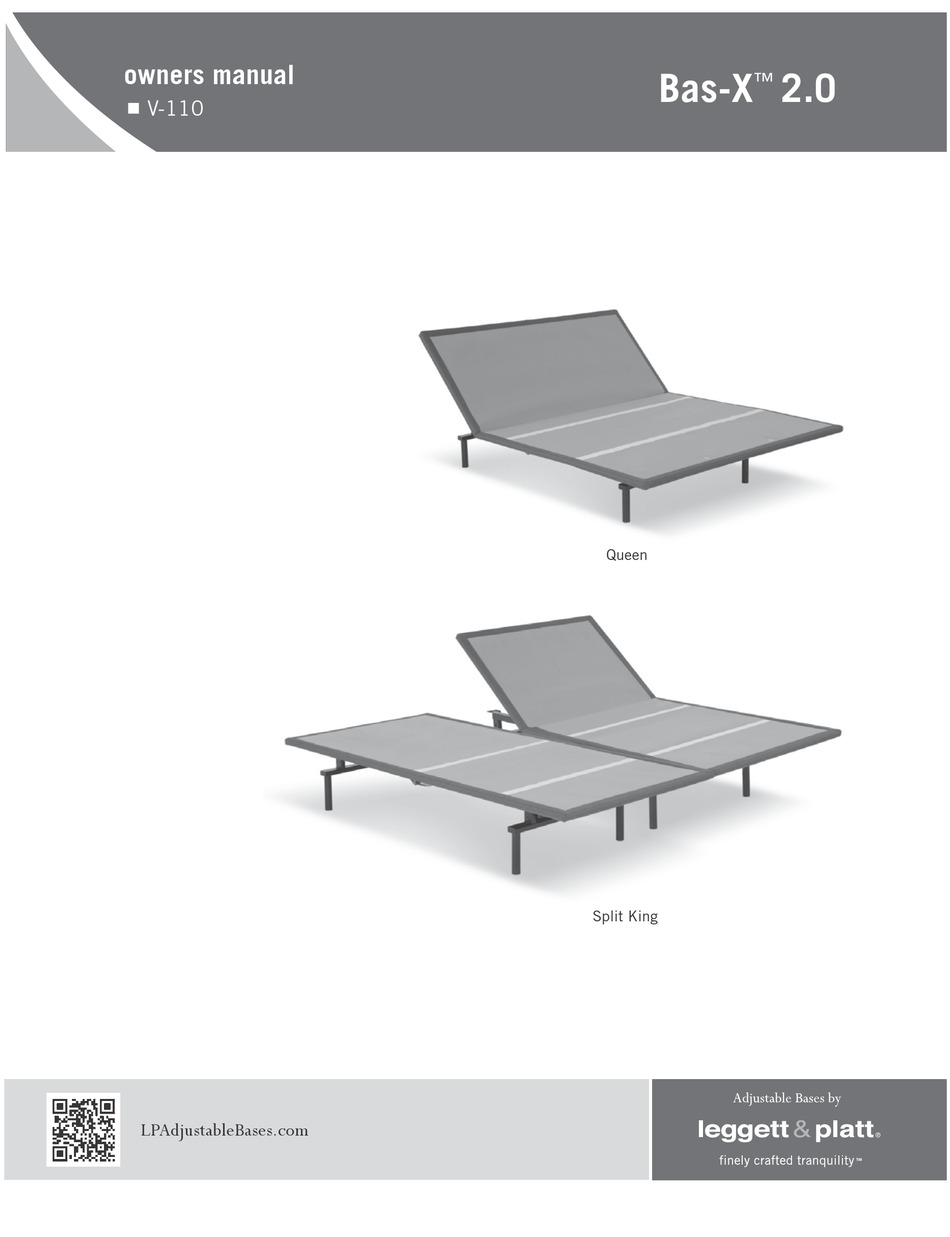

- Page 1 owners manual Bas-X ™ � V-110 Queen Split King LPAdjustableBases.com...
-
Page 3: Table Of Contents
CONTENTS Advisory ........................4 Acoustics ........................5 Installation ......................... 6 Remote Control Function .................... 10 Tandem Syncing (One remote control operating both bases in tandem) ......11 Troubleshooting ......................12 1-3-25 Warranty ......................13 If adjustable base does not operate or if parts are missing, call: 1.800.888.3078 Do not contact retail store or dealer. -
Page 4: Advisory
ADVISORY IMPORTANT INFORMATION READ THE FOLLOWING INFORMATION CAREFULLY BEFORE USING THIS PRODUCT PRODUCT RATINGS The base lift motors are not designed for continuous WARNING WARNING use. Reliable operation and full life expectancy will be realized as long as the lift motor operation does FOR OPTIMUM ADJUSTABLE BASE not exceed five (5) minutes over a forty-five (45) OPERATION, USE A GROUNDED, ELECTRICAL... -
Page 5: Acoustics
ACOUSTICS LIFTING/LOWERING MECHANISMS LOCATION ENVIRONMENT The lift/lower feature will emit a minimal humming The level of sound experienced during operation sound during operation. This is normal. is directly related to the location environment. For example, when a base is located on a hardwood floor During operation, the lift arm wheels make with the massage feature in operation, a vibrating contact with the platform support of the base. -
Page 6: Installation
INSTALLATION For installation and setup of the adjustable base, complete the following procedures, in the order indicated below and on the following pages. STEP 1 Before discarding any packing materials, open the adjustable base shipping carton and verify the following items are included: feed cord, and electrical power cord) OWNERS MANUAL... - Page 7 INSTALLATION STEP 2 READ ALL INSTRUCTIONS BEFORE USING Uncoil the main power cord and remote control and extend them out head end of base, then remove the WARNING WARNING hardware box from shipping container. Cut the zip-tie and remove the mattress retainer. POWER CORDS MUST NOT INTERFERE STEP 3 WITH ANY ADJUSTABLE BASE...
- Page 8 INSTALLATION STEP 6 Note: An electrical surge protection device is recommended (not included). STEP 7 Briefl y activate all functions of the base with the remote control to verify all features are in working order. If base does not operate, refer to the Troubleshooting section of this manual.
- Page 9 INSTALLATION STEP 9 Install mattress retainer at the foot end of the adjustable base as follows: a. Locate grommeted holes at foot end of base. of adjustable base (FIGURE 3 section is fl ush against base. FIGURE 3 MATTRESS RETAINER STEP 10 Install mattress on adjustable base.
-
Page 10: Remote Control Function
REMOTE CONTROL FUNCTION HEAD DOWN BUTTON HEAD UP BUTTON head section. head section. Bas-X™ 2.0 Owners Manual 290-0006... -
Page 11: Tandem Syncing (One Remote Control Operating Both Bases In Tandem)
TANDEM SYNCING To tandem sync two bases to operate as one base, perform the followning procedure: STEP 3 STEP 1 Locate the sync cable (FIGURE 4). motor connections (FIGURE 6). FIGURE 4 FIGURE 6 “B” CONNECTION BASE MOTOR SYNC CABLE CONNECTION “A”... -
Page 12: Troubleshooting
TROUBLESHOOTING In the event the adjustable base fails to operate, investigate the symptoms and possible solutions provided in the chart below: SOLUTION SYMPTOM electrical outlet. A grounded, electrical surge protection device is recommended. Test outlet by plugging in another working appliance. Remote control will not activate base. -
Page 13: Warranty
1 YEAR, 3 YEAR AND 25 YEAR LIMITED WARRANTY Adjustable base L&P Purchaser Warranty Commencement Date warranty time period. 1ST YEAR FULL WARRANTY ADDITIONAL TERMS AND CONDITIONS For the first year from the Warranty Commencement Date, your adjustable base is warranted against non-excluded claim for repairs or replacement parts. - Page 14 1 YEAR, 3 YEAR AND 25 YEAR LIMITED WARRANTY Repair or replacement shall be the sole remedy of the L&P makes no other warranty whatever, express or Purchaser. There shall be no liability on the part of L&P implied, and all implied warranties of merchantability and for any special, indirect, incidental, or consequential fitness for a particular purpose are disclaimed by L&P and damages or for any other damage, claim, or loss not...
- Page 16 290-0006 EDR13767 12/16 NATIONWIDE CUSTOMER SERVICE (800) 888-3078 toll free: © 2016 Leggett & Platt Adjustable Bed Group, a division of Leggett & Platt Incorporated...
