assumes no liability for data overage charges, even in the event of software bugs or any other failure of hardware or
software. It is entirely the responsibility of the user to monitor any metered data usage.
setup
Setup for HotSwap is done entirely on the end of the link that has dual networks connected. On the MultiRack, the
best way to set up HotSwap is via the Network Manager page, accessible via the web-based interface. Navigate to
the Main Menu in the upper left hand corner of the screen and select Network Manager.
Before entering the Network Manager, the secondary network should be attached to the MultiRack via USB or
Ethernet. MultiRack Ethernet ports designate a primary and secondary port for this very purpose. The default
behavior for CrossLock is to use all networks available to aggregate and apportion data based on capacity and
delay calculations. To configure primary and secondary networks, this behavior will require changes in the Network
Manager.

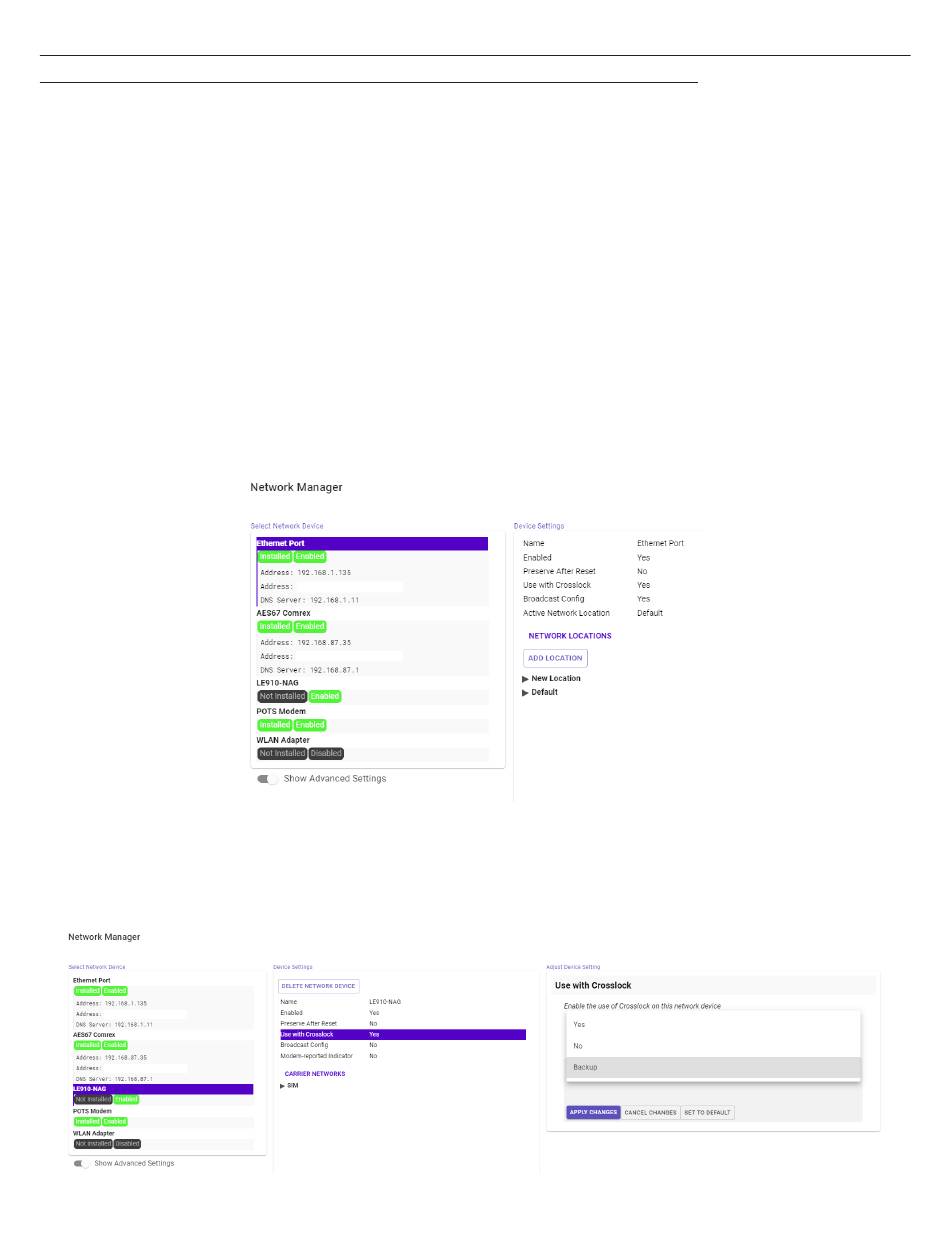

In Network Manager, a list of all networks attached to the codec and their status will populate under "Select
Network Device", as shown in Figure 77.
FIgure 77 network setup
Here, the backup network can be selected. This network's options can be expanded using the "Show Advanced"
button, which will reveal additional configuration options. Find the option labelled "Use with CrossLock" and
change the default from "yes" to "backup"
FIgure 78 hotswAp network deVIce setup
(Figure 78).
