Yardworks 060-3890-8 Instruction Manual

Electric
Hide thumbs
Table of Contents

Advertisement

Quick Links

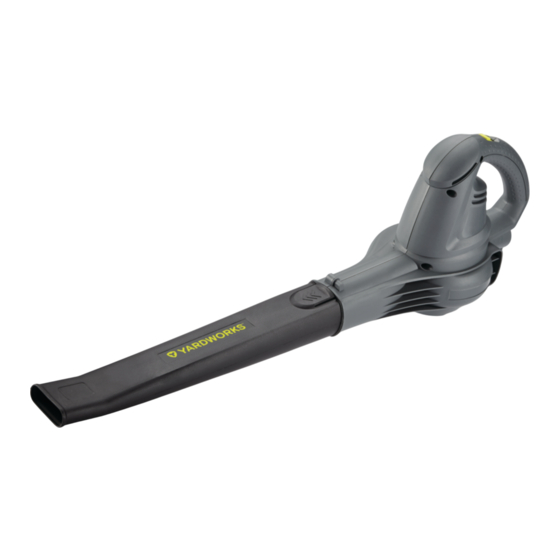

Electric Blower
model no. 060-3890-8
3084514
Conforms to UL STD 1017
Certified to CAN/CSA STD.
C22.2 No. 147-M90
Toll-free: 1-866-523-5218
IMPORTANT:
IMPORTANT:
Read and follow all safety rules and
Read and follow all safety rules and
operating instructions before using
operating instructions before using
this product.
this product.
Instruction Manual

Advertisement

Table of Contents
loading

Related Manuals for Yardworks 060-3890-8

Summary of Contents for Yardworks 060-3890-8

  • Page 1 Electric Blower model no. 060-3890-8 3084514 Conforms to UL STD 1017 Certified to CAN/CSA STD. C22.2 No. 147-M90 Toll-free: 1-866-523-5218 IMPORTANT: IMPORTANT: Read and follow all safety rules and Read and follow all safety rules and operating instructions before using operating instructions before using this product.
  • Page 2 060-3890-8 | contact us: 1.866.523.5218 Specifications Know Your Blower Exploded View Parts List Assembly Operation Maintenance Troubleshooting Symbols Electrical Information Important Safety Instructions General Safety Rules Warranty ELECTRIC BLOWER Type Corded Voltage 120 V~60 Hz Max Air Speed...

  • Page 3: Know Your Blower

    060-3890-8 | contact us: 1.866.523.5218 ON/OFF switch Blower tube Cord retainer Plug KNOW YOUR BLOWER The safe use of this product requires an understanding of the information on the tool and in this operator’s manual as well as a knowledge of the project you are attempting.
  • Page 4 060-3890-8 | contact us: 1.866.523.5218...
  • Page 5 060-3890-8 | contact us: 1.866.523.5218 Item Description Blower tube Right motor housing assembly Motor assembly Wire Micro-switch Switch button Built-in plug Left motor housing Shaft spacer Heat output fan blade Fan blade Pressure pad...

  • Page 6: Packing List

    060-3890-8 | contact us: 1.866.523.5218 UNPACKING This product requires assembly. • Carefully remove the product and any accessories from the box. Make sure that all items listed in the packing list are included. • Inspect the product carefully to make sure no breakage or damage occurred during shipping.

  • Page 7: Assembling The Blower Tube

    060-3890-8 | contact us: 1.866.523.5218 ASSEMBLING THE BLOWER TUBE Slide blower tube forward until the lock button clicks into the top of the tube. Air outlet Lock button Blower tube WARNING: If any parts are damaged or missing do not operate this product until the parts are replaced.

  • Page 8: Starting/Stopping The Blower

    060-3890-8 | contact us: 1.866.523.5218 APPLICATIONS You may use this product for the purposes listed below: • Clearing leaves and other yard debris from your lawn. • Keeping decks, patios, garages and driveways free from leaves, pine needles and other debris.

  • Page 9: Operating The Blower

    060-3890-8 | contact us: 1.866.523.5218 OPERATING THE BLOWER • To keep from scattering debris, blow around the outer edges of a debris pile. Never blow directly into the centre of a pile. • To reduce sound levels, limit the number of pieces of equipment used at any one time.

  • Page 10: General Maintenance

    060-3890-8 | contact us: 1.866.523.5218 GENERAL MAINTENANCE Avoid using solvents when cleaning plastic parts. Most plastics are susceptible to damage from various types of commercial solvents and may be damaged by their use. Use clean cloths to remove dirt, dust, oil, grease, etc.
  • Page 11 060-3890-8 | contact us: 1.866.523.5218 PROBLEM CAUSE REMEDY Motor fails to start when Power cord is not plugged in Plug in the power cord. switch is turned on. or connection is loose. Check circuit breaker. Household circuit breaker is tripped.
  • Page 12 060-3890-8 | contact us: 1.866.523.5218 Some of the following symbols may be used on this product. Please study them and learn their meaning. Proper interpretation of these symbols will allow you to operate the product effectively and safely.

  • Page 13: Double Insulation

    060-3890-8 | contact us: 1.866.523.5218 DOUBLE INSULATION Double insulation is a concept in safety in electric power tools, that eliminates the need for the usual three-wire grounded power cord. All exposed metal parts are isolated from the internal metal motor components with protecting insulation. Double-insulated tools do not need to be grounded.
  • Page 14 060-3890-8 | contact us: 1.866.523.5218 Minimum Gauge for Extension Cords (AWG) (when using 120 V only) Ampere Rating Total Length of Cord in Feet (metres) More Than Not More Than 25' (7.6 m) 50' (15 m) 100' (30.4 m) 150' (45.7 m)
  • Page 15 060-3890-8 | contact us: 1.866.523.5218 READ THESE INSTRUCTIONS BEFORE • Use outdoor extension cords marked USING THIS BLOWER W-A, W, SW-A, SOW-A, STW-A, STOW-A, SJW-A, SJTW-A, or • Do not operate power tools in explosive SJTOW-A. These cords are rated for...
  • Page 16 060-3890-8 | contact us: 1.866.523.5218 • Do not force tool. Use the correct tool • Do not operate this tool when you are for your application. The correct tool will tired, ill, upset or under the influence of do the job better and safer at the rate alcohol, drugs, or medication.
  • Page 17 060-3890-8 | contact us: 1.866.523.5218 • Make sure your extension cord is • If the power supply cord is damaged, in good condition. When using an it must be replaced only by the extension cord, be sure to use one...

  • Page 18: Two-Year Limited Warranty

    060-3890-8 | contact us: 1.866.523.5218 TWO-YEAR LIMITED WARRANTY How to Obtain Service: For TWO YEARS from the date of purchase Warranty service is available by calling within Canada, YARDWORKS CANADA the toll-free helpline, at 1-866-523- will, at its option, repair or replace for the 5218.
  • Page 19 Made in China. Imported by YardWorks Canada. Toronto, Canada M4S 2B8...
