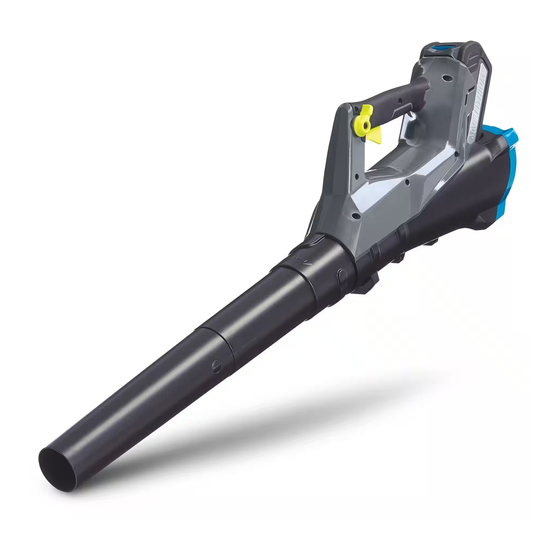

LEAF BLOWER
model number 060-2374-4 | contact us: 1.866.523.5218
IMPORTANT:
Instruction
Read and follow all safety rules and operating
Manual
instructions before using this product.
2401400

Advertisement

Table of Contents
loading

Related Manuals for Yardworks 060-2374-4

Summary of Contents for Yardworks 060-2374-4

  • Page 1 LEAF BLOWER model number 060-2374-4 | contact us: 1.866.523.5218 IMPORTANT: Instruction Read and follow all safety rules and operating Manual instructions before using this product. 2401400...
  • Page 2 060-2374-4 | contact us: 1.866.523.5218 SPECIFICATIONS KNOW YOUR BLOWER SYMBOLS SAFETY INFORMATION BATTERY AND CHARGER EXPLODED VIEW PARTS LIST ASSEMBLY OPERATION MAINTENANCE TROUBLESHOOTING WARRANTY Battery 40 V max, 3 Ah lithium-ion Speed Variable Air volume 390 CFM Air speed...

  • Page 3: Know Your Blower

    060-2374-4 | contact us: 1.866.523.5218 1. Cruise Control Lever 2. Blower Tube 3. Trigger 4. Battery 5. Charger KNOW YOUR BLOWER The safe use of this product requires an understanding of the information on the product and in this operator’s manual as well as a knowledge of the project you are attempting.
  • Page 4 060-2374-4 | contact us: 1.866.523.5218 Some of the following symbols may be used on this product. Please study them and learn their meaning. Proper interpretation of these symbols will allow you to operate the product more efficiently and more safely.
  • Page 5 060-2374-4 | contact us: 1.866.523.5218 The following signal words and meanings are intended to explain the levels of risk associated with this product. SYMBOL SIGNAL MEANING DANGER Indicates an imminently hazardous situation, which, if not avoided, will result in death or serious injury.
  • Page 6 060-2374-4 | contact us: 1.866.523.5218 IMPORTANT SAFETY INSTRUCTIONS READ AND UNDERSTAND ALL INSTRUCTIONS. Failure to follow all instructions listed below may result in electric shock, fire, and/or serious personal injury. BEFORE USING THIS BLOWER: • Use extra care when cleaning on stairs.
  • Page 7 060-2374-4 | contact us: 1.866.523.5218 • To reduce the risk of electric shock, the battery charger has a polarized plug (one blade is wider than the other) and will require the use of a polarized extension cord. The plug will only fit into a polarized extension cord one way.

  • Page 8: Child Safety

    060-2374-4 | contact us: 1.866.523.5218 Liquid ejected from the battery may cause irritation or burns. • Do not use a battery pack or appliance that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behavior resulting in fire, explosion or risk of injury.

  • Page 9: Battery And Charger

    060-2374-4 | contact us: 1.866.523.5218 BATTERY AND CHARGER For the proper use, maintenance and storage of this battery, it is crucially important that you read and understand the instructions given in this manual. To avoid serious injury, risk of fire, explosion and danger of electric shock or electrocution: •...
  • Page 10 060-2374-4 | contact us: 1.866.523.5218 • Do not disassemble the battery. • Keep away from children. • Do not expose the battery to water or salt water. Battery should be stored in a cool and dry location. • Do not place the battery in high-temperature locations, such as near a fire, heater, etc.

  • Page 11: Environmentally Safe Battery Disposal

    060-2374-4 | contact us: 1.866.523.5218 ENVIRONMENTALLY-SAFE BATTERY DISPOSAL The following toxic and corrosive materials are in the batteries used in this tool battery pack: Li-ion, a toxic material. To avoid injury and risk of fire, explosion, or electric shock, and to avoid damage to the environment: •...

  • Page 12: Charging Procedure

    060-2374-4 | contact us: 1.866.523.5218 CHARGING PROCEDURE NOTE: The battery is not shipped fully charged. It is recommended to fully charge it before first use to ensure that maximum run time can be achieved. This lithium-ion battery will not develop a memory and may be charged at any time.
  • Page 13 060-2374-4 | contact us: 1.866.523.5218 If the battery pack does not charge properly: • Check the current at the power outlet with another tool. Make sure that the outlet is not turned off. • Check that the charger contacts have not been shorted by debris or foreign material.
  • Page 14 060-2374-4 | contact us: 1.866.523.5218 This charger can be hung on a wall using two screws (not supplied). 1. Locate the placement for the charger to be wall mounted. 2. If fastening to wood studs use 2 wood screws.
  • Page 15 060-2374-4 | contact us: 1.866.523.5218 Item PART No. Description Qty. 40V Axial Blower Assembly 29002250 Front Blower Tube 341091809 Rear Blower Tube 341081809 Rear Vent Housing 341051809F Rear Vent Screws 3220505D Charger 31106980 Battery 211011362...
  • Page 16 060-2374-4 | contact us: 1.866.523.5218 UNPACKING This product requires assembly before using. • Carefully remove the product and any accessories from the box. Make sure all items listed in the packing list are included. • Inspect the product carefully to make sure no breakage or damage occurred during shipping.
  • Page 17 060-2374-4 | contact us: 1.866.523.5218 To remove the battery pack • Press and hold the latch button (1) add with a firm grip. • Grasp the trigger handle (2) firmly. Pull the battery pack out of the handle.

  • Page 18: Blower Tube Assembly

    060-2374-4 | contact us: 1.866.523.5218 BLOWER TUBE ASSEMBLY 1. Align either of the grooves (4) in the tube with the tabs (5) on the blower housing. Push the tube (6) into the blower housing until the tabs (5) engage the grooves (4).
  • Page 19 060-2374-4 | contact us: 1.866.523.5218 3. To install the front tube (A) to rear tube (B), line up the hole on the front tube with the tab on the rear tube. Once aligned, slide the front tube onto the rear tube until the tube is secured.

  • Page 20: Starting/Stopping The Blower

    model no. 060-2374 | contact us: 1.866.523.5218 APPLICATIONS You may use this product for the purposes listed below: • Clearing hard surfaces such as driveways and walkways. • Keeping decks and driveways free from leaves and pine needles. STARTING/STOPPING THE BLOWER •...

  • Page 21: Operating The Blower

    060-2374-4 | contact us: 1.866.523.5218 USING CRUISE CONTROL LEVER This blower is equipped with a cruise control function. Please read and understand the function of the cruise control lever (2) . • Squeeze the trigger (1) to start the unit.

  • Page 22: Air Vents

    model no. 060-2374 | contact us: 1.866.523.5218 AIR VENTS Never cover air vents. Keep them free of obstructions and debris. They must always remain clear for proper motor cooling. OPERATING AS A BLOWER Hold the blower firmly. Sweep from side to side with the nozzle several inches above the ground or floor.
  • Page 23 060-2374-4 | contact us: 1.866.523.5218 PROBLEM POSSIBLE CAUSE SOLUTION Unit will not start. 1. Battery is not secure. 1. Check to ensure the latches are tightly secured in to place on the back of the blower and the battery.
  • Page 24 Made in China. Imported by Yardworks period of one hundred twenty (120) days from Canada Toronto, Canada M4S 2B8 the date of retail purchase. YARDWORKS CANADA will not be liable for incidental or consequential loss or damage.
