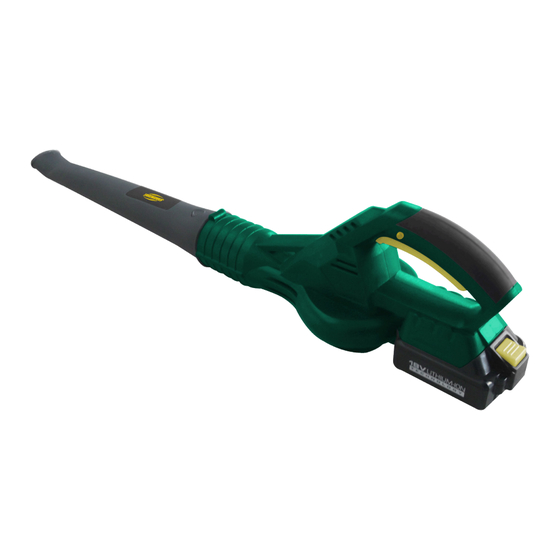

- Page 1 Cordless Blower model no. 060-3891-6 Toll-free: 1-866-523-5218 IMPORTANT: IMPORTANT: Read and follow all safety rules and Read and follow all safety rules and operating instructions before using operating instructions before using this product. this product. Instruction Manual...
- Page 2 060-3891-6 | contact us: 1.866.523.5218 Specifications Know Your Blower Exploded View Parts List Assembly Operation Maintenance Troubleshooting Symbols General safety rules Additional safety rules for blowers Additional safety rules for the charger Additional safety rules related to the battery pack and battery safety...
-
Page 3: Know Your Blower
060-3891-6 | contact us: 1.866.523.5218 Trigger switch Safety switch Blower tube Battery Battery release tab Battery/plug pack charger - 3-5 hours Battery LED’-s KNOW YOUR BLOWER The safe use of this product requires an understanding of the information on the tool and in this operator’s manual as well as a knowledge of the project you are attempting. - Page 4 060-3891-6 | contact us: 1.866.523.5218...
- Page 5 060-3891-6 | contact us: 1.866.523.5218 Item Description Blower tube Blower connecting pipe Screw: ST3.5×16 Right housing Left housing Switch spring:φ0.6 Switch/DA7-10/1 Switch trigger Motor press plate 18 V motor Battery pack insert pin 18 V battery pack Motor fan...
- Page 6 060-3891-6 | contact us: 1.866.523.5218 UNPACKING ACCESSORIES Due to modern mass production 1 x 18 V Lithium-ion Battery techniques, it is unlikely that your Automatic Battery Charger Power Tool is faulty or that a part is missing. If you find anything wrong, do not operate...
-
Page 7: Fitting And Removing The Battery Pack
060-3891-6 | contact us: 1.866.523.5218 FITTING AND REMOVING THE BATTERY PACK To remove the battery pack from the tool, firmly press the battery release button at the back of the battery pack and slide the battery pack backward. Then pull or lift the battery out of the tool handle. - Page 8 060-3891-6 | contact us: 1.866.523.5218 3. Turn on the plug pack charger. The red indicator on the battery pack will glow red indicating power is available at the battery pack. If the battery is charging, the green indicator light will illuminate.
-
Page 9: Assembling The Blower Tube
060-3891-6 | contact us: 1.866.523.5218 ASSEMBLING THE BLOWER TUBE Slide the blower tube onto the blower housing, ensuring the hole in the tube matches up with the raised section in the housing. Please install this tube with the screw provided. -
Page 10: Operation Of The Blower
060-3891-6 | contact us: 1.866.523.5218 OPERATION OF THE BLOWER Hold the blower firmly and rotate from side to side, holding the tube several inches above the ground. Slowly move forward, directing the debris to the desired location. •... -
Page 11: Tips For Using Your Blower
060-3891-6 | contact us: 1.866.523.5218 TIPS FOR USING YOUR BLOWER The following points may assist you in the operation of the blower. • Always try to blow dry leaves, cuttings or general garden debris. Wet material is difficult to move. -
Page 12: Maintenance And Storage Information
060-3891-6 | contact us: 1.866.523.5218 MAINTENANCE AND STORAGE INFORMATION Prior to cleaning or any maintenance, always ensure the battery pack has been removed from the tool. When you have finished using the blower, always check to make sure the product is clean and free of dirt and debris. - Page 13 060-3891-6 | contact us: 1.866.523.5218 PROBLEM CAUSE REMEDY Product does not start Battery pack not properly Insert properly inserted. Battery pack discharged Remove and charge battery pack Battery pack damaged Check by a specialist electrician Other electrical defect...
- Page 14 060-3891-6 | contact us: 1.866.523.5218 Some of the following symbols may be used on this product. Please study them and learn their meaning. Proper interpretation of these symbols will allow you to operate the product effectively and safely.
- Page 15 060-3891-6 | contact us: 1.866.523.5218 Save all warnings and instructions for future tool will increase the risk of electric reference. The term “power tool” in the shock. warnings refers to your mainsoperated • Do not abuse the cord. Never use the...
- Page 16 060-3891-6 | contact us: 1.866.523.5218 • Prevent unintentional starting. Ensure safety measures reduce the risk of the switch is in the off position before starting the power tool accidentally. connecting to power source and/or • Store idle power tools out of the reach...
- Page 17 060-3891-6 | contact us: 1.866.523.5218 • This appliance is not intended for use other battery packs may create a risk of by people (including children) with injury and fire. reduced physical, sensory or mental • When battery pack is not in use, keep...
- Page 18 060-3891-6 | contact us: 1.866.523.5218 • Always wear adequate protective and check for damage. If you have the clothing when operating the tool to slightest doubts, contact an authorised avoid injuries to face, eyes, hands, feet, service centre.
- Page 19 060-3891-6 | contact us: 1.866.523.5218 • Your automatic tool with lithium-ion to a power tool repair centre when batteries may only be charged with the service or repair is required. Incorrect specific designed automatic lithium- re-assembly may result in the risk of ion battery charger purchased with fire, electric shock or electrocution.
- Page 20 060-3891-6 | contact us: 1.866.523.5218 Take the tool or charger to your nearest and battery pack in locations where authorized service centre or phone and the temperature may be below 0°C or speak with an experienced YARDWORKS exceed 40°C, such as beside sheds or customer service representative for metal structures.
- Page 21 060-3891-6 | contact us: 1.866.523.5218 • Use only the batteries supplied with the hot environment, such as a metal shed tool or approved replacements. or open trailer left in the sun. • Do not use the battery to power any •...
- Page 22 060-3891-6 | contact us: 1.866.523.5218 • Stop using the battery if it exhibits abnormal heat, odour, colour, deformation or is in an abnormal condition. • If you detect leakage or a foul odour, it is especially important to keep the battery away from fire.
-
Page 23: Two-Year Limited Warranty
060-3891-6 | contact us: 1.866.523.5218 TWO-YEAR LIMITED WARRANTY How to Obtain Service: For TWO YEARS from the date of purchase Warranty service is available by calling within Canada, YARDWORKS CANADA the toll-free helpline, at 1 866-523-5218. will, at its option, repair or replace for the... - Page 24 Made in China. Imported by YardWorks Canada. Toronto, Canada M4S 2B8...
