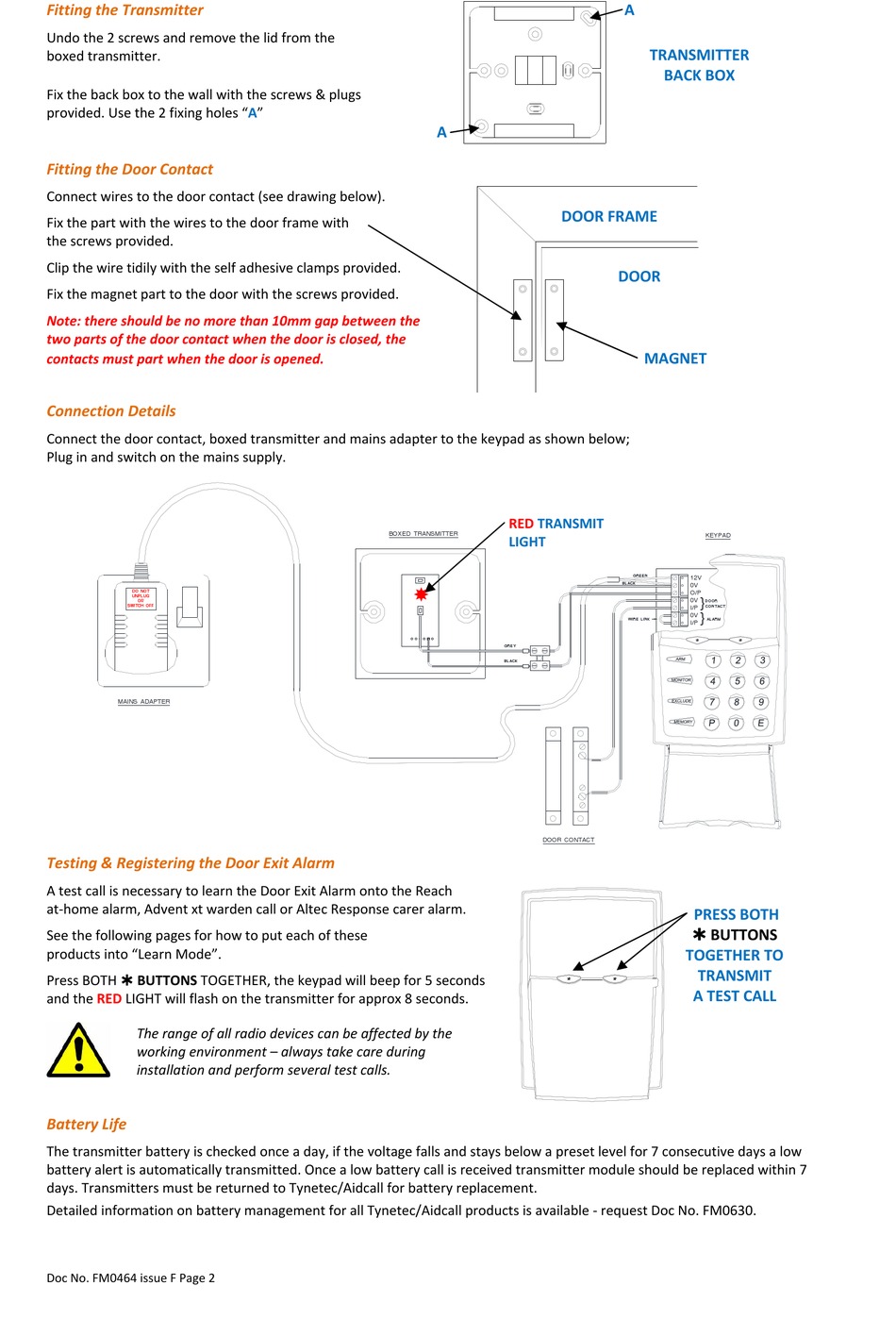

Fitting the Transmitter
Undo the 2 screws and remove the lid from the
boxed transmitter.
Fix the back box to the wall with the screws & plugs
provided. Use the 2 fixing holes "A"
Fitting the Door Contact
Connect wires to the door contact (see drawing below).
Fix the part with the wires to the door frame with
the screws provided.
Clip the wire tidily with the self adhesive clamps provided.
Fix the magnet part to the door with the screws provided.
Note: there should be no more than 10mm gap between the
two parts of the door contact when the door is closed, the
contacts must part when the door is opened.
Connection Details
Connect the door contact, boxed transmitter and mains adapter to the keypad as shown below;
Plug in and switch on the mains supply.
DO NOT
UNPLUG
OR
SWITCH OFF
MAINS ADAPTER
Testing & Registering the Door Exit Alarm
A test call is necessary to learn the Door Exit Alarm onto the Reach
at‐home alarm, Advent xt warden call or Altec Response carer alarm.
See the following pages for how to put each of these
products into "Learn Mode".
Press BOTH  BUTTONS TOGETHER, the keypad will beep for 5 seconds
and the RED LIGHT will flash on the transmitter for approx 8 seconds.
The range of all radio devices can be affected by the
working environment – always take care during
installation and perform several test calls.
Battery Life
The transmitter battery is checked once a day, if the voltage falls and stays below a preset level for 7 consecutive days a low
battery alert is automatically transmitted. Once a low battery call is received transmitter module should be replaced within 7
days. Transmitters must be returned to Tynetec/Aidcall for battery replacement.
Detailed information on battery management for all Tynetec/Aidcall products is available ‐ request Doc No. FM0630.
Doc No. FM0464 issue F Page 2
BOXED TRANSMITTER

A

Door Frame

DOOR FRAME
RED TRANSMIT
LIGHT
GREY
BLACK
DOOR CONTACT
A
TRANSMITTER
BACK BOX
DOOR
Door
MAGNET
KEYPAD
GREEN
12V
BLACK
0V
O/P
}
0V
DOOR
I/P CONTACT
}
0V
WIRE LINK ALARM
I/P
PRESS BOTH
 BUTTONS
TOGETHER TO
TRANSMIT
A TEST CALL
