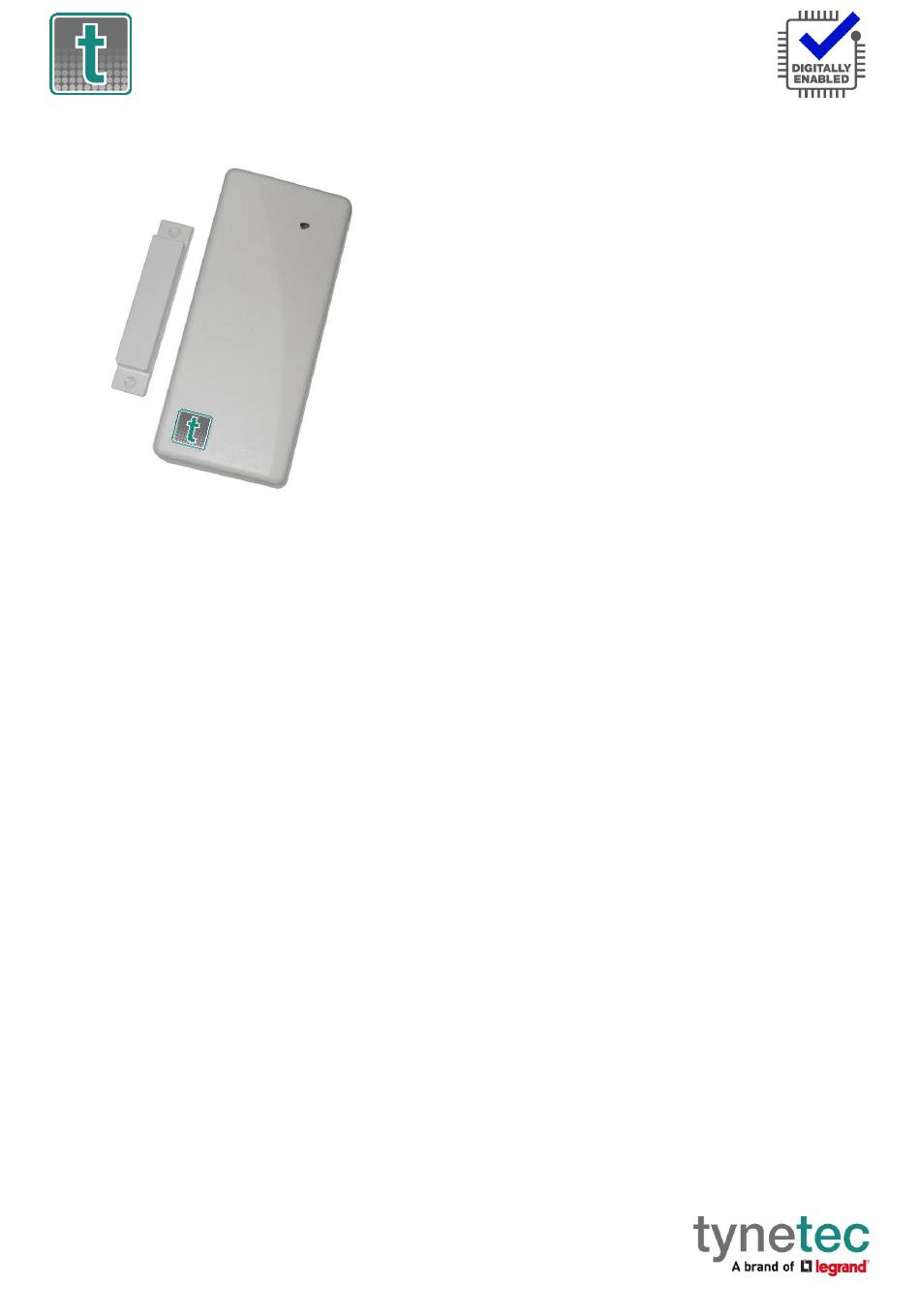

Tynetec ZXT830 Quick Start Manual

Door Alarm
869MHz
_________________________________________________________________________
Caring for People
•
Fixed trigger device
•
Used to support the care of dementia patients
•
Compatible with Reach IP and Advent XT2
•
Complies with BS EN 50134-2:2017
•

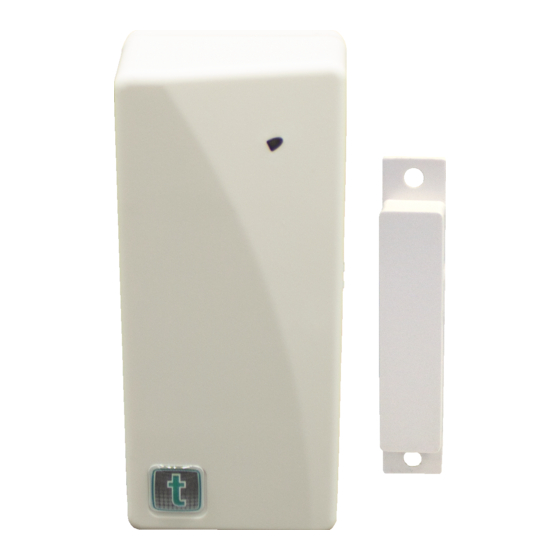

Integrated left and right-side reed switches
•
Surface magnetic door contact
•
Red alarm transmit LED indicator
•
Green alarm received LED indicator
•
2 No. AAA Alkaline batteries
•
Low battery warning
•
Operating Temperature: +5
•
Telecare Transceiver: 869.2125MHz Class 1.5
•
Digital Heartbeat
•
Weight: 55 grams
•
Dimensions: 85mm x 34mm x 24mm (HxWxD)
•
Product Code: ZXT830
________________________________________________________________
Tynetec, a business unit of Legrand Electric Ltd
Cowley Road, Blyth Riverside Business Park, Blyth, Northumberland, NE24 5TF.
Tel: +44 (0) 1670 352371 www.tynetec.co.uk
o o
C to +40 C
Trusted Technology
Caring for People

Positioning

The door alarm can be mounted on the door frame and
the magnet on the door, or vice-versa. The magnet can be
placed on either side of the door alarm. The distance
between the door alarm and the magnet must not exceed
10mm when the door is closed. If the door is made from
metal the magnet may need to be closer.

Alarm Condition

When a monitored door is opened, it transmits an alarm
and the LED will illuminate red for 4 seconds. When the
alarm is acknowledged by the Telecare system the LED will
illuminate green for 2 seconds. A new alarm will not be
triggered until the door has been closed and opened again.

Low Battery Condition

A low battery condition will be reported automatically to
the Alarm Receiving Centre (ARC) or the local Manager.
The batteries should be replaced as soon as possible within
30 days.

Out of Range Notification (Reach IP)

The Reach IP can monitor all radio peripheral devices to
determine whether they have been damaged or removed
from an installation. Should the Reach IP be unable to
detect a device's heartbeat it will automatically generate a
"radio out of range" notification. Firstly, investigate if
there's a genuine reason for the alert, if not, arrange for
the peripheral device to be replaced immediately.
The "Radio out of range timer" can be set from 30 hours to
99999 hours in Pulse CMP. "Radio supervision" can be
disabled by unchecking the tick box associated with each
peripheral device in Pulse CMP.

Maintenance

Test the door alarm once every month.
Clean with a damp cloth, do not use solvents or cleaners
on the door alarm.

Disposal

Waste electrical products should not be disposed of with
normal household waste. The door alarm is ideally suited
for disposal within the waste electronic and electrical
equipment (WEEE) recycling scheme.
Please recycle where facilities exist.
Check with your local authority or contact your supplier for
recycling/disposal advice.
Doc No. FM0826 V1.04 Page 1
