What are Door Exit Alarms used for?
The keypad is used to arm/disarm a door alarm from inside the resident's home.
Before a Carer leaves they enter a code to start an exit time, when this period expires the alarm is set.
When the door is opened an entry time starts, if the code is not re‐entered an alarm will be transmitted.
If the door remains open without the code being entered the alarm will re‐report after a preset time (default 2 minutes), this will
repeat until the door is closed. The door alarm will not be disarmed until the code is entered.
Where should the Door Exit Alarm be fitted?
The keypad should be wall mounted inside the home, usually alongside the door being monitored. The keypad should be within 3
metres of the door contact, boxed transmitter and a mains socket otherwise the leads provided will need to be extended.
Typical Tools Required
Check for cables and pipes in the wall before using the drill.
Make sure the correct type drill bit and screwdrivers are used.
Fitting the Keypad
Remove the top section of the
keypad by pressing the 2 plastic
clips "A" on the top edge with a
flat bladed screwdriver
Unhook from the clips on the
bottom edge.
Select the best location and fix
the back section to the wall
with the screws & plugs
provided. Use the 4 fixing
holes marked "B"
Doc No. FM0464 issue F Page 1

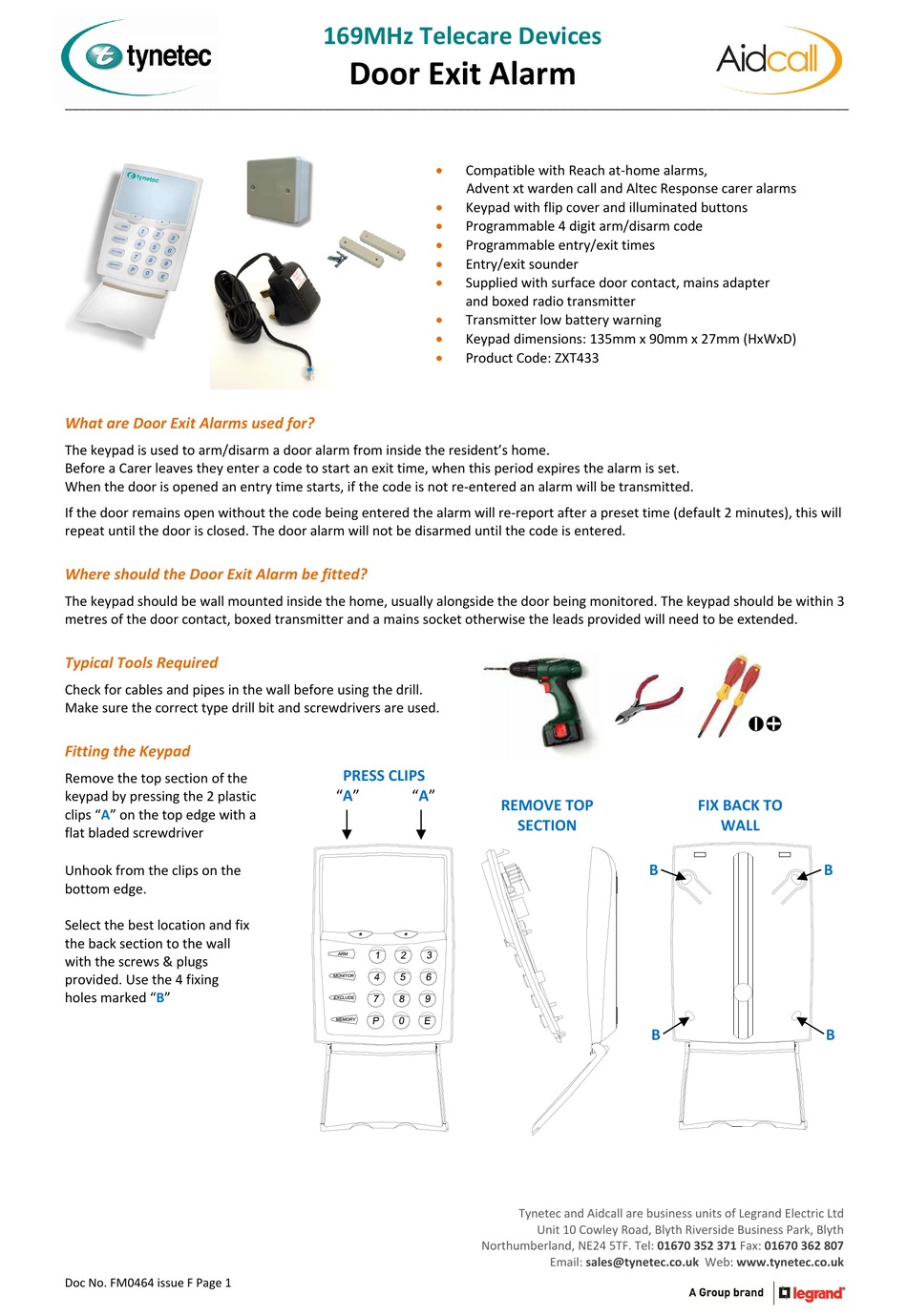

169MHz Telecare Devices
Door Exit Alarm

Advent xt warden call and Altec Response carer alarms








PRESS CLIPS
"A" "A"
Compatible with Reach at‐home alarms,
Keypad with flip cover and illuminated buttons
Programmable 4 digit arm/disarm code
Programmable entry/exit times
Entry/exit sounder
Supplied with surface door contact, mains adapter
and boxed radio transmitter
Transmitter low battery warning
Keypad dimensions: 135mm x 90mm x 27mm (HxWxD)
Product Code: ZXT433
REMOVE TOP
SECTION
Tynetec and Aidcall are business units of Legrand Electric Ltd
Unit 10 Cowley Road, Blyth Riverside Business Park, Blyth
Northumberland, NE24 5TF. Tel: 01670 352 371 Fax: 01670 362 807
Email: sales@tynetec.co.uk Web: www.tynetec.co.uk
FIX BACK TO
WALL
B
B
B
B
