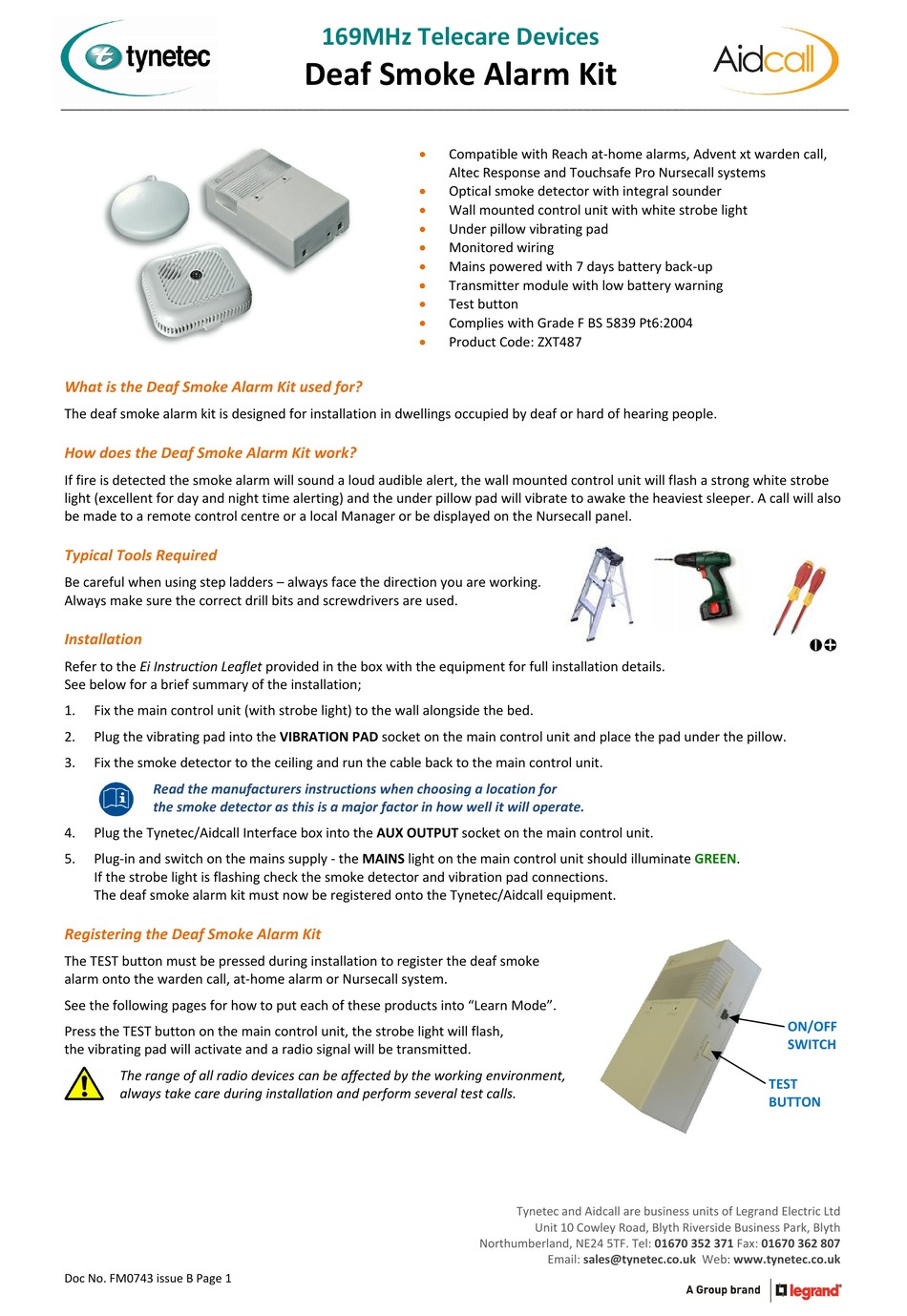

Tynetec Aidcall FM0743 Manual

___________________________________________________________________________________________________________
What is the Deaf Smoke Alarm Kit used for?
The deaf smoke alarm kit is designed for installation in dwellings occupied by deaf or hard of hearing people.
How does the Deaf Smoke Alarm Kit work?
If fire is detected the smoke alarm will sound a loud audible alert, the wall mounted control unit will flash a strong white strobe
light (excellent for day and night time alerting) and the under pillow pad will vibrate to awake the heaviest sleeper. A call will also
be made to a remote control centre or a local Manager or be displayed on the Nursecall panel.
Typical Tools Required
Be careful when using step ladders – always face the direction you are working.
Always make sure the correct drill bits and screwdrivers are used.
Installation
Refer to the Ei Instruction Leaflet provided in the box with the equipment for full installation details.
See below for a brief summary of the installation;
1. Fix the main control unit (with strobe light) to the wall alongside the bed.
2. Plug the vibrating pad into the VIBRATION PAD socket on the main control unit and place the pad under the pillow.
3. Fix the smoke detector to the ceiling and run the cable back to the main control unit.
Read the manufacturers instructions when choosing a location for
the smoke detector as this is a major factor in how well it will operate.
4. Plug the Tynetec/Aidcall Interface box into the AUX OUTPUT socket on the main control unit.
5. Plug‐in and switch on the mains supply ‐ the MAINS light on the main control unit should illuminate GREEN.
If the strobe light is flashing check the smoke detector and vibration pad connections.
The deaf smoke alarm kit must now be registered onto the Tynetec/Aidcall equipment.
Registering the Deaf Smoke Alarm Kit
The TEST button must be pressed during installation to register the deaf smoke
alarm onto the warden call, at‐home alarm or Nursecall system.
See the following pages for how to put each of these products into "Learn Mode".
Press the TEST button on the main control unit, the strobe light will flash,
the vibrating pad will activate and a radio signal will be transmitted.
The range of all radio devices can be affected by the working environment,
always take care during installation and perform several test calls.
Doc No. FM0743 issue B Page 1
169MHz Telecare Devices
Deaf Smoke Alarm Kit










Compatible with Reach at‐home alarms, Advent xt warden call,
Altec Response and Touchsafe Pro Nursecall systems
Optical smoke detector with integral sounder
Wall mounted control unit with white strobe light
Under pillow vibrating pad
Monitored wiring
Mains powered with 7 days battery back‐up
Transmitter module with low battery warning
Test button
Complies with Grade F BS 5839 Pt6:2004
Product Code: ZXT487
