CyberData 011397 Installation Quick Reference page 2

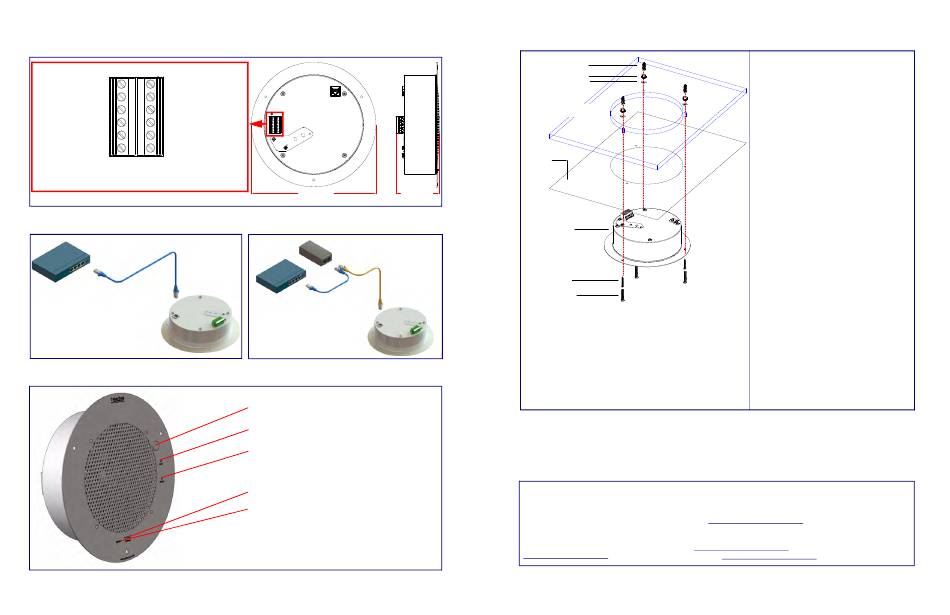

Dimensions and Connections
AUX POWER (+)
AUX SPEAKER (-)
(+12VDC @ 1A)
AUX POWER (-) AUX SPEAKER (+)
RELAY COM GND
RELAY NO
LINE OUT (-)
BUTTON LED (+)
LINE OUT (+)
BTN SENSE
BUTTON LED (-)
J9
J10
CLASS II WIRING
Connecting Power
802.3af Compliant PoE Switch
Features
© 2016, CyberData Corporation, ALL RIGHTS RESERVED 931190A
9.000 [228.60] 9.000 [228.60] 3.140 [79.75] 3.140 [79.75]
DIMENSIONS ARE IN INCHES [MILLIMETER]
DIMENSIONS ARE IN INCHES [MILLIMETER]
PoE Injector (part #010867)
Non PoE Switch
Microphone
Network Link/Activity LED (yellow)
Speaker Status LED (green)
A solid light confirms that the speaker is operational.
Speaker Volume
RTFM Switch
To broadcast a device's current IP address, press and
release the RTFM switch within a five second window.
To restore a device's factory default settings, press and hold
the RTFM switch for more than five seconds.
Quick Reference
VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299
Mounting
Dry Wall Mounting Kit
Plastic Ribberd Anchor (3x)
#8 Nylon Thumb Nut (3x)
#8 Fender Washer (3x)
*Ceiling Tile or Dry Wall
*Optional Reinforcement Mount
P/N: 010991A (Sold Seperately)
Template
Speaker
VoIP V3 Speaker Assembly
Assembly
Dry Wall Mounting Kit
#6 Screw (3x)
Ceiling Mounting Screw
#8-32x1 1/4" (3X)
Contacting CyberData
Corporate Headquarters
Sales: (831) 373-2601 ext. 334
CyberData Corporation
Support: 831-373-2601 ext. 333
3 Justin Court
Support Website:
Monterey, CA 93940, USA
RMA Department: (831) 373-2601 ext. 136
RMA Email: RMA@CyberData.net
Phone: 831-373-2601
Fax: 831-373-4193 RMA Status: http://support.cyberdata.net/
http://www.cyberdata.net/ Warranty Information:
Quick Reference
Tools Required for Installation:
• (1) Sheetrock saw or
(1) Drywall cutter
• (1) #2 Phillips Screwdriver or
(1) #2 Phillips Screwdriver Hex Bit
To mount a speaker:
1. Use the TEMPLATE on the back of this
document to cut a hole in the wall or ceiling,
and prepare holes for the screws.
2. Plug the Ethernet cable into the speaker
assembly. The yellow light verifies the
network connection.
3. For drop ceiling mounting, position the
SPEAKER ASSEMBLY in the ceiling so
that its screw holes align with those you
prepared.
4. For drywall mounting, place the three
PLASTIC RIBBED ANCHORS in the holes
you prepared, and position the SPEAKER
ASSEMBLY over them, aligning the screw
holes in the assembly with the anchors.
5. For drop ceiling mounting*, use the three
8-32 x 1 1/4" MOUNTING SCREWS, #8
NYLON THUMB NUTS, and #8 FENDER
WASHERS to secure the speaker.
For drywall mounting, use the three #8
SHEET METAL SCREWS to secure the
speaker.
* For weak ceiling tile, CyberData offers a
reinforcing mount (CyberData part number
010991A).
http://support.cyberdata.net/
http://support.cyberdata.net/
931190A © 2016, CyberData Corporation, ALL RIGHTS RESERVED
