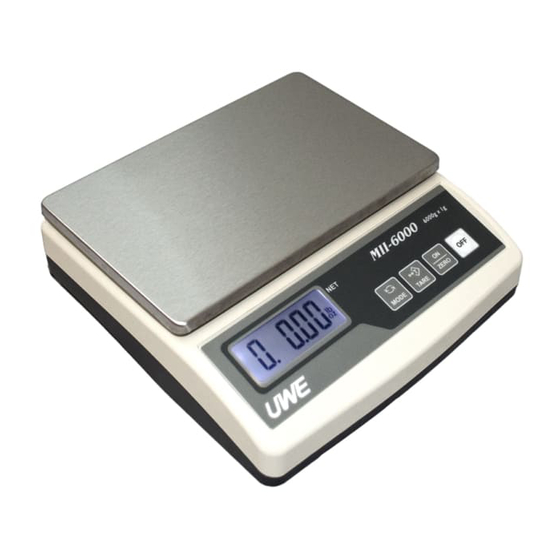

MII SERIES
DIGITAL WEIGHING SCALE
OPERATION MANUAL
THIS PRODUCT HAS A MANUFACTURER SERIAL NUMBER.
IF
MISSING,
THE
MANUFACTURER'S
WARRANTY
IS
INVALID AND THE PRODUCT SHOULD BE RETURNED TO
YOUR RETAILER FOR A FULL REFUND.
PLEASE READ THIS MANUAL VERY CAREFULLY BEFORE
ATTEMPTING TO OPERATE THE SCALE.
March 2006 Rev 1

Advertisement

loading
Need help?

Need help?

Do you have a question about the MII Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Intelligent Weighing Technology MII Series

Summary of Contents for Intelligent Weighing Technology MII Series

  • Page 1 MII SERIES DIGITAL WEIGHING SCALE OPERATION MANUAL THIS PRODUCT HAS A MANUFACTURER SERIAL NUMBER. MISSING, MANUFACTURER’S WARRANTY INVALID AND THE PRODUCT SHOULD BE RETURNED TO YOUR RETAILER FOR A FULL REFUND. PLEASE READ THIS MANUAL VERY CAREFULLY BEFORE ATTEMPTING TO OPERATE THE SCALE.

  • Page 2: Table Of Contents

    CONTENTS 1. INSTALLATION 2. SPECIFICATIONS 3. KEYBOARD LAYOUT AND DESCRIPTION 4. INTERNAL FUNCTIONS AND INITIAL SETUP 5. INSTRUCTION FOR USE 6. ERROR CODES AND TROUBLE SHOOTING 7. DAILY CARE AND MAINTENANCE...

  • Page 3: Installation

    1. INSTALLATION This product has a manufacturer serial number. If missing, the manufacturer’s warranty is invalid and the product should be returned to your retailer for a full refund. 1.1 CHECK and make sure that the following items are included: •...
  • Page 4 Before plugging power adaptor into electricity outlet, check and make sure that input voltage power adaptor matches with the output voltage of the outlet. If not, do not plug in the adaptor, contact your dealer immediately. CAUTION: When the power adaptor is being used, take all battery out from the battery pack.

  • Page 5: Specifications

    2. SPECIFICATIONS Model Capacity Division MII-600 600g/1lb 5.195oz 0.1g/0.005oz MII-1200 1200g/2lb 10.40oz 0.2g/0.01oz MII-3000 3000g/6lb 9.98oz 0.5g/0.02oz MII-6000 6000g/13lb 4.00oz 1g/0.05oz MII-2500 2500g/5lb 8.50oz 1g/0.05oz MII-5000 5000g/11lb 1.0oz 2g/0.1oz 1 x 9V battery or 6 x AA size battery Power Source or External Power Adaptor Max.

  • Page 6: Keyboard Layout And Description

    3. KEYBOARD LAYOUT AND DESCRIPTION 1. OFF KEY Press this key to turn scale off. 2. ON/ZERO KEY Press this key to turn scale on or set weight to zero when unloaded. 3. TARE KEY Press this tare weight containerv 4.
  • Page 7 6. MINUS INDICATOR This indicator will appear when the value being displayed is at negative value. 7. LO-BAT INDICATOR This indicator will appear when the battery voltage low. Replace battery apply external power adaptor immediately. 8. WEIGHT PANEL Weight result is displayed here. 9.

  • Page 8: Internal Functions And Initial Setup

    4. INTERNAL FUNCTIONS AND INITIAL SETUP The scale is equipped with 12 internal functions. They are: - FUNCTION FUNCTION DESCRIPTION NUMBER Fun 1 For Qualified Technical Personnel Only Fun 2 Check Display Segment Fun 3 Select Auxiliary Weight Units Fun 4 Select Auto Power Off Fun 5 Select RS-232 Baud Rate &...
  • Page 9 CAUTION Do not alter any parameters set in Fun 1 & 19, which may cause system unstable or error or not accurate weighing result. enter mistake, press OFF immediately. Contact your dealer for more information. 4.1 SETTING PROCEDURES AND KEY FUNCTION a.
  • Page 10 4.2.2 Select Auxiliary Weight Units 2 auxiliary weight units in addition to metric are available. These Avoirdupois Taiwanese Units. Under this function, scale displays capacity and division followed by the selected weight unit on Weight Panel. Below numeric number 600.1 capacity division of MII-600 (600g x 0.1g), which is used for illustration.
  • Page 11 4.2.4 Select RS-232 Baud Rate & Protocol RS-232 Pin Assignment Table On Scale On Computer 4 x output baud rate and 2 x protocol parameters are available: Baud Rate • br 48 (baud rate = 48) • br 96 (baud rate = 96) •...
  • Page 12 like vibration, wind flow etc. Select higher filter value and for worse environment. Filt2 gives the slowest response compared with other 2 parameters. 4.2.6 Select RS-232 transmission mode 2 parameters are available: - • tran1 (transmission when stabilized) • tran2 (continuous transmission) Strings to be sent to computer are: - •...
  • Page 13 • Tr-On (Auto Tare Function enable) • Tr-OFF (Auto Tare Function disable) Under Auto Tare Function, first load applied to scale will be treated as container and will be tare off automatically. 4.2.9 Select Number Of Printout Copy 9 parameters (copy 1 to copy 9) are available. Select the required number of printout copy here.

  • Page 14: Instruction For Use

    5. INSTRUCTION FOR USE 5.1 BEFORE WEIGHING Make sure that: a. The scale placed level strong surface. b. The plastic platter is placed correctly on top load receptor stainless steel platter cover is placed on the plastic platter. c. The scale is turned on. d.
  • Page 15 The weight unit (used before power off) would be employed when the scale is turned on again. 5.4 SET DISPLAYED VALUE TO ZERO WHEN UNLOADED Press ON/ZERO to set weight displayed to zero when unloaded. Refer to SPECIFICATIONS for maximum zero range.
  • Page 16 5.6 CLEAR THE TARE FUNCTION a. Remove all loads from platter. b. The scale will appear a negative value, which is the weight of the container, and the ZERO INDICATOR appears. c. Press TARE. d. After TARE is pressed, a zero weight will be displayed while the ZERO INDICATOR remains.

  • Page 17: Error Codes And Trouble Shooting

    6. ERROR CODES AND TROUBLE SHOOTING 6.1 ERROR CODE ERROR CODE DESCRIPTION Nostb Calibration weight is not stable Err_1 CPU failure Err_2 Offset value too low Err_3 Offset value too high Contact your dealer immediately when error code appears. 6.2 TROUBLE SHOOTING Syndrome Scale cannot be turned on Check:...
  • Page 18 Syndrome Scale turned off automatically Is the AUTO POWER OFF FUNCTION being employed? Refer to 4.2.3 Select Auto Power Off Function Status Weight Unit disable the Auto Power Off Function. Check: Is the LO-BAT INDICATOR on? Action: Replace the battery with a new one, or apply the power adaptor immediately.

  • Page 19: Daily Care And Maintenance

    DAILY CARE AND MAINTENANCE splash water scale. Clean scale with soft damp cloth. necessary, apply a mild detergent. harsh, abrasive material, acetone, volatile solvent, thinner alcohol for cleaning. Verify the accuracy of scale periodically. Re-calibrate the scale if necessary. NOTE: some countries, calibration...
