6.

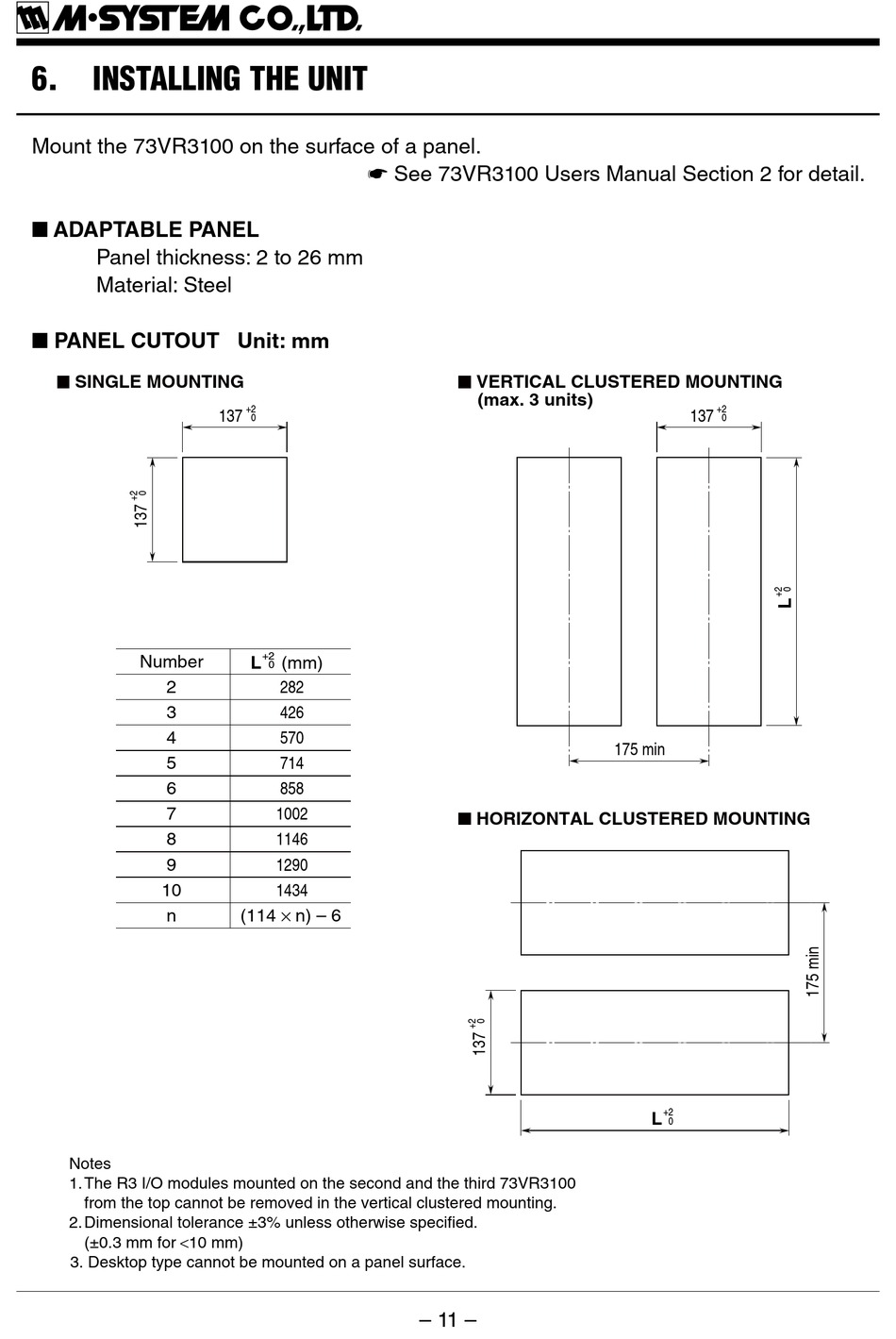

INSTALLING THE UNIT

Mount the 73VR3100 on the surface of a panel.
n ADAPTABLE PANEL
Panel thickness: 2 to 26 mm
Material: Steel
n PANEL CUTOUT Unit: mm
n PANEL CUTOUT Unit: mm
SINGLE MOUNTING
Number
2
3
4
5
6
7
8
9
10
n
Notes
1. The R3 I/O modules mounted on the second and the third 73VR3100
from the top cannot be removed in the vertical clustered mounting.
2. Dimensional tolerance ±3% unless otherwise specified.
(±0.3 mm for <10 mm)
3. Desktop type cannot be mounted on a panel surface.
☛ See 73VR3100 Users Manual Section 2 for detail.
+2
137
0
+2
L (mm)
0
282
426
570
714
858
1002
1146
1290
1434
(114 × n) – 6
VERTICAL CLUSTERED MOUNTING
(max. 3 units)
HORIZONTAL CLUSTERED MOUNTING
– 11 –
+2
137
0
175 min
+2
L
0
