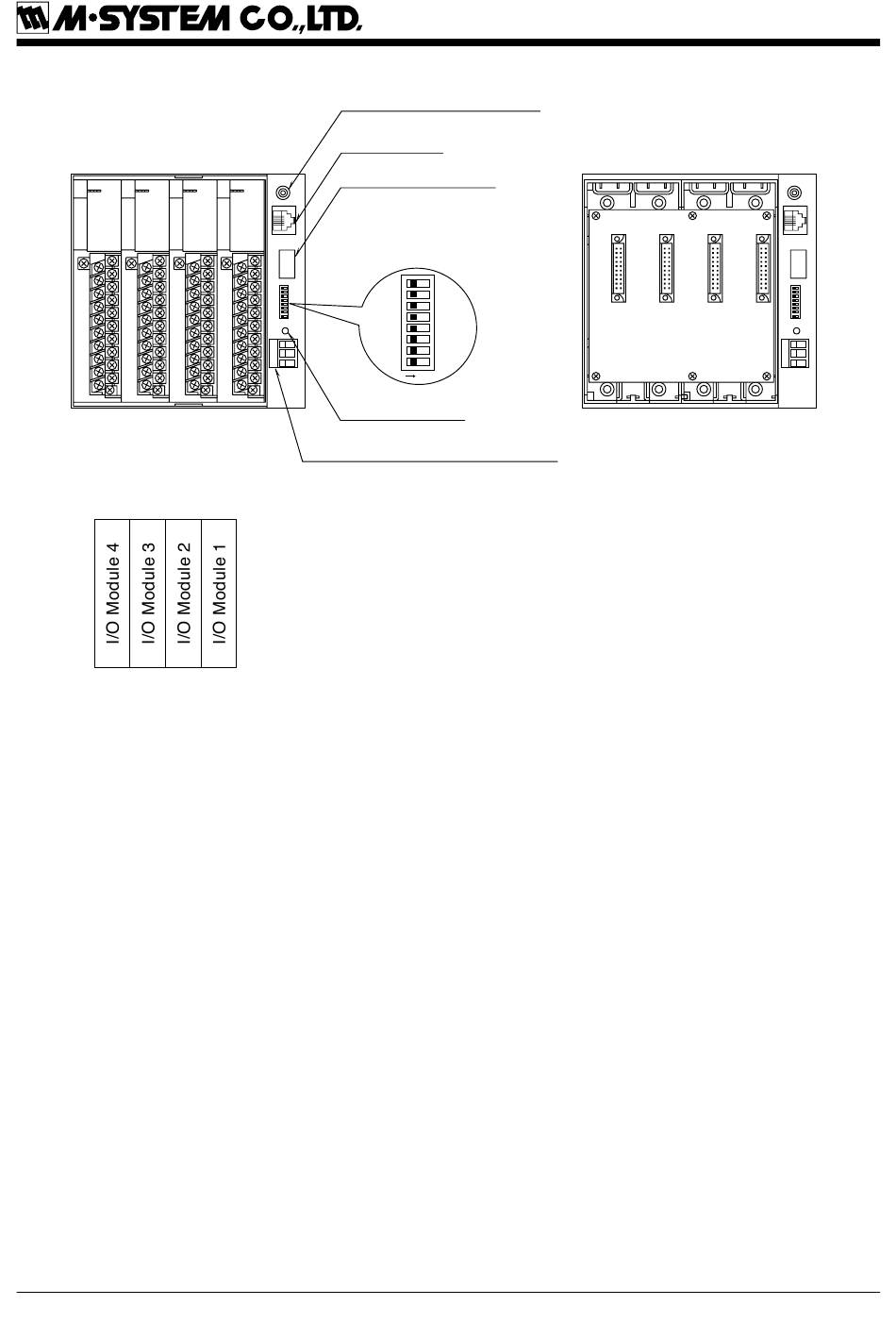

I REAR VIEW
• With I/O Modules
• I/O Module Assignment
(8) PC Configurator Port
Used to program with the R3 Configurator Software.
(9) LAN Port
Connects the LAN cable (10BASE-T or 100BASE-TX)
(10) I/O Data Allocation DIP Switch
Assigns the required data area for each I/O module.
Four (4) modes (1, 4, 8 and 16) are selectable depending upon the number of I/Os.
(11) Power LED
Light turns on while the power is supplied.
(12) Power input terminal block
(8) PC Configurator Port
(9) LAN Port
(7) USB Connector
(10) I/O Data Allocation
DIP SW
8
7
6
5
4
3
2
1
ON
(11) Power LED
(12) Power Input Terminal Block
– 8 –
• Without I/O Modules
