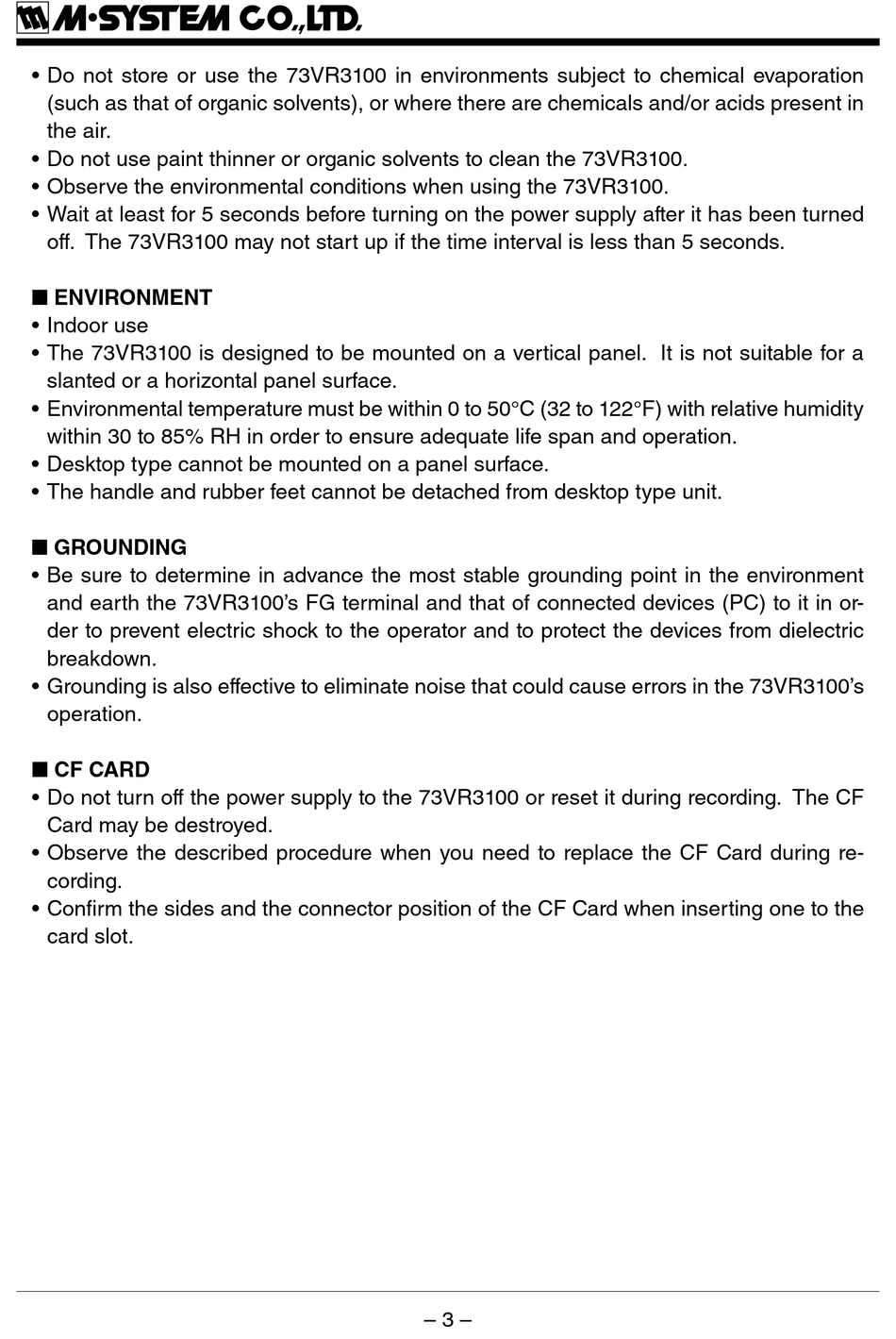

• Do not store or use the 73VR3100 in environments subject to chemical evaporation
(such as that of organic solvents), or where there are chemicals and/or acids present in
the air.
• Do not use paint thinner or organic solvents to clean the 73VR3100.
• Observe the environmental conditions when using the 73VR3100.
• Wait at least for 5 seconds before turning on the power supply after it has been turned
off. The 73VR3100 may not start up if the time interval is less than 5 seconds.
n ENVIRONMENT
• Indoor use
• The 73VR3100 is designed to be mounted on a vertical panel. It is not suitable for a
slanted or a horizontal panel surface.
• Environmental temperature must be within 0 to 50°C (32 to 122°F) with relative humidity
within 30 to 85% RH in order to ensure adequate life span and operation.
• Desktop type cannot be mounted on a panel surface.
• The handle and rubber feet cannot be detached from desktop type unit.
n GROUNDING
• Be sure to determine in advance the most stable grounding point in the environment
and earth the 73VR3100's FG terminal and that of connected devices (PC) to it in or-
der to prevent electric shock to the operator and to protect the devices from dielectric
breakdown.
• Grounding is also effective to eliminate noise that could cause errors in the 73VR3100's
operation.
n CF CARD
• Do not turn off the power supply to the 73VR3100 or reset it during recording. The CF
Card may be destroyed.
• Observe the described procedure when you need to replace the CF Card during re-
cording.
• Confirm the sides and the connector position of the CF Card when inserting one to the
card slot.
– 3 –
