I N S T A L L A T I O N M A N U A L X - S T R E A M ™ S L I D E

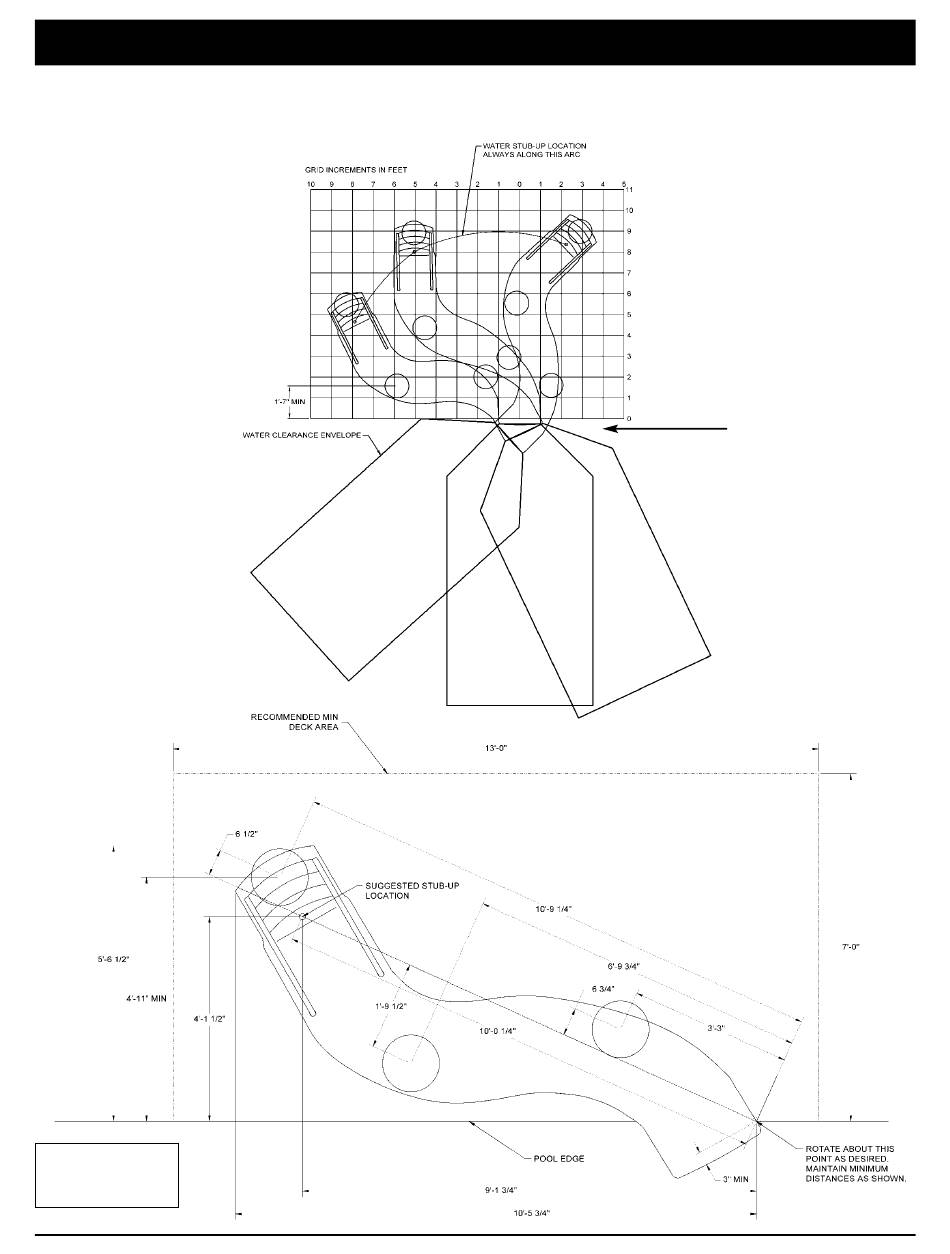

SLIDE PLACEMENT DIAGRAM & FOOTPRINT DIAGRAM
X-Stream Slide - Right Turn
DIAGRAM F
(NOT TO SCALE)
3" MINIMUM
OVERHANG
DIAGRAM G
(NOT TO SCALE)
RECOMMENDED
MIN. DECK AREA:
13' x 7'
XS-IM Rev. 7/08 (SBK-XS INSTALL) 6
