Dell EMC Networking N-Series
N2200 Switches
Getting Started Guide
Version 6.6.1
Regulatory Model: E41W

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Networking N Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Dell EMC Networking N Series

Summary of Contents for Dell EMC Networking N Series

  • Page 1 Dell EMC Networking N-Series N2200 Switches Getting Started Guide Version 6.6.1 Regulatory Model: E41W...
  • Page 2 This product is protected by U.S. and international copyright and intellectual property laws. Dell EMC™ and the Dell EMC logo are trademarks of Dell EMC Inc. in the United States and/or other jurisdictions. All other marks and names mentioned herein may be trademarks of their respective companies.

  • Page 3: Table Of Contents

    ....N2200 Series Hardware Overview ..Dell EMC Networking N2200-ON Series Switch Hardware 4 N2200 Installation ....
  • Page 4 Chassis Physical Design ....Dell EMC Support ....

  • Page 5: Introduction

    NOTE: Switch administrators are strongly advised to maintain Dell EMC Networking switches on the latest version of the Dell EMC Networking Operating System (DNOS). Dell EMC Networking continually improves the features and functions of DNOS based on feedback from you, the customer. For critical...

  • Page 6: N2200 Series Hardware Overview

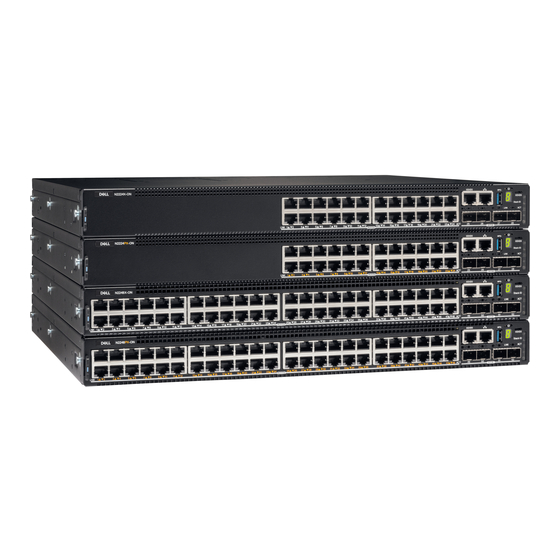

    Reset button • Port and system LEDs • Stack Master LED and Stack Number Display • Type-A USB 3.0 port for storage • Out-of-band Ethernet interface The following images show a representative front panel of the Dell EMC Networking switch.
  • Page 7 Figure 1-1. Dell EMC Networking N2248PX-ON Switch (Front Panel) N2200-ON Series Rear Panel The Dell EMC Networking N2200-ON Series back panel has two 40G QSFP stacking ports in the rear. It also has two slots for power supplies, and two (N2224X-ON/N2224PX-ON) or three (N2248X-ON/N2248PX-ON) hot-swap fan trays.
  • Page 8 mode. All four SFP28 ports must be configured to operate at the same speed. 25GBASE-CR and 10G-BASE-CR modes (copper twin-ax or DAC cables) require the use of auto-negotiation. • The default behavior is to log a message and generate an SNMP trap on insertion or removal of a transceiver that is not qualified by Dell.
  • Page 9 N2200-ON Series USB Port The Type-A, female USB port supports a USB 3.0-compliant flash memory drive. The Dell EMC Networking N-Series switch can read or write to a flash drive with a single partition formatted as FAT-32. Use a USB flash drive to copy switch configuration files and images between the USB flash drive and the switch.
  • Page 10 The Dell EMC Networking N2224PX-ON switches have a field-replaceable 1050-watt power supply (DPS-1050 AC) feeding up to 16x30W PoE and 2x60W devices at full power (712W). The Dell EMC Networking N2248PX- ON switches have an internal 1050W power supply (DPS-1050 AC) feeding up to 16x30W PoE devices and 1Xx60W at full power (624W).
  • Page 11 This section describes the LEDs on the front and back panels of the switch. Port LEDs Each port on a Dell EMC Networking N2200-ON Series switch includes two LEDs. One LED is on the left side of the port, and the second LED is on the right side of the port.
  • Page 12 Table 1-2 shows the 100/1000/10000BASE-T port LED definitions. Table 1-2. 100/1000/10000BASE-T Port LED Definitions Color Definition Link/SPD LED Off There is no link. Solid yellow The port is operating at 10/100 Mbps. Solid green The port is operating at 1000 Mbps. Activity/PoE There is no current transmit/receive activity LED (on PoE...
  • Page 13 Table 1-4. SFP+ Port LED Definitions Color Definition Link/SPD LED There is no link. (Left bi-color Solid green The port is operating at 10 Gbps. LED) Solid amber The port is operating at 1 Gbps. Activity LED There is no current transmit/receive activity. (Right single- Blinking green The port is actively transmitting/receiving.
  • Page 14 System LEDs The system LEDs, located on the front panel, provide information about the power supplies, thermal conditions, and diagnostics. Table 1-8 shows the System LED definitions for the Dell EMC Networking N2200 switches. Table 1-8. N2200-ON Series System LED Definitions...

  • Page 15: N2200 Installation

    Table 1-8. N2200-ON Series System LED Definitions (Continued) Color Definition System Beacon Locator function is not enabled. Flashing blue Location function is enabled. Stack Master The switch is not stack master. Solid green The switch is master for the stack or a standalone unit.

  • Page 16: Unpacking The N2200 Switch

    Unpacking the N2200 Switch Package Contents When unpacking each switch, make sure that the following items are included: • One Dell Networking switch • One RJ-45 to DB-9 female cable • One rack-mount kit (N2200) for rack installation, two mounting brackets, bolts, and cage nuts •...
  • Page 17 CAUTION: Disconnect all cables from the switch before continuing. Remove all self-adhesive pads from the underside of the switch, if they have been attached. CAUTION: When mounting multiple switches into a rack, mount the switches from the bottom up. 1 Place the supplied rack-mounting bracket on one side of the switch, ensuring that the mounting holes on the switch line up to the mounting holes in the rack-mounting bracket.

  • Page 18: Stacking Multiple N2200 Switches

    Installing as a Free-standing Switch NOTE: We strongly recommend mounting the switch in a rack. Install the switch on a flat surface if you are not installing it in a rack. The surface must be able to support the weight of the switch and the switch cables.
  • Page 19 Figure 1-6. Connecting a Stack of Switches Unit 1 Unit 2 Unit 3 The stack in Figure 1-6 is connected in a ring topology and has the following physical connections between the switches: • The bottom QSFP port on Unit 1 is connected to the top QSFP port on Unit 2.

  • Page 20: Starting And Configuring The N2200 Switch

    Starting and Configuring the N2200 Switch The following flow chart provides an overview of the steps you use to perform the initial configuration after the switch is unpacked and mounted. Installation and Configuration Flow Chart Figure 1-7.

  • Page 21: Connecting A N2200 Switch To A Terminal

    Connecting a N2200 Switch to a Terminal After completing all external connections, connect a terminal to a switch to configure the switch. NOTE: Read the Release Notes for this product before proceeding. You can download the Release Notes from the Dell Support website at dell.com/support/manuals.

  • Page 22: Connecting A N2200 Switch To A Power Source

    3 Connect the RJ-45 connector on the cable directly to the switch console port. The Dell Networking console port is located on the right side of the front panel and is labeled with a |O|O| symbol, as shown in Figure 1-8 on page 20.

  • Page 23: Booting The N2200 Switch

    4 If you are using a redundant or external DC power supply, such as the Dell Networking RPS720, connect the DC power cable to the DC receptacle located on the back panel. In Figure 1-9 on page 21, the redundant power supply feed is in the middle and is labeled RPS.
  • Page 24 • The Dell Networking switch booted successfully. • The console connection was established, and the Dell Easy Setup Wizard prompt appears on the screen of a VT100 terminal or terminal equivalent. The initial switch configuration is performed through the console port. After the initial configuration, you can manage the switch from the already- connected console port or remotely through an interface defined during the initial configuration.
  • Page 25 Initial Configuration Procedure You can perform the initial configuration by using the Dell Easy Setup Wizard or by using the CLI. The wizard automatically starts when the switch configuration file is empty. You can exit the wizard at any point by entering [ctrl+z], but all configuration settings specified will be discarded, and the switch will use the default values.
  • Page 26 • The default gateway is 10.1.1.1 The setup wizard configures the initial values as defined above. After completing the wizard, the switch is configured as follows: • SNMPv2 is enabled and the community string is set up as defined above. SNMPv3 is disabled by default.
  • Page 27 Would you like to run the setup wizard (you must answer this question within 60 seconds)? [Y/N] y Step 1: The system is not set up for SNMP management by default. To manage the switch using SNMP (required for Dell Network Manager) you can Set up the initial SNMP version 2 account now.
  • Page 28 Now we need to set up your initial privilege (Level 15) user account. This account is used to login to the CLI and Web interface. You may set up other accounts and change privilege levels later. For more information on setting up user accounts and changing privilege levels, see the user documentation.
  • Page 29 This is the configuration information that has been collected: SNMP Interface = “public”@10.1.2.100 User Account setup = admin Password = ******** VLAN1 Router Interface IP = 10.1.1.200 255.255.255.0 Default Gateway = 10.1.1.1 Step 6: If the information is correct, please enter (Y) to save the configuration and copy the settings to the start-up configuration file.
  • Page 30 Your N2200-ON switch supports basic switching features such as VLANs and spanning tree protocol. Use the Web-based management interface or the CLI to configure the features your network requires. For information about how to configure the switch features, see the User’s Configuration Guide or CLI Reference Guide available on the support site: dell.com/support/manuals.
  • Page 31 • N2248PX-ON: 170 W = 1111.66 BTU/hr Maximum operational altitude 10,000 feet (3,048 meters) Maximum non-operational altitude 39,370 feet (12,000 meters) Shock Dell EMC Spec SV0115 Table 1-11. Power Consumption Parameters Parameter Specifications Input voltage AC: 100–240 VAC 50/60 Hz DC: –40 VDC to –60 VDC...
  • Page 32 Table 1-11. Power Consumption Parameters (Continued) Parameter Specifications Total PoE budget • N2224PX-ON: 1080 W NOTE: To support a full-load PoE power • N2248PX-ON: 2160 W budget, you must have external PSUs for the N224PX-ON switch. For the N2248P-ON, use the EPS for full-load PoE redundancy.
  • Page 33 Table 1-13. DC power requirements (Continued) Parameter Specifications Maximum power consumption without PoE • N2224X-ON: 238W @ 54 VDC • N2224PX-ON: 238W @ 54 VDC • N2248X-ON: 326W @ 54 VDC • N2248PX-ON: 326W @ 54 VDC...
  • Page 34 Dell EMC Support The Dell EMC support site provides documents and tools to help you use Dell EMC equipment and mitigate network outages. Through the support site you can obtain technical information, access software upgrades and patches, download available management software, and manage your open cases.
  • Page 35 Diag Version 0x2E 10 x.xx.x.x-x CRC-32 0xFE 0x17E6ED32 Checksum is valid. ONIE:/ # To access switch documentation, go to www.dell.com/support. To search for drivers and downloads, go to www.dell.com/drivers/. To participate in Dell EMC community blogs and forums, go to www.dell.com/community.
  • Page 38 Printed in the U.S.A. www.d ell.com | sup por t . de l l . c om...
