7.1 Enable alignment

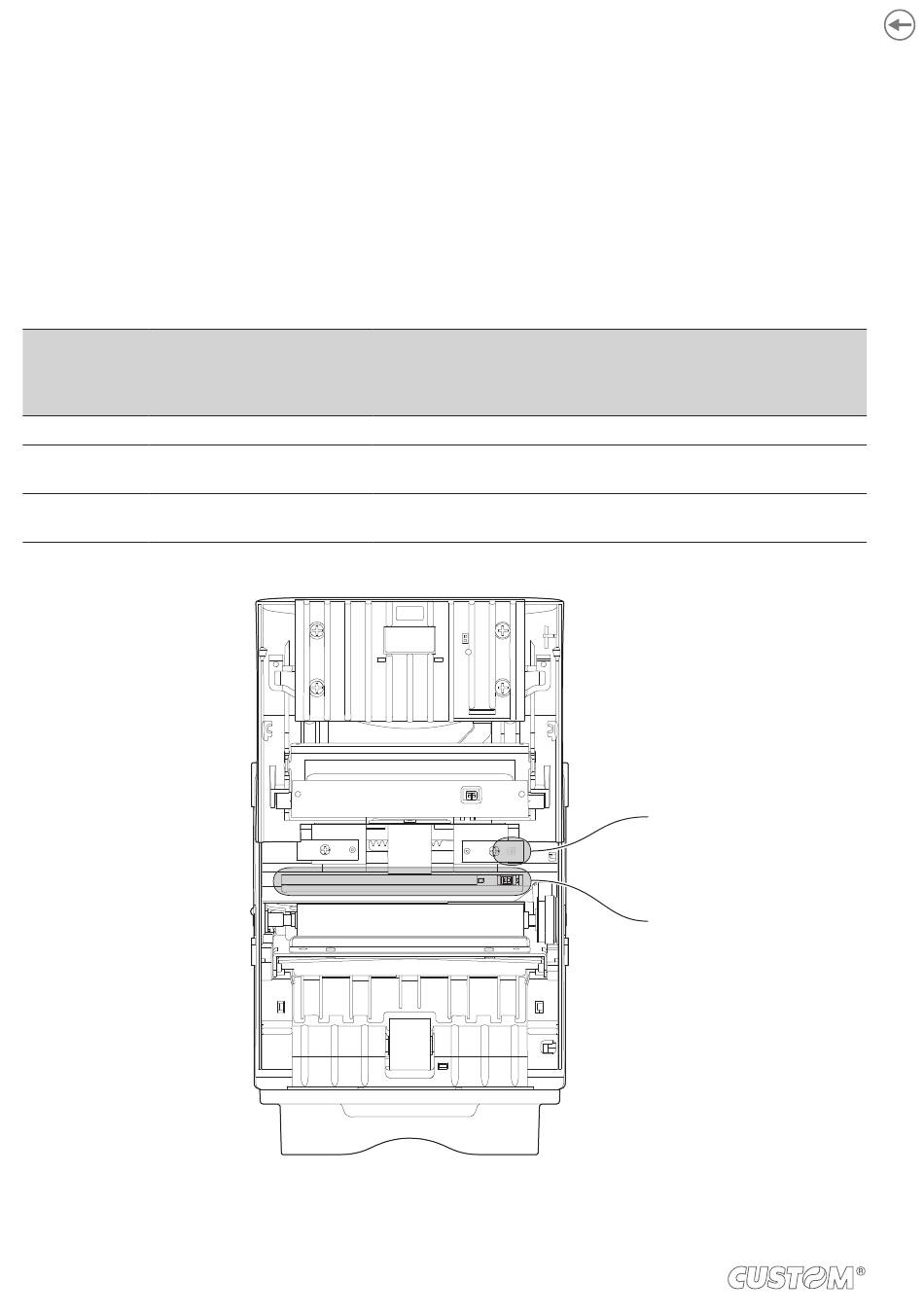

Device is provided with two sensors for alignment, placed as follows:
• one mobile sensor facing the non-thermal side of paper
one ixed sensor (optional) facing the thermal side of paper.
•
To guarantee the alignment, it is necessary to correctly choose the sensor to use for the black mark detection depending
on the location of the black mark on ticket.
To do this, you must enable the parameter "Black Mark Position" during the setup procedure (see
correct value of this parameter as described in the following table.
SENSOR
USED
"BLACK MARK POSITION"
(see following
igures)
-
1
2
* only for models with upper black mark sensor and with VKP80III emulation enabled.
80
VALUE OF THE
PARAMETER
Disabled
Bottom
Top Side *
USING MODE
OF SENSORS
-
Relection
Relection
chapter 6) and set the
BLACK MARK TYPE
Alignment disabled
Black mark printed on the
non-thermal side of paper
Black mark printed on the
thermal side of paper
Sensor 2
(optional)
Sensor 1
