VKP80III ETH
2

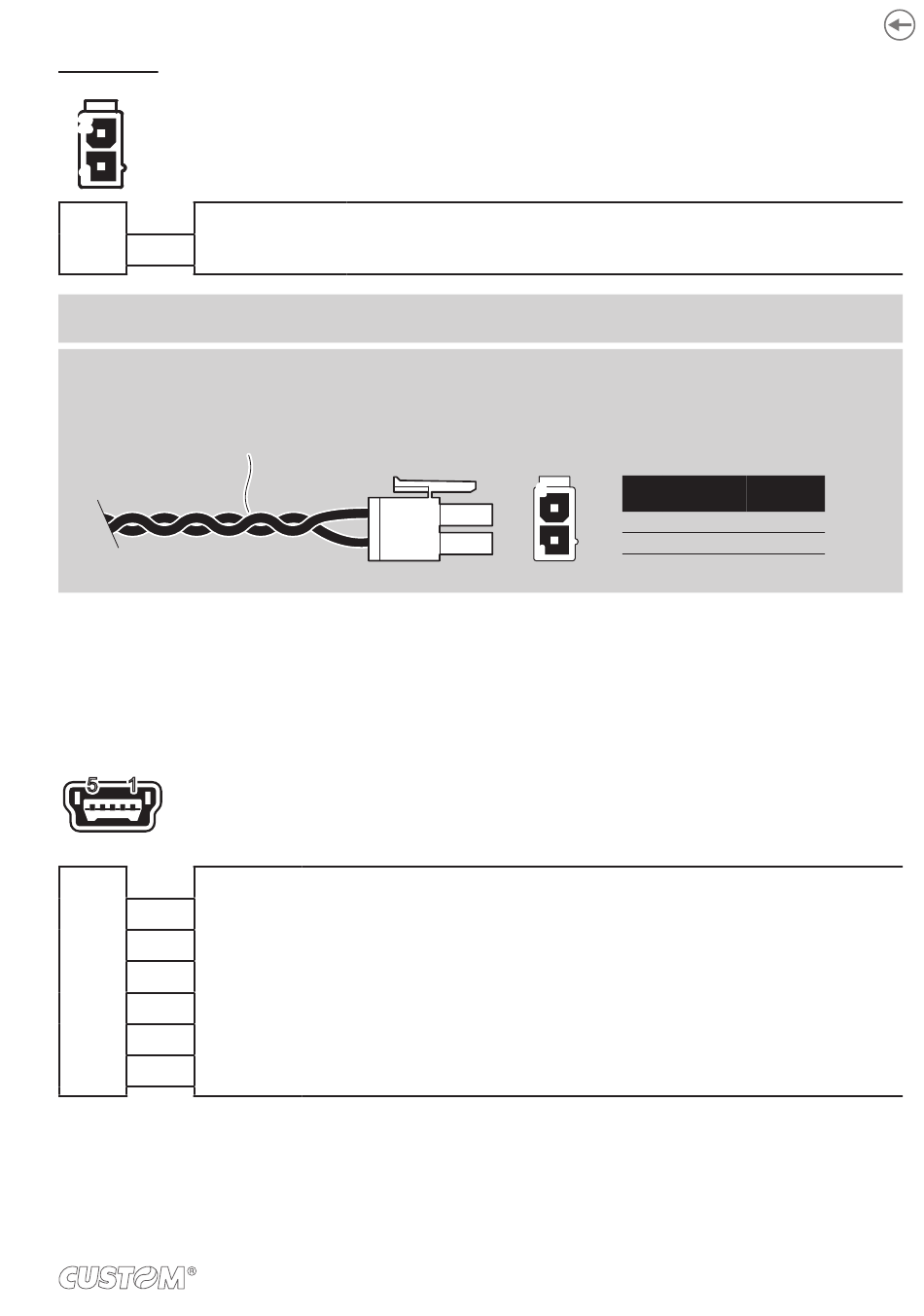

POWER SUPPLY
Male Molex connector series 5569 vertical (n° 39-30-1020)
1
1 +24 Vdc
J13
2 GND
ATTENTION:
Respect power supply polarity.
NOTE: Power supply cable
The following igure shows the connector pinout of the power supply cable for the device:
Power supply cable
5 1
MINI-USB INTERFACE
Female Mini-USB type B connector
1 USB0_VBUS (in)
2 USB0_D-
3 USB0_D+
4 n.c.
J2
5 GND
SH1 SHIELD
SH2 SHIELD
(in/out)
(in/out)
Female Molex connector
series 5557 (n.39-01-3022)
PIN Cable
2
color
1 Red
2 Black
1
Signal
+24V
GND
