4.2 Connections

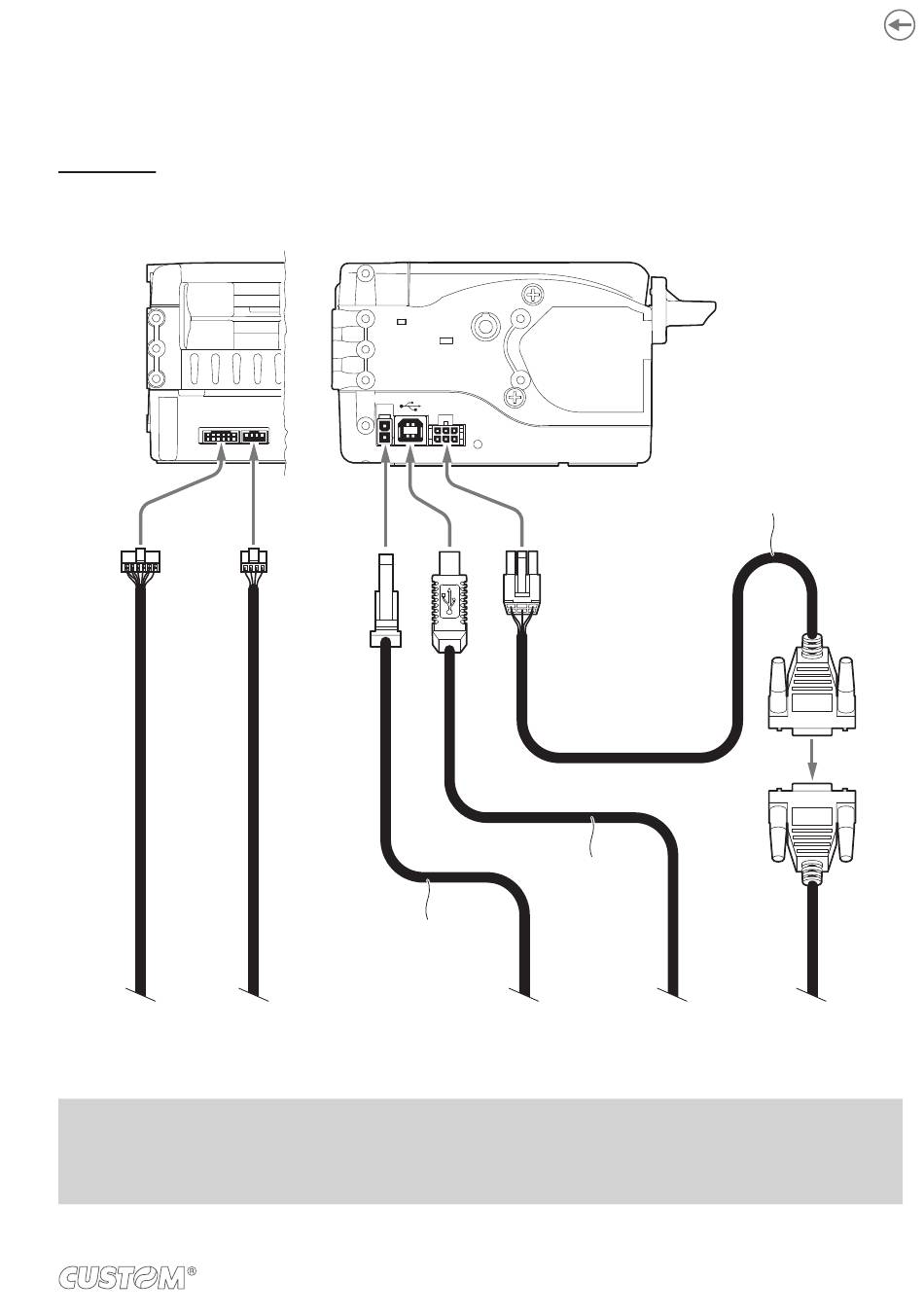

The following igures show the possible connections for the device.
VKP80III LAT
When the RS232 and USB communication cables are connected to the device at the same time, communication takes
place via the USB port.
I/O
External External
device low paper
ATTENTION:
It is recommended to secure with a tie the adapter cable MICROFIT-6PIN/DB9 to a ixed support in order to prevent the
connector on control board bears the weight of the cables.
In some using conditions, we recommend the installation of a ferrite core on the power supply cable.
24Vdc
LOW
PAPER
Power supply cable
(optional)
RS232
USB
standard cable
Power supply
Adapter cable
MICROFIT-6PIN/DB9
(optional)
PC PC
USB device serial device
