Configuring Ports

Choose the menu Switching > Port Setting to load the following page.

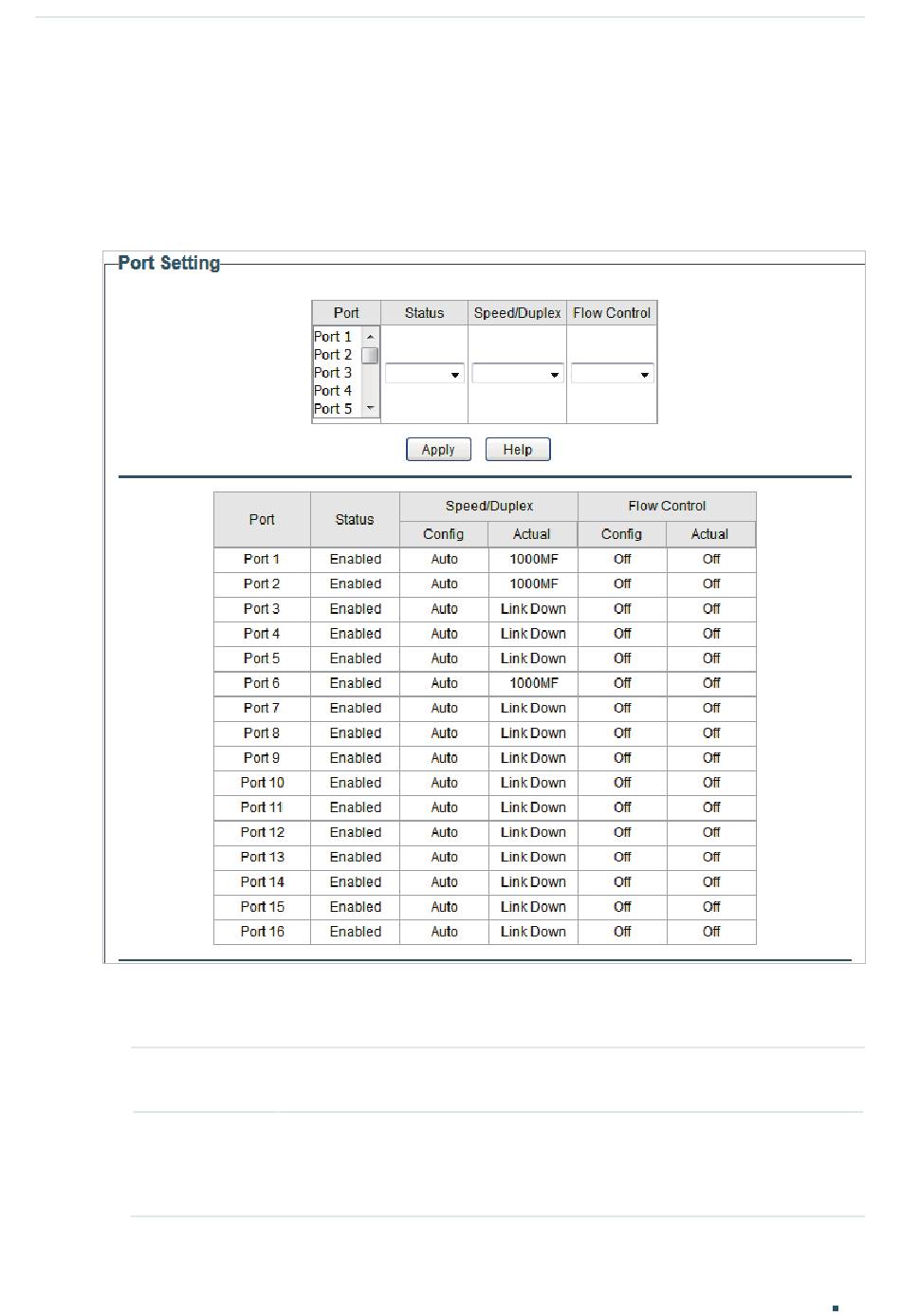

Figure 2-1 Configuring Ports
Follow these steps to configure the port parameters.
1) Select the desired ports and set basic parameters for the ports.
Status
Speed/Duplex
Enable or disable the port. With this option enabled, the port forwards packets
normally. Otherwise, the port cannot work. By default, it is enabled.
Select the appropriate speed and duplex mode for the port. When Auto is
selected, the port automatically negotiates speed mode with the connected
device. It is recommended to select Auto if both ends of the link support auto-
negotiation.
