Configuring VLAN
Configuration Example for 802.1Q VLAN
2) Choose the menu VLAN > 802.1Q VLAN to load the following page and create VLAN 2.
Specify VLAN ID as 2, add port 2 to the VLAN as an untagged port, and add port 4 to the
VLAN as a tagged port. Click Add/Modify.

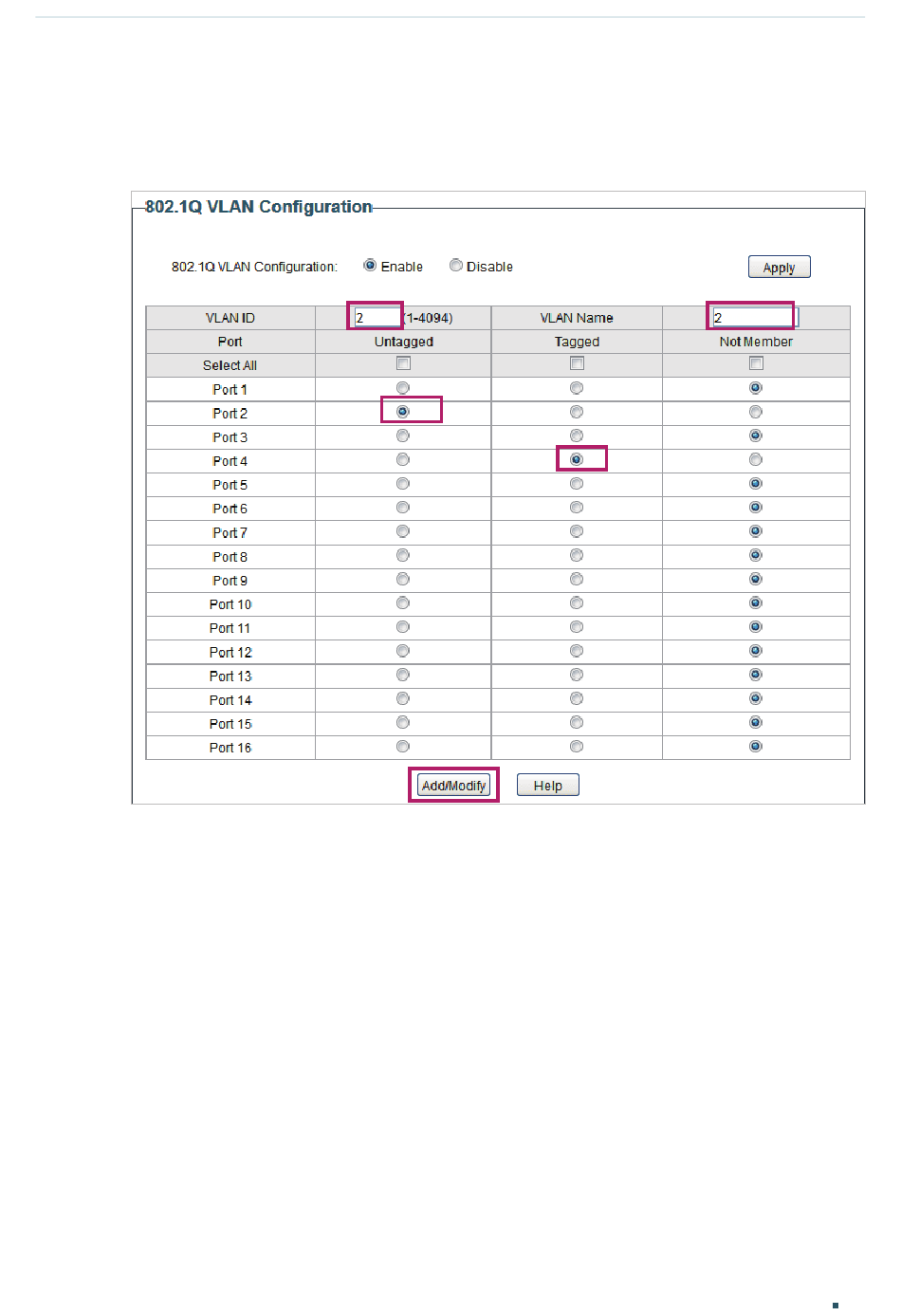

Figure 5-3 Creating VLAN 2 and Adding Ports to the VLAN
User Guide
56
