Installation Guide
Unmanaged Desktop PoE+/PoE++ Switch
Switches Explanation
Note: The numbers in brackets indicate the ports where the feature takes effect. For example, when Extend(1-4) is toggled to On, the Extend mode will be enabled for ports 1-4.
Extend
(for TL-SG1008P/TL-SG1210P/TL-SG1210MP/TL-SG1210PP)
Off: Ports run at 10/100/1000 Mbps and support PoE power supply up to 100 m away.
On: Ports run at 10 Mbps and support PoE power supply up to 250 m away.
Priority
(for TL-SG1210P/TL-SG1210MP/TL-SG1210PP)
Off: All the ports transmit data with the same priority.
On: The specific ports transmit data with a higher priority than other ports.
Note: For simplicity, we will take TL-SG1008P for example throughout the Guide.

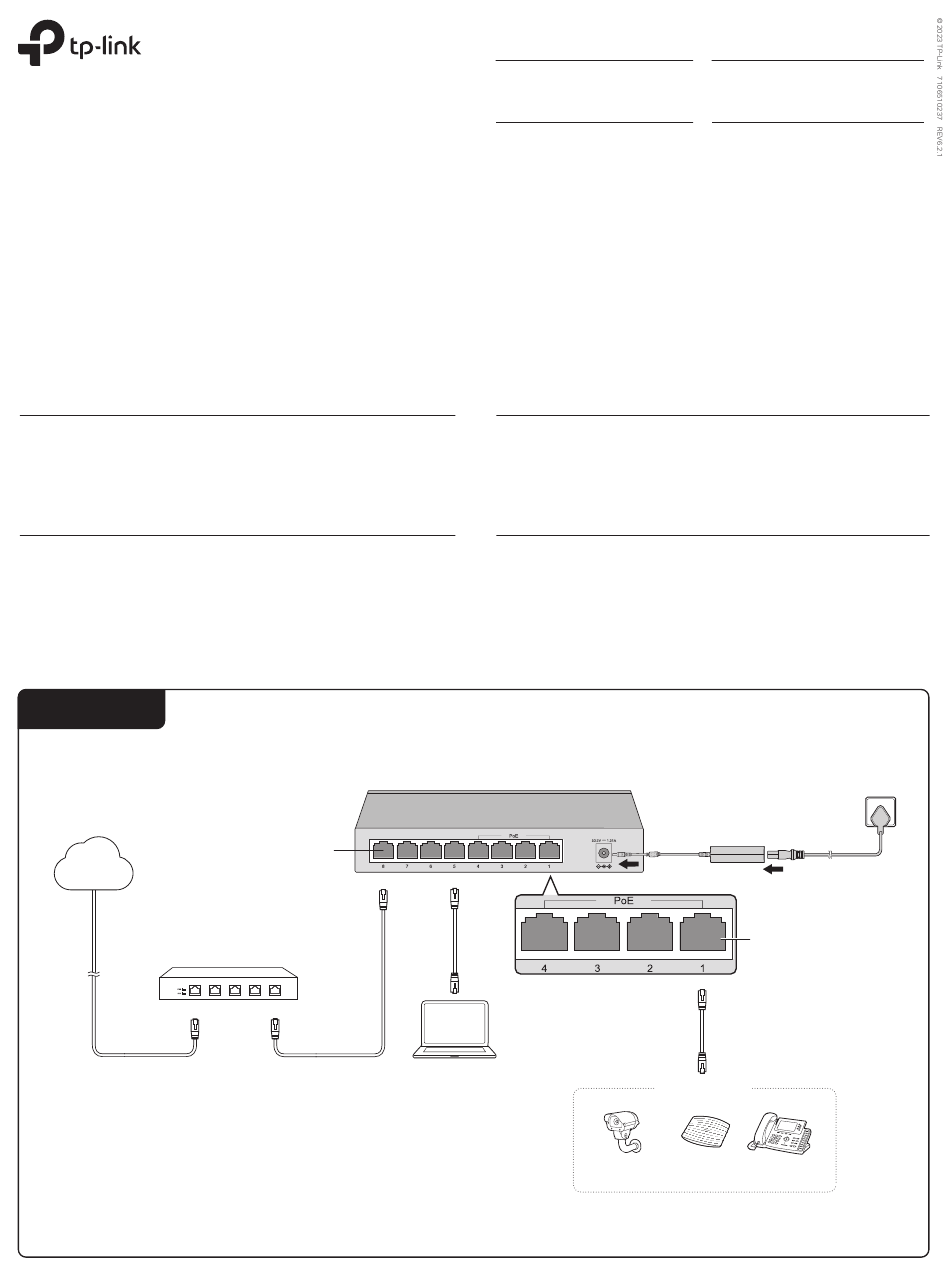

Connection
Internet
WAN Port
Note:
1.
PoE ports can also connect to non-PoE devices, but only transmit data.
2.
TL-SG1210P/TL-SG1210MP/TL-SG1210PP has two uplink ports, which typically connect to uplink devices
like routers.
3.
The combo port of TL-SG1210MP/TL-SG1210PP consists of one RJ45 port and one SFP slot, which
cannot be used simultaneously.
4.
The SFP slot of TL-SG1210P/TL-SG1210MP/TL-SG1210PP needs to work with a gigabit SFP module.
Ethernet Ports (1-8)
Router
LAN Port
LED Explanation
Power
On:
Power on
Off:
Power off
Link/Act; Uplink 1, Uplink 2
Green On:
Running at 1000 Mbps, but no activity.
Green Flashing:
Running at 1000 Mbps and is transmitting or
receiving data.
Yellow On:
Running at 10/100 Mbps, but no activity.
Yellow Flashing:
Running at 10/100 Mbps and is transmitting
or receiving data.
Off:
No device is linked to the corresponding port.
Recovery
(for TL-SG1008P/TL-SG1210P/TL-SG1210MP/TL-SG1210PP)
Off: The PoE Auto Recovery function is disabled.
On: The switch will constantly detect the working status of a PoE powered device (PD).
When the switch finds that the PD works abnormally, the switch will reboot it.
Isolation
(for TL-SG1210P/TL-SG1210MP/TL-SG1210PP)
Off: Ports can transmit data with each other.
On: Specific ports cannot transmit data with other downlink ports. They can transmit data
only with the uplink ports.
PC
IP Camera
PoE Status
On: Providing PoE power
Flashing: PoE fault
Off: Not providing PoE power
PoE Max
For TL-SG1008P:
On:
57 W≤Total power supply < 64 W
Flashing:
Total power supply ≥ 64 W
Off:
Total power supply < 57 W
For TL-SG1210P:
On: 56 W≤Total power supply < 63 W
Flashing: Total power supply ≥ 63 W
Off: Total power supply < 56 W
For TL-SG1210MP/TL-SG1210PP:
On: 116 W≤Total power supply < 123 W
Flashing: Total power supply ≥ 123 W
Off: Total power supply < 116 W
DC Power Adapter
AC Power Cord
PoE Ports (1-4)
PoE Devices
AP
IP Phone
