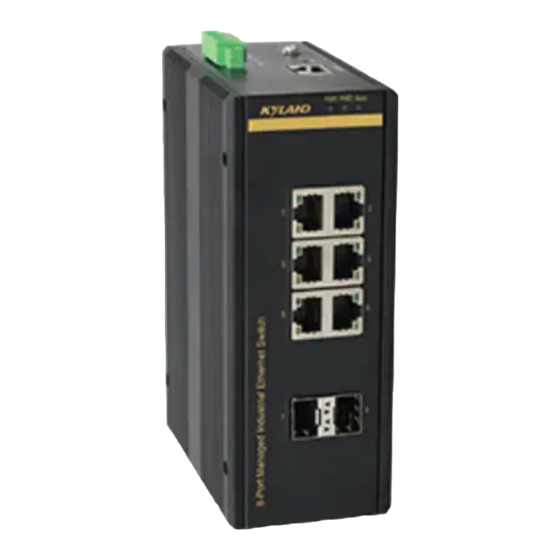

- Page 1 SICOM3008GV Series Industrial Ethernet Switch Hardware Installation Manual Publication Data: Oct. 2018 Version: V1.1...
- Page 2 All rights reserved. No part of this documentation may be excerpted, reproduced, translated, annotated or duplicated, in any form or by any means without the prior written permission of KYLAND Corporation. Copyright © 2018 Kyland Technology Co., Ltd.
- Page 3 Before using the device, read this notice carefully for personal and equipment safety. Please keep the manual for further reference. Kyland is not liable to any personal or equipment damage caused by violation of this notice.
- Page 4 Dispose of the device in accordance with relevant national provisions, preventing environmental pollution. In the following cases, please immediately shut down your power supply and contact your Kyland representative: Water gets into the equipment. Equipment damage or shell damage.
-
Page 5: Table Of Contents
CONTENTS Product Overview ......................1 Structure and Interface ....................3 2.1 Front Panel ........................ 3 2.2 Top Panel ........................5 Mounting ........................6 3.1 Dimension Drawing ....................6 3.2 Mounting Modes and Steps ..................8 3.2.1 Mounting ......................8 3.2.2 Wall Mounting ..................... 9 Connection ........................ -
Page 6: Product Overview
Product Overview Product Overview Managed video surveillance SICOM3008GV series Industrial Ethernet Switch applied in the ITS, highway, industrial automation, oil&gas and many other industries. Managed video surveillance series are applicable to harsh and hazardous industrial environments due to its high-performance... - Page 7 Product Overview Note: We reserve the right to amend the product information listed in this table without notice. To obtain the latest information, contact our sales or technical support personnel.
-
Page 8: Structure And Interface
Structure and Interface Structure and Interface Caution: It is recommended to purchase the port dustproof shield (optional) to keep ports clean and ensure switch performance. 2.1 Front Panel Figure 1 Front Panel of SICOM3008GV-2GX6GE-L15-L15 Table 2 Description of the Front Panel Identifier Description two 100/1000Base-X,10/100/1000Base-T(X) SFP slots... - Page 9 Structure and Interface Figure 2 Front Panel of SICOM3008GV-8GE-L15-L15 Table 3 Description of the Front Panel Identifier Description eight 10/100/1000Base-T(X) ports PWR1 Power 1 LED PWR2 Power 2 LED Alarm Alarm LED...
-
Page 10: Top Panel
Structure and Interface 2.2 Top Panel Figure 3 Top Panel Table 4 Description of the Top Panel Identifier Description PWR1 Power terminal block 1 Console Console port Reset Reset button for switch Alarm relay output Grouding screw PWR2 Power terminal block 2... -
Page 11: Mounting
Mounting Mounting 3.1 Dimension Drawing SICOM3008GV-2GX6GE-L15-L15 Figure 4 Dimensions of SICOM3008GV-2GX6GE-L15-L15 (unit: mm) - Page 12 Mounting SICOM3008GV-8GE-L15-L15 Figure 5 Dimensions of SICOM3008GV-8GE-L15-L15 (unit: mm)
-
Page 13: Mounting Modes And Steps
Mounting Caution: As part of the heat dissipation system, the switch housing becomes hot during operation. Please use caution when coming in contact and avoid covering the switch housing when the switch is running. The figures in this manual are only for reference. 3.2 Mounting Modes and Steps The series switches support DIN-rail and panel mounting. -
Page 14: Wall Mounting
Mounting Figure 6 DIN-Rail Mounting 3.2.2 Wall Mounting Note: Purchase the plate (optional) for panel mounting. Wall Mounting Screw the wall-mount brackets with screws in the accessory kit. Figure 7 Wall Mounting... -
Page 15: Connection
Connection Connection 4.1 10/100/1000Base-T(X) Ethernet Port 10/100/1000Base-T(X) Ethernet port is equipped with RJ45 connector. The port is self-adaptive. It can automatically configure itself to work in 10M, 100M, or 1000M state, full or half duplex mode. The port can also adapt to MDI or MDI-X connection automatically. You can connect the port to a terminal or network device with a straight-through or cross-over cable. -
Page 16: 100/1000Base-X, 10/100/1000Base-T(X) Sfp Slot
Connection Figure 9 Connection Using Straight-through/Cross-over Cable Note： The color of the cable for RJ45 connector meets the 568B standard: 1-orange and white, 2-orange, 3-green and white, 4-blue, 5-blue and white, 6-green, 7-brown and white, and 8-brown. 4.2 1000Base-X, 10/100/1000Base-T(X) SFP slot 1000Base-X, 10/100/1000Base-T(X) SFP slot (gigabit SFP slot) requires an SFP optical/electrical module to enable data transmission. -
Page 17: Gigabit Sfp Optical Module
Connection 4.2.1 Gigabit SFP Optical Module Figure 10 Gigabit SFP Optical Module An SFP optical module is equipped with LC connector, and each port consists of a TX (transmit) port and an RX (receive) port. To enable communication between Device A and Device B, connect the TX port of Device A to the RX port of Device B, and the RX port of Device A to the TX port of Device B, as shown in the following figure. -
Page 18: Gigabit Sfp Electrical Module
Connection If the LED is on, the connection is correct. If the LED is off, the link is not connected. This may be caused by incorrect connection of the TX and RX ports. In this case, swop the two connectors at one end of the fibers. Caution: ... - Page 19 Connection ● DB9 connector connect to computer COM port ● Baud rate: 115200bps ● 8 data bits, 1 stop bit ● None Priority ● None flow control Figure 15 Console connector To connect the host PC to the console port, a RJ45 (male) connector-to-RS232 DB9 (female) connector cable is required.
-
Page 20: Grounding/ Power Terminal Block/ Alarm Terminal Block
Connection Figure 16 Console connector Define Table 7 Pin Definitions of DB9 Port (9-Pin Serial Port) and RJ45 Port (Console Port) DB9 Port (9-Pin Serial Port) RJ45 Port (Console Port) Signal Signal RXD (Receive data) RXD (Receive data) TXD (Transmit data) TXD (Transmit data) DGND (Grounding) DGND (Grounding) -
Page 21: System Reset
Connection The switch supports power input (as listed in Table 1). Before connecting the device to power supply, make sure that the power input meets the power requirement. If connected to an incorrect power input, the device may be damaged. Warning: ... -
Page 22: Leds
LEDs LEDs Table 8 Front Panel LEDs LED Name Indicator /color Condition On Green PWR1/PWR2 power line has power PWR1/PWR2 PWR1/PWR2 power line disconnect or does not have On Red Ethernet link fails, alarm or power failure alarm occurs Alarm No Ethernet link fails and no power failure alarm 10/100/1000Base-T(X) 1000M working state... -
Page 23: Switch Access
Switch Access Switch Access You can access the switch in any of the following ways: 6.1 Access through Console Port Step 1: Connect the console port of the switch to the 9-pin serial port of a PC with the RJ45-DB9 console cable. Step 2: Open Hyper Terminal in Windows OS. - Page 24 Switch Access Figure 20 Selecting a Serial Port Note: To confirm the communication port in use, right-click [My Computer] and select [Property]. Click [Hardware] → [Device Manager] → [Port] to view the communication port. Step 5: Set port parameters (Bits per second: 115200, Data bits: 8, Parity: None, Stop bits: 1 and Flow control: None), as shown in the following figure.
-
Page 25: Access Through Telnet
Switch Access Figure 21 Setting Port Parameters Step 6: Click OK to enter the switch CLI. Then you can run the commands in Table 9 to perform operations. Table 9 CLI Commands for SIMCOM3008GV View Command Description General mode SWITCH#enable Enter the privileged mode Privileged mode SWITCH#show interface vlan 1... -
Page 26: Access Through Web
Step 2: On the Windows desktop, click Start and Run. The Run dialog box is displayed. Enter "telnet IP address". For example, if the IP address of the device is 192.168.0.2 (default IP address of a Kyland switch), enter "telnet 192.168.0.2" in the dialog box. Figure 22 Access through Telnet Step 3: Click OK. -
Page 27: Basic Features And Specifications
Basic Features and Specifications Basic Features and Specifications Power Requirements Power Identifier Rated Voltage Range Maximum Voltage Range 24 VDC 12-58 VDC Terminal block 6-pin 3.81mm-spacing plug-in terminal block Rated Power Consumption Rated power consumption 9Watts Physical Characteristics Housing Aluminum Installation DIN-rail and Wall mounting Dimensions (W×H×D) - Page 28 FAX: +86-10-88796678 Website: http://www.kyland.com Email: support@kyland.com For more information about KYLAND products, please visit our website: http://www.kyland.com...
