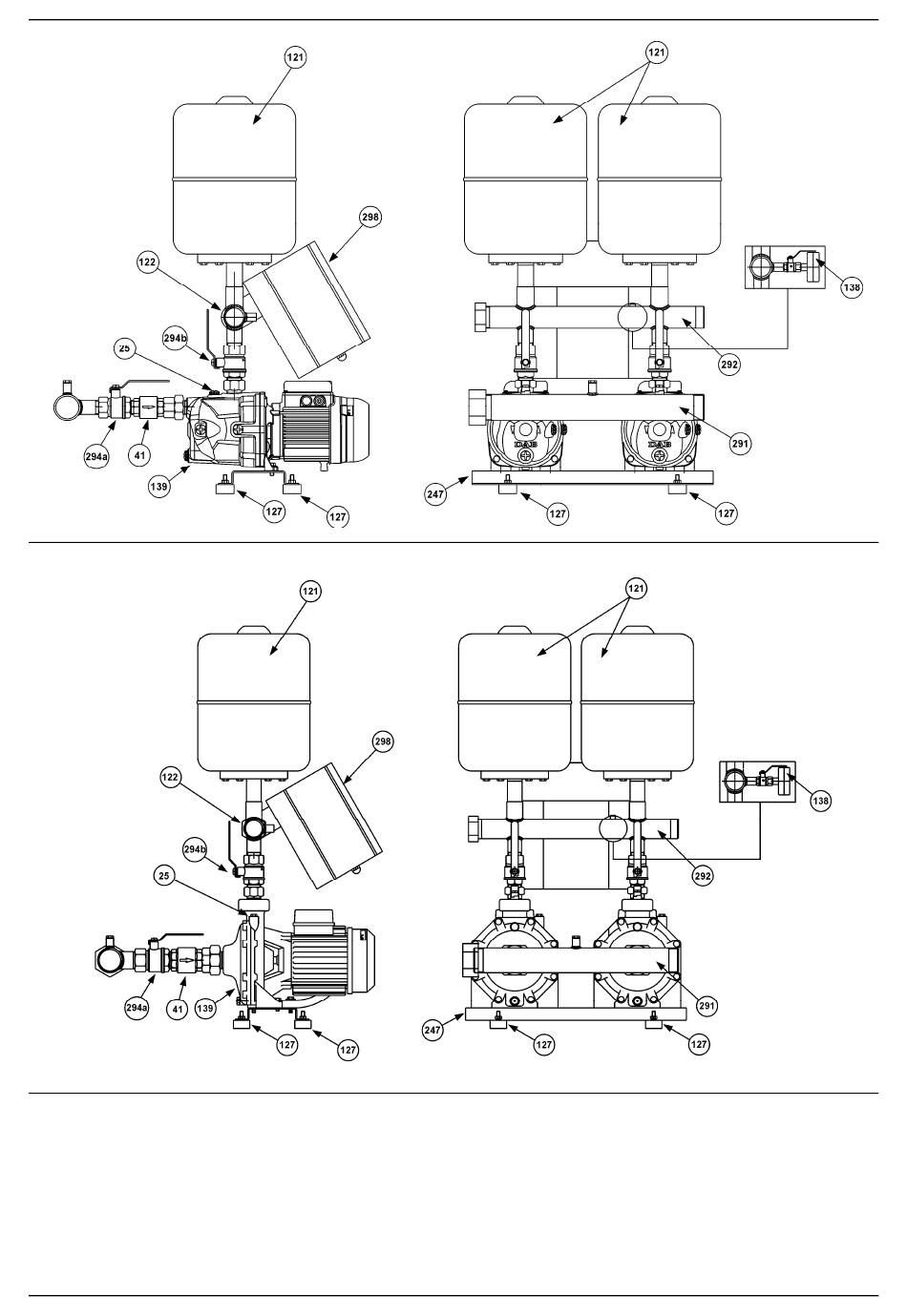

GRUPPE 2 JET
GRUPPE 2 K
25 - Fülldecke Elektropumpe
41 - Rückschlagventil
121 - Ausdehnungsgefäß
122 - Druckgeber
127 - Schwingungsdämpferfuß
DEUTSCH
138 - Manometer
139 - Elektropumpe
247 - Untergestell
291 - Ansaugsammelrohr
292 - Auslaßsammelrohr
28
294a/294b - Sperrventil
298 - Schalttafel
