Summary of Contents for SystemAir PKIR-E60S

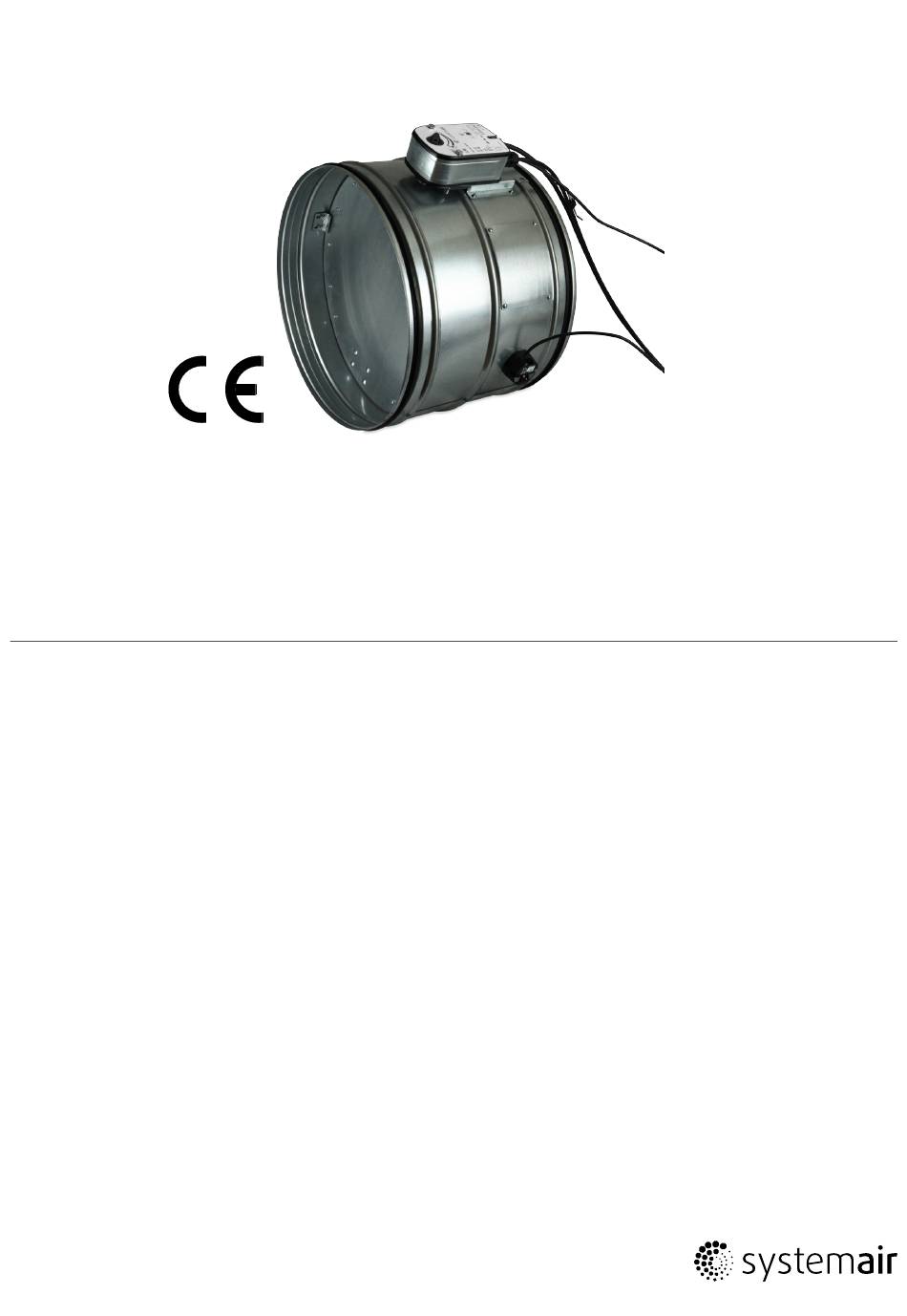

  • Page 1 PKIR-E60S and EKIR-E60S 1396 - CPD - 0069 Round Fire and Evacuation Damper INSTALLATION, OPERATION AND MAINTENANCE INSTRUCTIONS EACH FIRE/EVACUATION DAMPER MUST BE INSTALLED ACCORDING TO THIS INSTALLATION MANUAL!
  • Page 2: Operating Conditions

    Operating Conditions This installation, operation and maintenance manual concerns Systemair fire dampers can be defined as fire shutters for ventila- round fire and evacuation dampers, type PKIR-E60S and EK- tion ducts in the place where they pass through walls or ceilings, IR-E60S, manufactured by IMOS-Systemair.
  • Page 3 6. Mineral wool 7. Horizontal profile UW (if flexible wall) 8. Vertical profile (if flexible wall) 9. Insulation with the same fire resistivity as the fire damper and the wall ceiling have Fig.1: Vertical installation of the PKIR-E60S and EKIR-E60S...
  • Page 4 • Power consumption must be observed! ØD S1 S2 S3 S4 S5 S6 <5° <80° Damper Parts Description: see Fig. 1 Tf3 LED BAE or BAT Fig. 2: Horizontal installation of the PKIR-E60S and EKIR-E60S Fig. 5: Wiring scheme of actuator BELIMO BFL24-T, BFN24-T, BF24-T...
  • Page 5: Damper Inspection

    8. check if the damper is in its standard position. 5 Warranty Conditions For warranty conditions ask please our Systemair colleagues in actuator BF your country. Before you can install the fire damper, it‘s functionality must be tested as per chapter 3 (Fire Damper Functionality Check).
  • Page 6 6 / 8 PP-87_201701 PKIR-E60S & EKIR-E60S Operation Journal Activation of the damper Description of found defects and date of the following inspection Date Inspection technician’s signature after deficiencies elimination Periodic damper inspections – at least once in 12 months...
  • Page 7 PKIR-E60S & EKIR-E60S PP-87_201701 7 / 8 Periodic damper inspections – at least once in 12 months Description of found defects and date of the following inspection Date Inspection technician’s signature after deficiencies elimination...
  • Page 8: Warranty Service

    8 / 8 PP-87_201701 PKIR-E60S & EKIR-E60S Damper Identification 1396 Building object IMOS-Systemair 90043 Kalinkovo 371, Slovakia 1396 - CPD - 0069 EN 15650 : 2010 Fire damper: - all types of PKI-R-E60S Emplacement Nominal activation conditions/sensitivity: Pass - sensing element load bearing capacity - sensing element response temperature Response delay (resp.
