Installing A Psu - Check Point Smart-1 Series Installing And Removing

Important - The appliance needs one working PSU for normal
operation. When two PSUs are installed, remove and replace
only one PSU at a time in an appliance that is powered on.
Important - When only one working PSU is installed, it must
be installed in the first PSU bay (see the markings on the
appliance cover).

Installing a PSU

1. Make sure to follow the Safety instructions (on page 1).
2. Make sure that both PSUs are of the same type and have the same
maximum output power.
Note - The maximum output power (shown in Watts) is listed on the PSU
label.
3. Slide the new PSU into the appliance until the PSU is fully seated, and the
release latch snaps into place.
4. If you opened the loop straps on the hooks, close them.
5. Connect the safety ground wire to the PSU.
6. Connect the DC power connector to the PSU.
7. Loop and secure the power cable to the PSU using the retention strap.

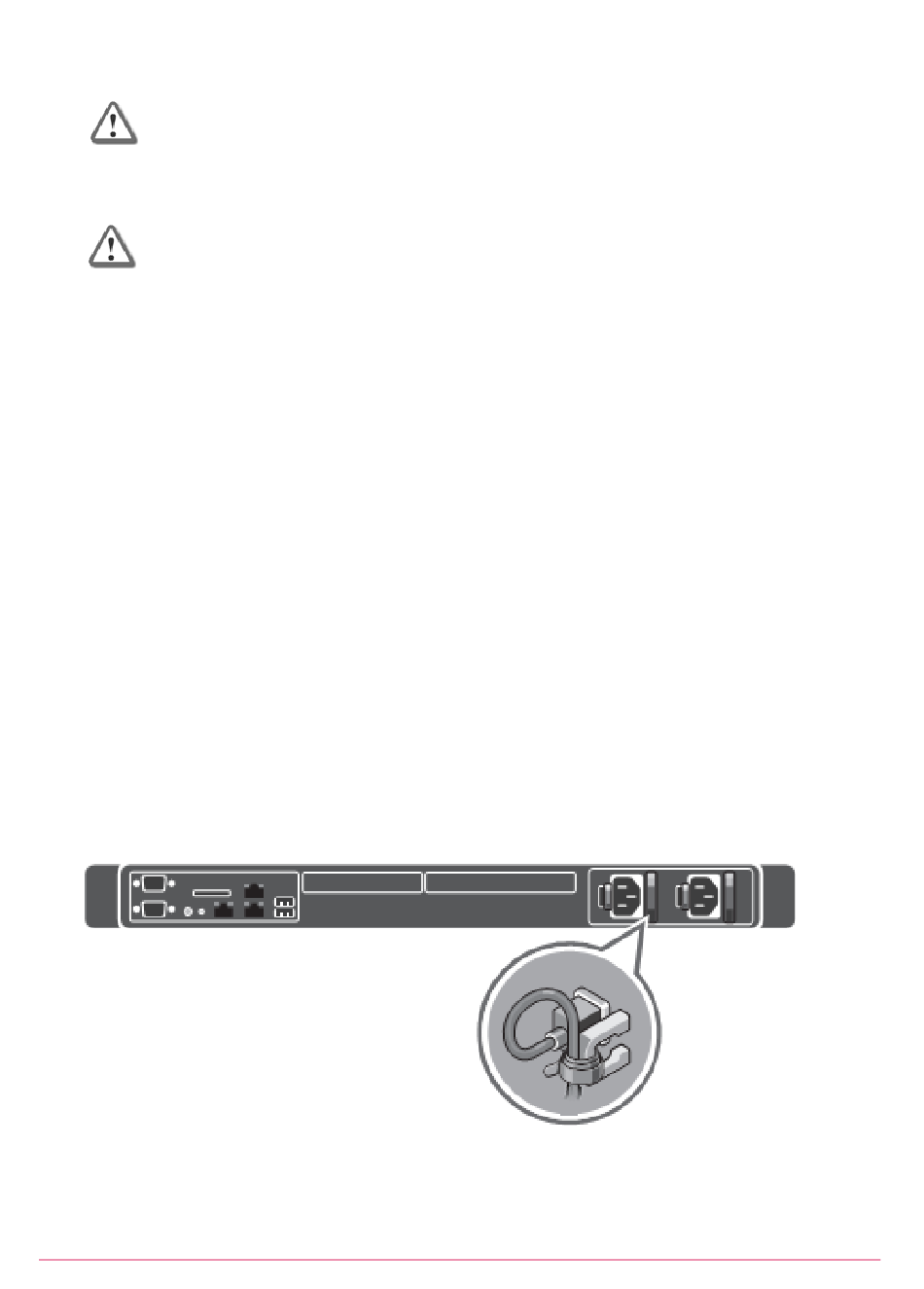

Example shows AC PSUs:
8. Plug the power cable into a power outlet.
