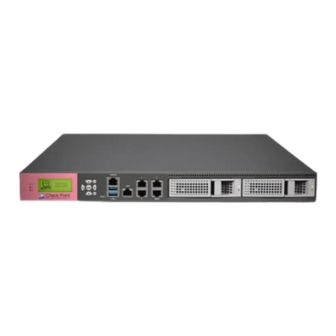

Check Point Smart-1 Series Replacing Instructions

Hide thumbs Also See for Smart-1 Series:

Replacing Smart-1 AC Power

Supply Units

705869

Protected

2014

This document is for Smart-1 225, Smart-1 3050, and Smart-1 3150 models.

Smart-1 has a redundant power supply unit. If necessary, you can replace a power

supply unit.

Important - Make sure you are electromagnetically grounded before you install,

uninstall, or replace a PSU. ESD (electrostatic discharge) can damage the

appliance.

Note: The illustrations in this guide show the Smart-1 3050. The procedures are the

same for all models, but the component locations can be different.

For a list of our Third Party Copyright notices, please refer to:

Classification [Protected]

For a list of our trademarks, please refer to: http://www.checkpoint.com/copyright.html.

http://www.checkpoint.com/3rd_party_copyright.html

P/N:705869 | 1

Table of Contents

Need help?

Do you have a question about the Smart-1 Series and is the answer not in the manual?

Page 1 Classification [Protected] P/N:705869 | 1 © 2014 Check Point Software Technologies Ltd. All rights reserved. For a list of our trademarks, please refer to: http://www.checkpoint.com/copyright.html. For a list of our Third Party Copyright notices, please refer to:...
Page 2 Item Description ESD grounding point Alarm Off button for power supply units Power supply lock screw Power supply units...
Page 3 Removing an AC Power Supply Unit Item Description Release lever Power supply screw Power LED Extraction handle To remove a power supply unit: If the alarm sounds, press the alarm button to the left of the power supply units. The alarm stops. Remove the power cord from the power supply unit.
Page 4 Press and hold the release lever down as shown. While holding the release lever, pull the extraction handle to remove the power supply unit. Note - Remove the power supply unit only with the extraction handle to prevent any possible damage.
Page 5 Installing an AC Power Supply Unit To install a replacement power supply unit: Insert the power supply unit into the power supply slot. Push the power supply unit in until the release lever clicks. Tighten the power supply screw. Insert the power cord into the power supply socket. Make sure that the power LED is illuminated.
