Smart-1 Installing and Removing
Storage Devices
70747 9
Protecte d
2018

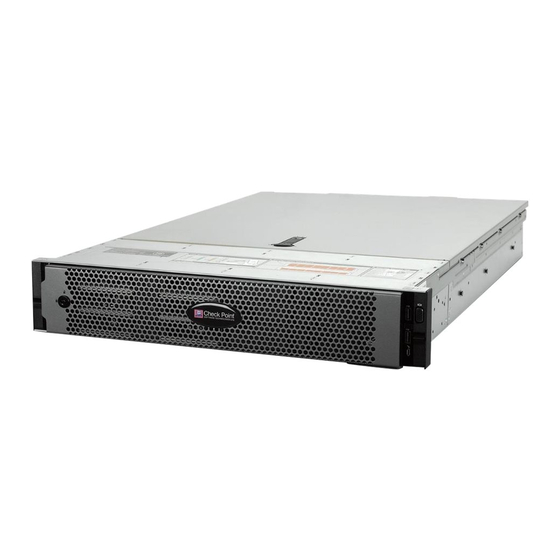

This document is for appliance models Smart-1 525, Smart-1 5050, and
Smart-1 5150.
Safety Instructions
•
Lift the appliance with assistance. To avoid injury, do not attempt to lift the
appliance by yourself.
•
Opening or removing the appliance cover, while the appliance is powered on
may expose you to a risk of electric shock.
•
Do not operate the appliance without the cover for more than five minutes.
Operating the appliance without the cover can result in component damage.
•
Many repairs may only be done by a certified service technician. Only
perform troubleshooting and simple repairs as authorized in your product
documentation, or as directed by the technical support.
•
We recommend that you always use an antistatic mat and antistatic strap on
your wrist, while working on components inside the appliance.
•
To ensure proper operation and cooling, all bays in the appliance and
cooling fans must be always populated with a component or a blank.
For more information, see the
Regulatory Information
carton.
Classification [Protected]
© 2018 Check Point Software Technologies Ltd. All rights reserved.
For a list of our trademarks, please refer to: www.checkpoint.com/copyright.html.
For a list of our Third Party Copyright notices, please refer to:
Enterprise Products Safety, Environmental, and
booklet supplied in the original appliance shipping
www.checkpoint.com/3rd_party_copyright.html
P/N:707479
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Check Point Smart-1 525
Summary of Contents for Check Point Smart-1 525
- Page 1 Smart-1 Installing and Removing Storage Devices 70747 9 Protecte d 2018 This document is for appliance models Smart-1 525, Smart-1 5050, and Smart-1 5150. Safety Instructions • Lift the appliance with assistance. To avoid injury, do not attempt to lift the appliance by yourself.
-
Page 2: Storage Devices
Hot swappable disks are supplied in hot swappable disk carriers that fit in the disk slots. • On Smart-1 525, the two disks must be installed in the two left slots (0 and 1 on the diagram below). • The disk carriers for the Smart-1 525 are not the same as the disk carriers for the Smart-1 5050 and the Smart-1 5150 models. - Page 3 Empty Disk Disk Note - Only Slot 0 and Slot 1 are supported in Smart-1 525. Do not install a disk in Slot 2 or Slot 3. If you do so, your appliance will show this error: Disk slot occupation mismatch!! Only use of slot 0 and 1 is supported.
- Page 4 • Smart-1 5150 Slot 0: Slot 3: Slot 6: Slot 9 Optional Optional Disk Disk Slot 1: Slot 4: Slot 7: Slot 10: Optional Optional Disk Disk Slot 2: Slot 5: Slot 8: Slot 11: Optional Optional Disk Disk Note - See the slot numbers below the bottom row of disk slots on the appliance.
- Page 5 Status indicator LED patterns: Status Indicator Disk Condition LED Pattern Steady green Disk is online. Flashes green twice Identifying disk or preparing disk for removal. per second Blinks green, amber, Predicted disk failure. and then turns off Blinks amber four Disk failed.
-
Page 6: Preparing The Appliance
At the left end of the bezel, unlock the keylock using the bezel key. b) For Smart-1 525 - Lift the release latch next to the keylock. c) For Smart-1 5050 and Smart-1 5150 - On the left side of the bezel, press and hold the release button. - Page 7 Identifying the Disks on Smart-1 5050 and Smart-1 5150 To identify the disks individually on Smart-1 5050 or Smart-1 5150: 1. Connect to the command line on the appliance. 2. Log in to Expert mode. 3. Send a signal to each disk to make the LED blink on the disk carrier: •...
- Page 8 Removing the Disk Carrier 1. Press the release button on the front of the hot swappable disk carrier. 2. Open the hot swappable disk carrier handle. 3. While holding the handle, slide the disk carrier out of the disk slot. 4.
- Page 9 • The disk carriers for the Smart-1 525 are not the same as the disk carriers for the Smart-1 5050 and the Smart-1 5150 models. The disk carriers for the Smart-1 5050 and the Smart-1 5150 models are...
-
Page 10: Installing The Front Panel Bezel
1. On the back of the bezel, locate and remove the bezel key. 2. Hook the right end of the bezel onto the appliance. 3. For Smart-1 525 - Fit the left end of the bezel onto the appliance and push the release latch next to the keylock. - Page 11 Smart-1 5150 Disk Slot Blanks Smart-1 5150 lets you install additional disks. This section shows how to remove and install disk slot blanks that cover the empty disk slots. To remove a disk slot blank on Smart-1 5150: 1. Press the release button to open the release handle on the disk slot blank. 2.
