Gallery Panels
Installation Instructions
Tools Needed:
Drill
1/4" Hex Drive
#2 Philips Bit
#3 Philips Bit
1/8" Drill Bit
1/4" Drill Bit
9/16" Socket Wrench
Carpenter's Level
Index
End of Run Gallery Panel - Single Panel Configurations (GZCKP) . . . . . . . . . . . . . . . . . . . . . . . .4
End of Run Gallery Panel - Split Panel Configuration (GZCKP) . . . . . . . . . . . . . . . . . . . . . . . . . .6
Mid-Run Blocks & Trim (GZCON, GxxT, GZMT) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Mid-Run Gallery Panel (GCKPM) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Worksurface Connections (T6CB24L, T6CB24R, Z6LB) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
End of Run Gallery Panel - Single Panel Configurations (GTKCKP) . . . . . . . . . . . . . . . . . . . . .13
End of Run Gallery Panel - Split Panel Configuration (GTSKCKP) . . . . . . . . . . . . . . . . . . . . . . .15
30H spine with Frameless Glass Application (GTKGK30) . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
Mid-Run Blocks & Trim (GTKCON, GxxT, GTKMTx) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
Mid-Run Gallery Panel (GCKPM) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
Worksurface Connections (T6CB24L, T6CB24R, Z6LB) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
End of Run Gallery Panel (GFCKSH, GFCKA, GFCKLH) . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
Single-Sided Adaptive Gallery Panels (U6GPSS) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
Worksurface Connections (Z6LB) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28
Gallery Panel Installation for Closed Leg Bench (GSBCKC) . . . . . . . . . . . . . . . . . . . . . . . . . . .29
Gallery Panel Installation for Open Leg Bench (GSBCKO) . . . . . . . . . . . . . . . . . . . . . . . . . . . .31
Laminate Storage (GSGKL) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36
Metal Storage (GSGKM) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .38
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40
3430455000
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .39
. . . . . . . . . . . .32
Allsteel
Allsteel Inc.
Muscatine, Iowa 52761-0071
www.allsteeloffice.com
05/2020
Advertisement
Table of Contents
Related Manuals for Allsteel GZCKP
Summary of Contents for Allsteel GZCKP
-
Page 1: Table Of Contents
End of Run Gallery Panel - Single Panel Configurations (GZCKP) . . . . . . . . . . . . . . . . -
Page 2: Systems Overview
Systems Overview Stride Benching Terrace Stride Further Stride Stride Benching Terrace Further End of Run GZCKP GSBCKC, GTKCKP, GFCHSH, GFCKA, Connector Kit GSBCKO GTSKCKP GFCKLH Mid-Run Connector GZ3CONxx, GCKPM... -
Page 3: Stride Panel System

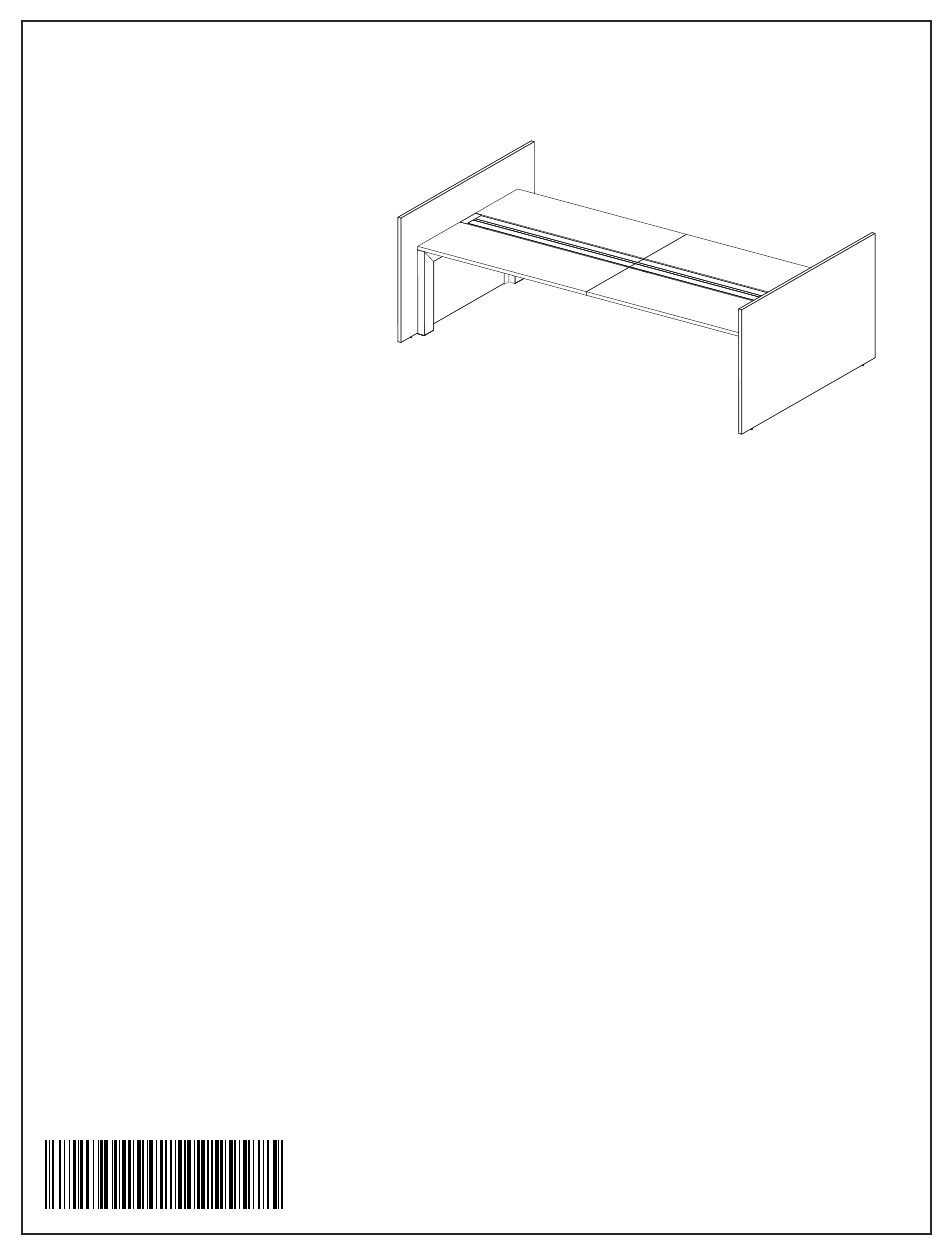

Gallery Panels Installation Packet Create Stride Panel System 3430455000 Page 3 of 40... -
