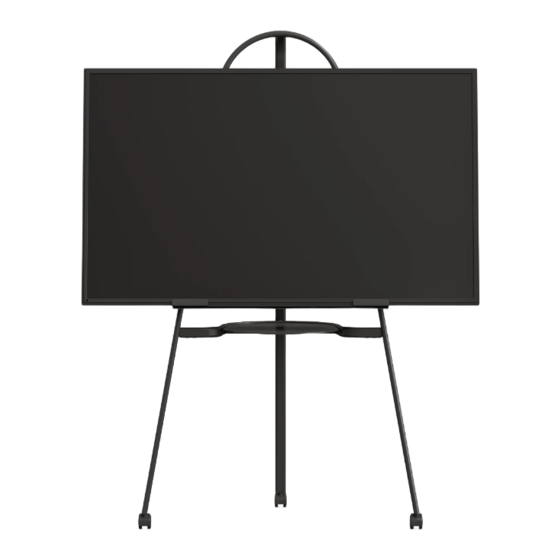

Allsteel Park Easel Installation Packet
  1. Manuals
  2. Brands
  3. Allsteel Manuals
  4. Indoor Furnishing
  5. Park Easel
  6. Installation packet

Allsteel Park Easel Installation Packet

Hide thumbs
1
2
3
4
5
6

Advertisement

Table of Contents

Enlarged version
Park
Installation Instructions
Index
Easel, NAESL

Kit of Parts . . . . . . . . . . . . . . . . . . . . . . 2

Notables. . . . . . . . . . . . . . . . . . . . . . . 2

. . . . .
Electrical Attachment . . . . . . . . . . . . . . . 5
Liner Placement . . . . . . . . . . . . . . . . . . . 5
Fastener Chart . . . . . . . . . . . . . . . . . . . . . . . . . 6
Page 1 of 6
. . . . . . . . . . . . . . . . . . 3
. . . . . . . . . . . . . . 4
.
Allsteel Inc.
Muscatine, Iowa 52761-0071
www.allsteeloffice.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Park Easel and is the answer not in the manual?

Questions and answers

Related Manuals for Allsteel Park Easel

Summary of Contents for Allsteel Park Easel

  • Page 1 Liner Placement ....5 Fastener Chart ......6 Allsteel Inc. Muscatine, Iowa 52761-0071 www.allsteeloffice.com...

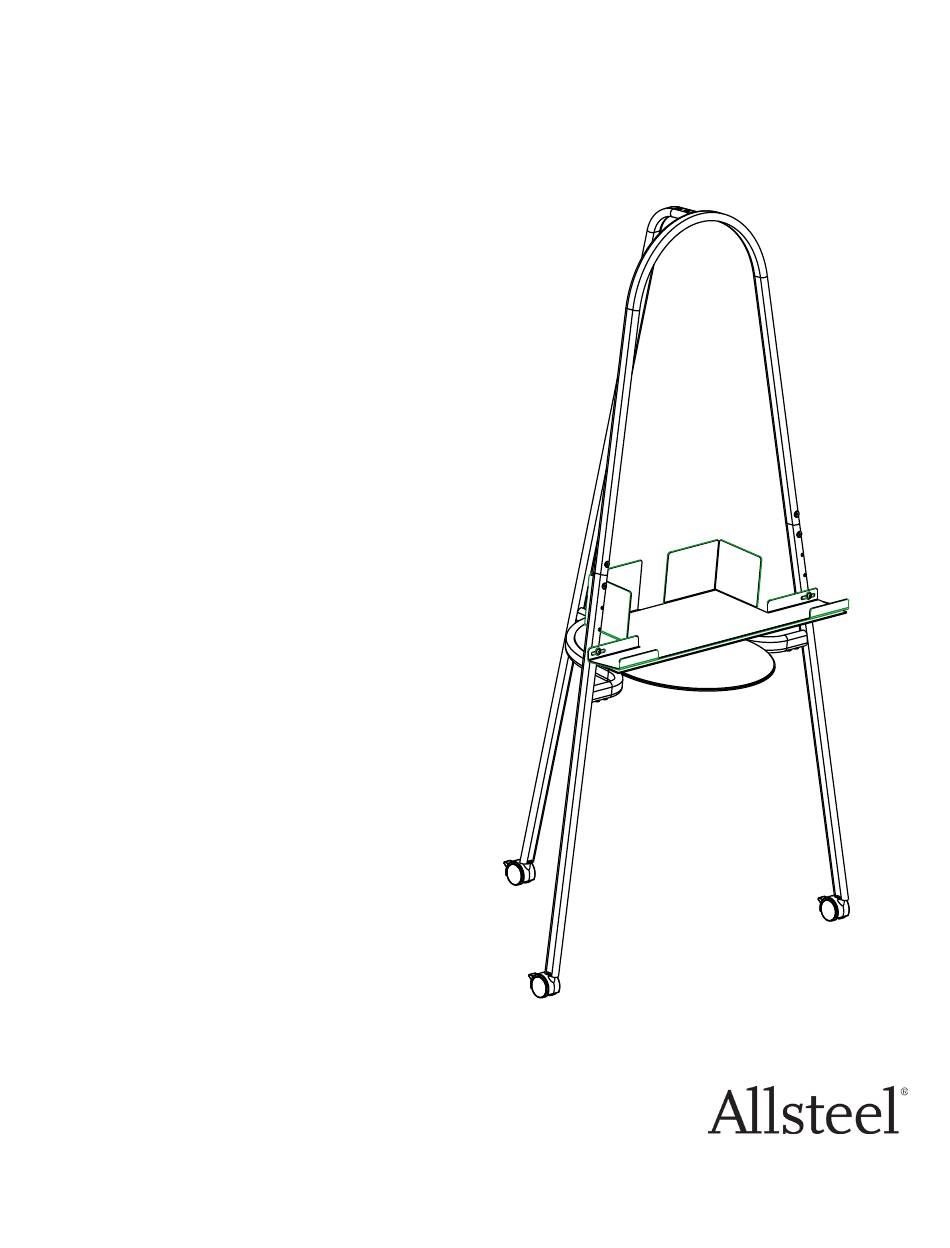

  • Page 2 Park Installation Packet W A R N I N G Failure to install product as instructed, use of hardware other than that which is provided, or failure to comply with instructions can result in product failure, personal injury, or property damage. Illustration 1: Kit of Parts - NAESL Easel TV Tray Easel Caster...
  • Page 3 Park Installation Packet Create Illustration 3a: Easel Assembly Step 1 - Rest the back end of Easel Tray on a clean, dry surface. Tilt Tray to one side and insert RH/LH Leg Assemblies into respective locations. Align holes and use 4 A screws to secure in place. Step 2 - Place Easel Arch with attached Easel Inserts onto the RH and LH leg assembly.
  • Page 4 Park Installation Packet Illustration 3b: Electrical Attachment - Optional Step 1 - Align holes on electrical unit with holes on the TV Tray. Step 2 - Insert G screws through the top of the TV Tray and electrical unit and secure underneath tray with acorn nut (H).
  • Page 5 Park Installation Packet Create Illustration 3d: Easel TV Attachment WARNING: TV SIZES 42” AND UP TV MUST BE VESA MIS-F COMPLIANT: 200x200 to 600x400 DO NOT OVERTIGHTEN. DO NOT USE A POWERDRILL. DO NOT ATTEMPT TASK ALONE Step 1 - Gently place TV screen down on a clean, solid surface. Step 2 - Choose the appropriate screws (2 D or 2 E) and number of washers (1-4 F) according to the type of screen/TV.
  • Page 6 Park Installation Packet Illustration 4: Fastener Chart *** All screws printed to 1:1: scale *** 350-1675 350-0850 4021-816 350-1732 350-1730 350-1733 350-1234 783-850 350-0850 350-1675 350-1727 Cable Management 350-1691 Strap (I) Page 6 of 6 3430408900...
