Allsteel Terrace DNA Assembly Instructions

Terrace DNA
Step 1- Remove top cap & install segment bars

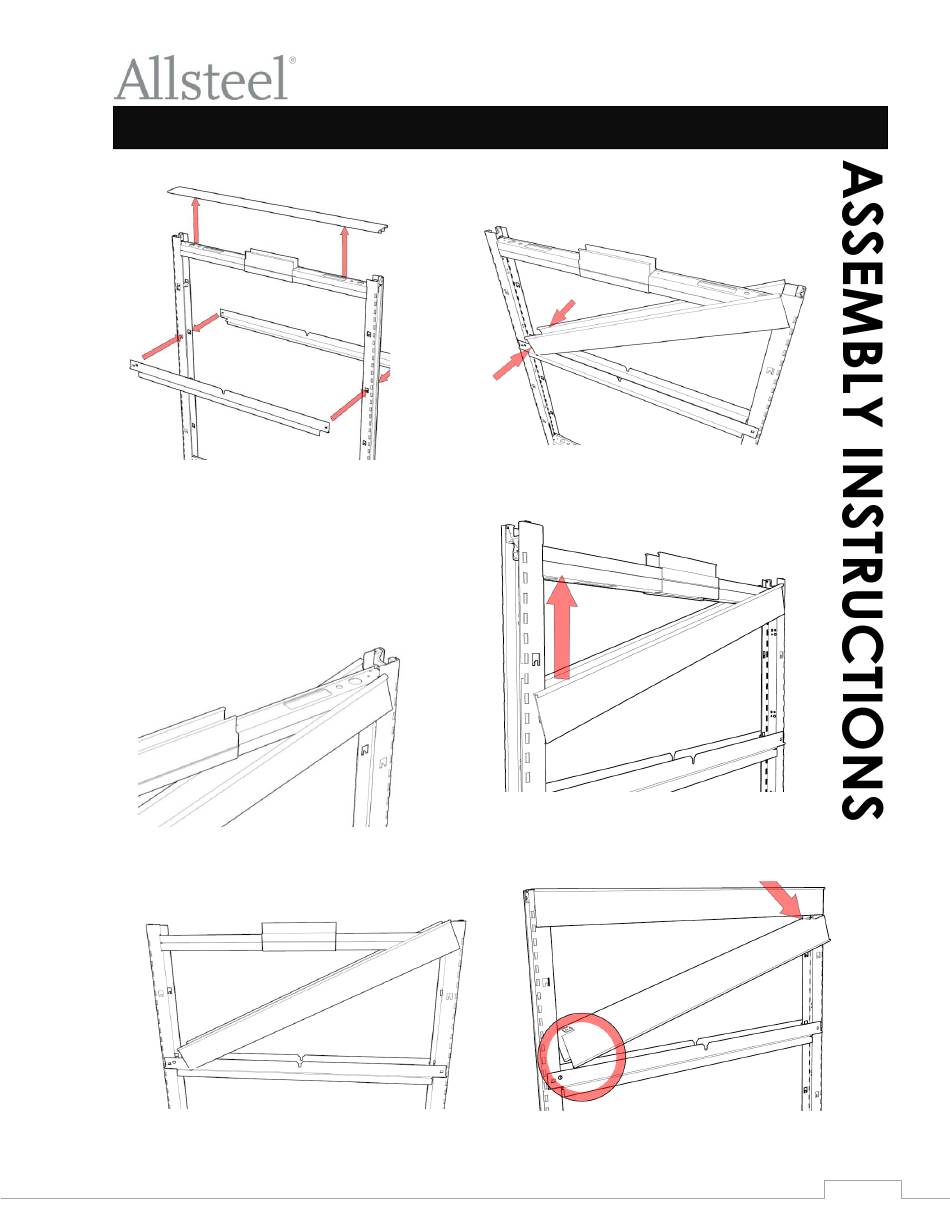

Step 2 – Install Upper and Lower shrouds.
Position the top shroud first between panel vertical
members. Have helper holder upper shroud while
installing lower. Note: side with small channel is where
the glass is placed (outside position.)
A. Position shroud so that cut outs on end go
through the vertical upright
B. At approx 40 degrees, maneuver opposite end
of shroud so that its cut outs are aligned w/
vertical upright.
Installation Packet
C. Squeezing the shroud on the opposite end
will aid in installation of horizontal shroud.
D. Complete motion by sliding upper shroud
into place (have assistant hold while lower
is installed).
With top shroud in place, maneuver lower shroud so
that one corner is in upper position as shown. This will
allow clearance for the lower portion to fit through
verticals.
