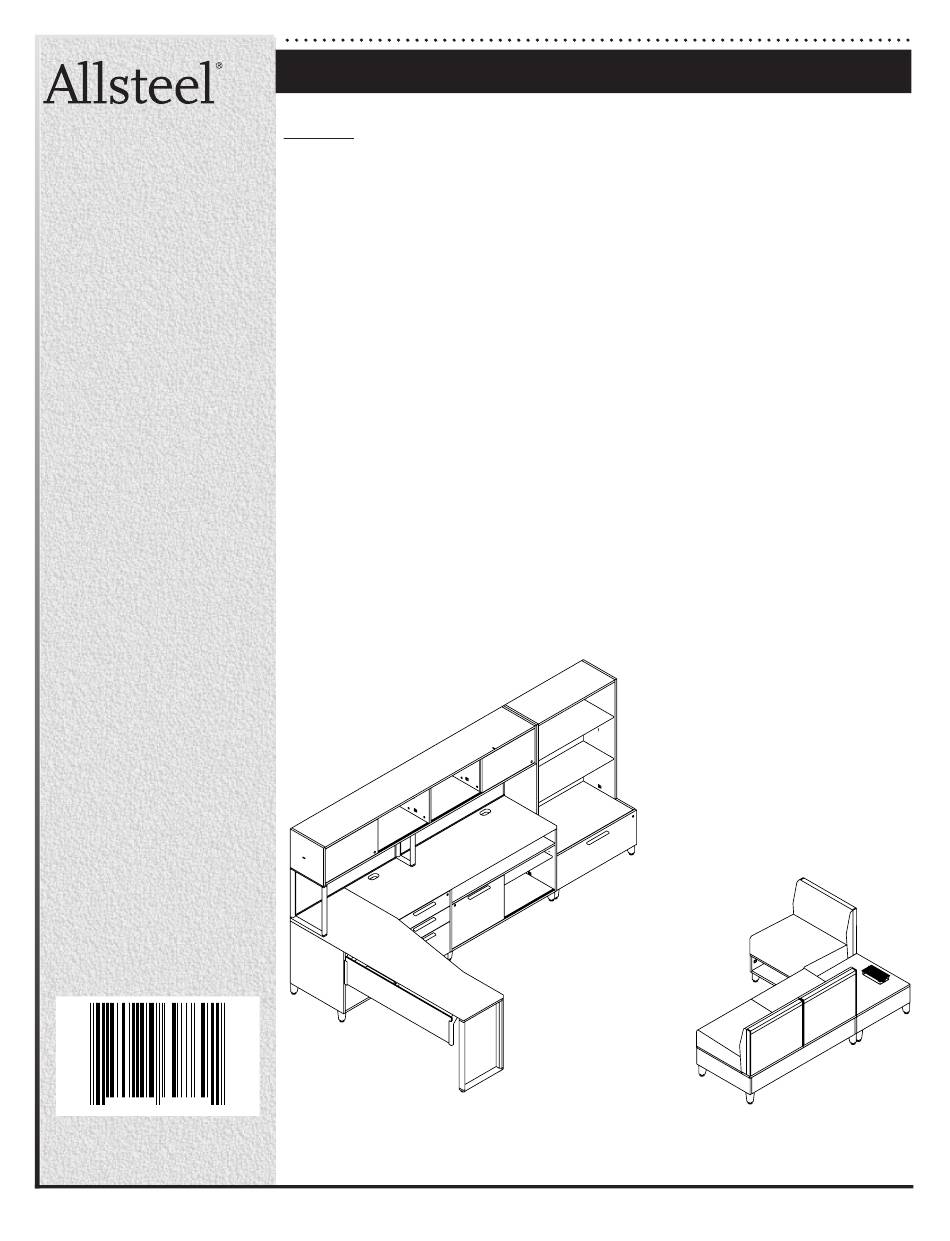

Allsteel Involve KAPE-E Installation Packet

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Allsteel Inc.
Muscatine, Iowa 52761-0071
www.allsteeloffice.com
KAPE-E
82986 69869
7
Pour des instructions en Français, appeler le 800-822-7653
Para instrucciones en Español, llame al 800-822-7653
Involve
Contents
System Guidelines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Pages 3 thru 5
Credenza Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Pages 6 thru 14
Credenza Top Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 14
Soft Seating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 15
Drawer and Door Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Pages 16 thru 19
Credenza to Panel Bracket Installation . . . . . . . . . . . . . . . . . . . . . . . . Pages 20 thru 24
Overhead Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Pages 25 thru 30
Panel Mount . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Pages 25 thru 26
Wall Mount . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 27
Stanchion Mount . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Pages 28 thru 30
Shared Overhead and Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 31
Attaching Worksurfaces to Towers . . . . . . . . . . . . . . . . . . . . . . . . . . . Pages 32 thru 34
Screen Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Pages 35 thru 36
Support Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Pages 37 thru 38
Stacking Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 39
Closed Gable End . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 40
Post Leg . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 41
Laminate Shelf . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 41
Divider Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 42
Task Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Pages 43 thru 46
Hutch Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 47
Overhead Back Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 47
Electrical Credenzas . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Pages 48 thru 54
2
Installation Packet
343-2950B (06/14)
Page 1 of 54
