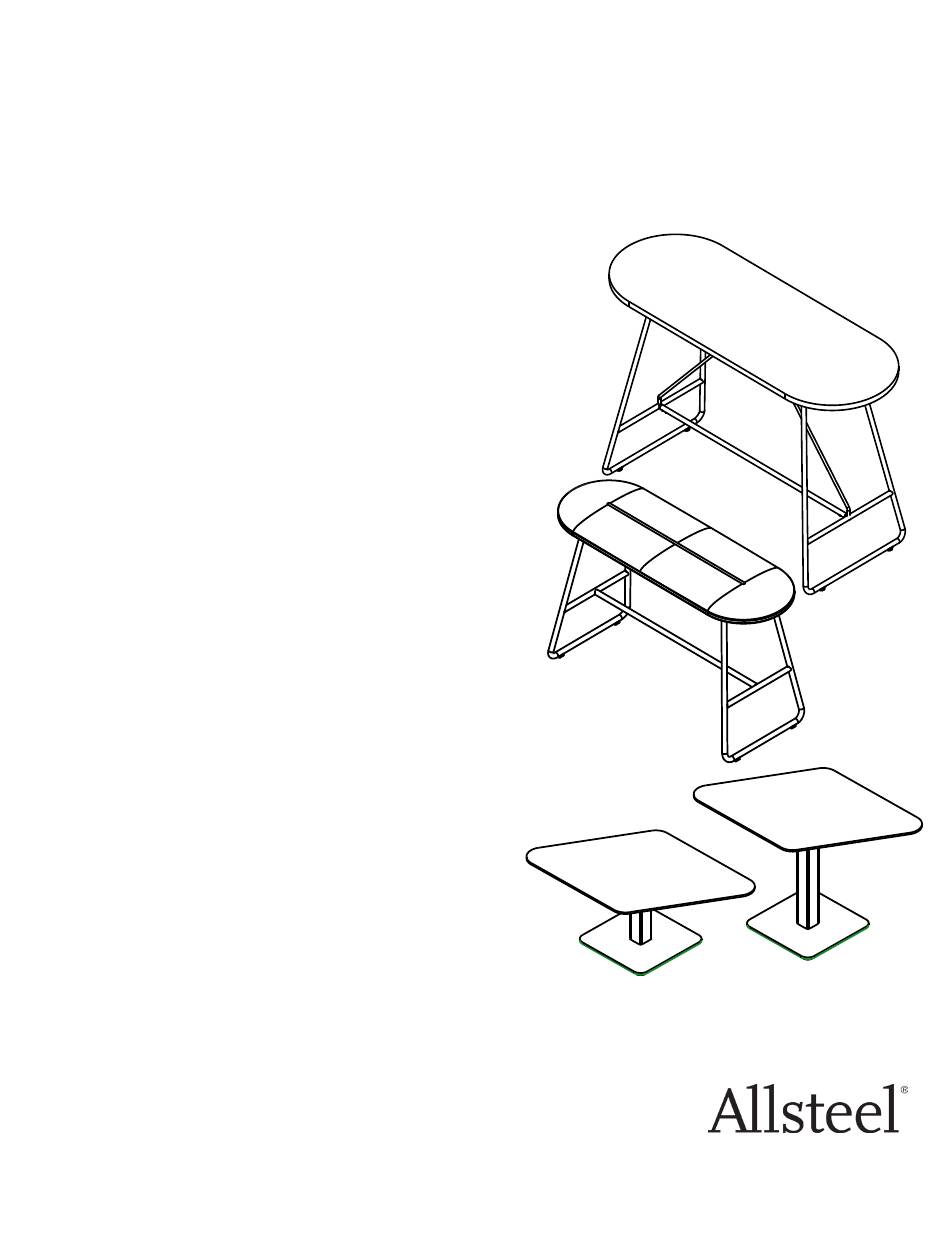

Installation Instructions
Index
Kit Of Parts . . . . . . . . . . . . . . . . . . . . . . . 2
Picnic Table Assembly, ACPICTBL . . . . . . . . . 3
Picnic Bench Assembly, ACPICBU/BL. . . . . . . . 4
Peak Table Assembly, ACVISTBL/CTBL . . . . . 5
Fastener Chart . . . . . . . . . . . . . . . . . . . . . 6
Page 1 of 6
Allsteel Inc.
Muscatine, Iowa 52761-0071
www.allsteeloffice.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Allsteel Townhall Series
Summary of Contents for Allsteel Townhall Series
-
Page 1: Installation Instructions
Peak Table Assembly, ACVISTBL/CTBL ..5 Fastener Chart ..... 6 Allsteel Inc. Muscatine, Iowa 52761-0071 www.allsteeloffice.com... - Page 2 Townhall Installation Packet W A R N I N G Failure to install product as instructed, use of hardware other than that which is provided, or failure to comply with instructions can result in product failure, personal injury, or property damage. Illustration 1: Kit of Parts Table V-Wire Table Leg...
- Page 3 Townhall Installation Packet Illustration 2: Picnic Table Assembly - ACPICTBL Step 1 - Insert the V-Wire assembly into the Table Leg. Secure with 1 C bolt. Step 2 - Insert the Bottom Crossbeam into Table Leg. Align the V-Wire hole with Table Leg hole and secure with 1 B bolt.
- Page 4 Townhall Installation Packet Illustration 3: Picnic Bench Assembly - ACPICBL/ACPICBU Step 1 - Place worksurface or upholstered top inverted on a clean, dry surface. Step 2 - Invert Bench Base, align pilot holes and secure using 10 A screws for a worksurface or 10 D screws for an upholstered top.
- Page 5 Townhall Installation Packet Illustration 4: Peak Work and Coffee Table Assembly - ACVISTBL/ACVISCTBL Step 1 - Place worksurface inverted on a clean, dry surface. Step 2 - Invert Base, align pilot holes and secure using 12 E screws. Stand upright. E x 12 3430430400 Page 5 of 6...
- Page 6 Townhall Installation Packet Illustration 5: Fastener Chart *** All screws printed to 1:1: scale *** 50-1120 350-0814 50-2560 350-1057 350-1675 350-1675 3430430400 Page 6 of 6...
