Cadence
™
Failure to install product as instructed, use of hardware other than that which is provided with the
product, or failure to comply with all instructions can result in personal injury.

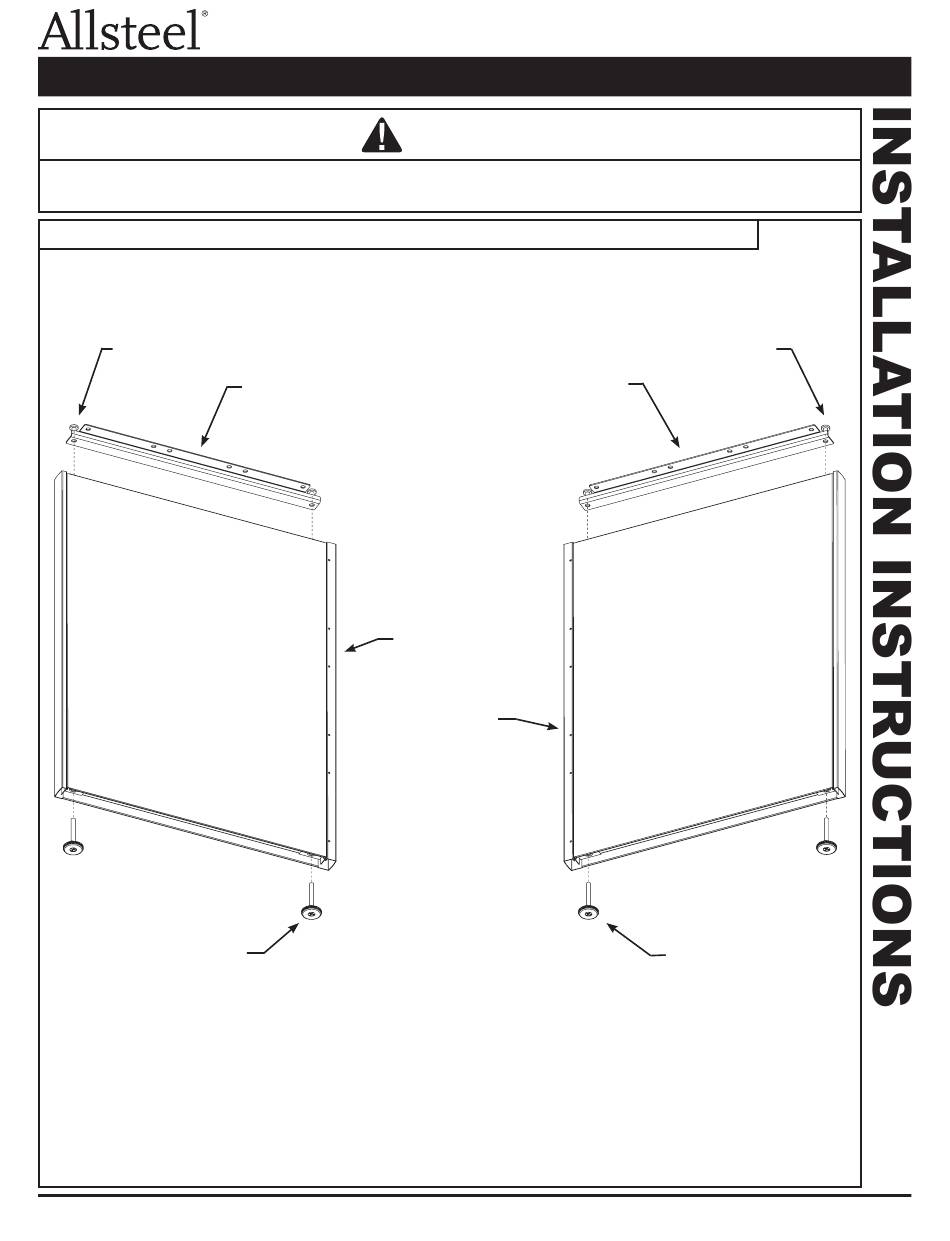

Illustration 1. Configure Full End Panel Support to a Left-Hand or Right-Hand Application
Machine screw
Leveler
FREESTANDING DESK APPLICA-
WARNING
Attachment bracket
Full end panel support
Full end panel support
assembled for left-hand
assembled for left-hand
application
application
Full end panel support
Full end panel support
assembled for right-hand
assembled for right-hand
application
application
Machine screw
Attachment bracket
Leveler
0430060100H
Page 1 of 8 (05/2020)
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Allsteel Cadence Applica Freestanding Desk
Summary of Contents for Allsteel Cadence Applica Freestanding Desk
- Page 1 Cadence FREESTANDING DESK APPLICA- ™ WARNING Failure to install product as instructed, use of hardware other than that which is provided with the product, or failure to comply with all instructions can result in personal injury. Illustration 1. Configure Full End Panel Support to a Left-Hand or Right-Hand Application Machine screw Machine screw Attachment bracket...
- Page 2 Cadence FREESTANDING DESK APPLICA- ™ Illustration 2. Primary Desk with Modesty Panel Full end panel support Modesty panel Worksurface Step 1 - Machine screw (three per full end panel support): Install into worksurface Step 3 - Wood screws (three per modesty panel, at each end and at center...
- Page 3 Cadence FREESTANDING DESK APPLICA- ™ Illustration 3. Primary Desk with Gussets Note: Dependent on user preference, cosmetic side (flat side) of gusset can face either front or rear edge of worksurface. Full end panel support Gusset - Position rear edge of gusset 1 "...
- Page 4 Cadence FREESTANDING DESK APPLICA- ™ Illustration 4. Bridge and Return Attachment Illustration 4a. Attach Modesty Panel Bracket Step 1 - Place primary desk upside down onto cardboard or a carpeted surface. Step 2 - On side of primary desk that bridge or return is to be attached, position modesty panel bracket against interior surface of full end panel support.
- Page 5 Cadence FREESTANDING DESK APPLICA- ™ Illustration 4. Bridge and Return Attachment (continued) Illustration 4b. Attach Return or Bridge to Primary Desk Bridge Attachment: Step 1 - Use three sheet metal screws to attach bridge modesty panel to modesty panel bracket (attached to primary desk full end panel support).
- Page 6 Cadence FREESTANDING DESK APPLICA- ™ Illustration 5. Support Leg Note: Use desk support legs to: • Attach a bridge to a peninsula (refer to Illustration 6). • Attach a return or bridge to a corner desk (refer to Illustration 7). •...
- Page 7 Cadence FREESTANDING DESK APPLICA- ™ Illustration 6. Attach a Return or Bridge to a Peninsula Worksurface Using a Support Leg Step 1 - Position support leg under peninsula worksurface. Align flat bracket center line locating notch with front edge of peninsula worksurface and rear edge with modesty panel top flange.
- Page 8 Cadence FREESTANDING DESK APPLICA- ™ Illustration 7. Corner Desk Step 1 - Assemble return desks using support legs under return desk side of worksurface. Step 2 - Use three sheet metal screws to attach a corner desk modesty panel to each support leg. Step 3 - Use six sheet metal screws to attach corner desk support leg to free ends of corner desk modesty panels.
