New England Arbors Savannah Trellis Assembly Instructions

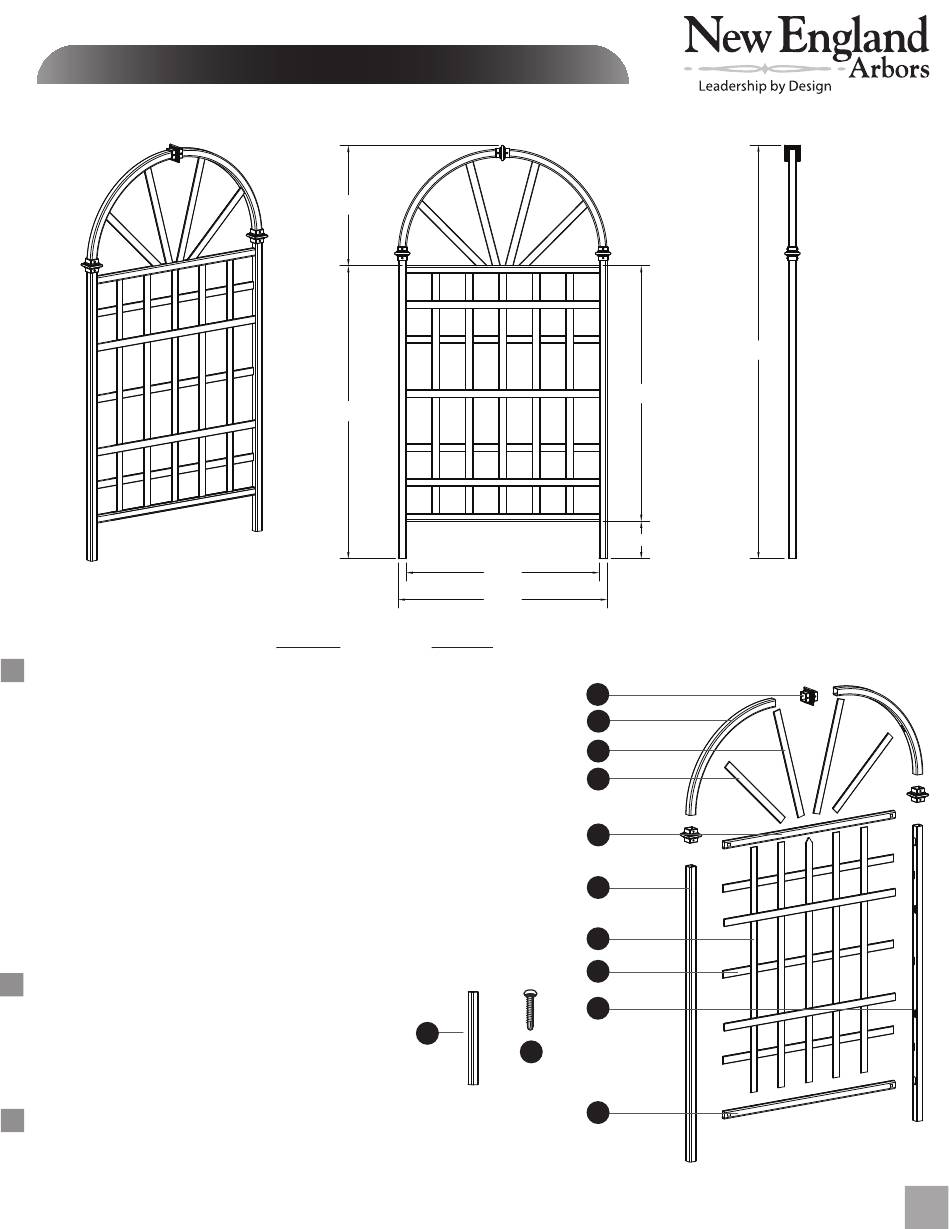

A S S E M B LY I N S T R U C T I O N S
The Athens / Savannah Trellis
Please read through before starting assembly.
IMPORTANT: CHECK THE INSIDE OF YOUR POSTS FOR ALL MATERIALS.
Check Box for These Contents
In the event of missing or defective parts please call our customer service
dept. at 1 800 282 9346 (Mon. to Fri. 8:00 AM to 4:00 PM EST).
1. Post Caps (3) 1.5" Square - 10600 White / 14066 Composite
2. Arches (2) 1.5" Square - 10847 White / 14074 Composite
3. Top Long Spindles (2) .25" x 1.5" x 22.75" - 10848 White / 14075 Composite
4. Top Short Spindles (2) .25" x 1.5" x 18.125" - 10849 White / 14076 Composite
5. Top Rail (1) .875" x 1.5" x 38.73" - 10850 White / 14077 Composite
6. Left Post (1) 1.5" x 1.5" x 57" - 10851 White / 14078 Composite
7. Right Post (1) 1.5" x 1.5" x 57" - 10852 White / 14091 Composite
8. Vertical Spindles (5) .25" x 1.5" x 47.36" - 10853 White / 14079 Composite
9. Horizontal Spindles (5) .25" x 1.5" x 38.73" - 10854 White / 14080 Composite
10. Bottom Rail (1) .875" x 1.5" x 38.73" - 10850 White / 14081 Composite
11. Ground Anchoring Stakes (2) 1.25" x 1.25" x 19" - 10856 White / 14073 Composite
10. 5/8" Self-Auguring Stainless Steel Screw (24) - 20016 White / 20030 Composite
Tools You Will Need
• Cordless Drill
• Hammer
• Tape Measure
• Level
• Shovel
General Information
• Read Instructions through carefully before beginning assembly.
• When assembling components, place on a non-abrasive surface
(i.e. shipping box) to avoid scratching.
• We recommend an area approx 5'x 8' for unobstructed assembling.
• You should not need to use excessive force when assembling component.
22.5 in
54.7 in
36 in
39 in
11
Not to Scale
