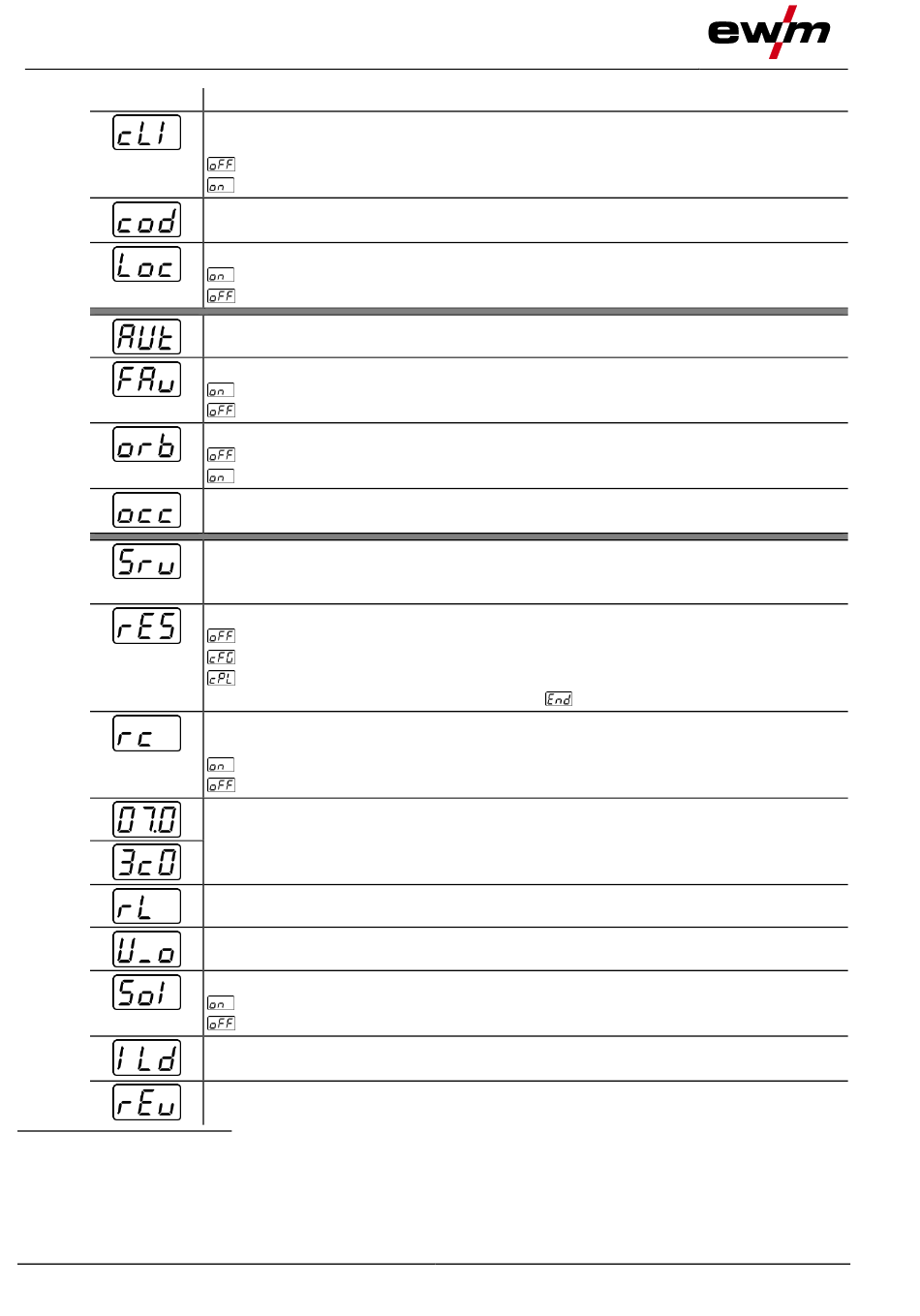

Functional characteristics
Machine configuration menu
Display
1
for AC welding machines only.
2
not used
3
for components for automated welding (RC) only.
48
Setting/selection
Minimum current limit (TIG) > see 5.1.2 chapter
Depending on the set tungsten electrode diameter
------ Function disabled
------- Function enabled (ex works)
Access control – access code
Setting: 000 to 999 (000 ex works)
Access control > see 5.4 chapter
------- Function enabled
------ Function disabled (ex works)
3
Automation menu
Fast take-over of control voltage (automation)
------- Function enabled
------ Function disabled (ex works)
3
Orbital welding
------ Function disabled (ex works)
------- Function enabled
3
Orbital welding
Correction value for orbital current
Service menu
Any changes to the service menu should be agreed with the authorised service person-
nel.
Reset (to factory setting)
------- Disabled (ex works)
------- Reset the values in the machine configuration menu
------- Complete reset of all values and settings
Resetting is performed when exiting the menu (
Automated/Manual (rC on/off) operating mode
Select machine/function control
------with external control voltages/signals
------with machine control
Software version query (example)
07.= ------ system bus ID
03c0= --- version number
System bus ID and version number are separated by a dot.
Cable resistance alignment > see 5.1.12 chapter
Only qualified service personnel may change the parameters!
TIG HF start (soft/hard) switching
------- soft ignition (factory setting).
------ hard ignition.
Ignition pulse limit
Setting 0 ms–15 ms (increments of 1 ms)
PCB state – qualified service personnel only!
3
).
3
