Setup - Video & Audio Setup - 3xLogic VISIX Gen III Series User Interface Manual

Setup - Video & Audio Setup -

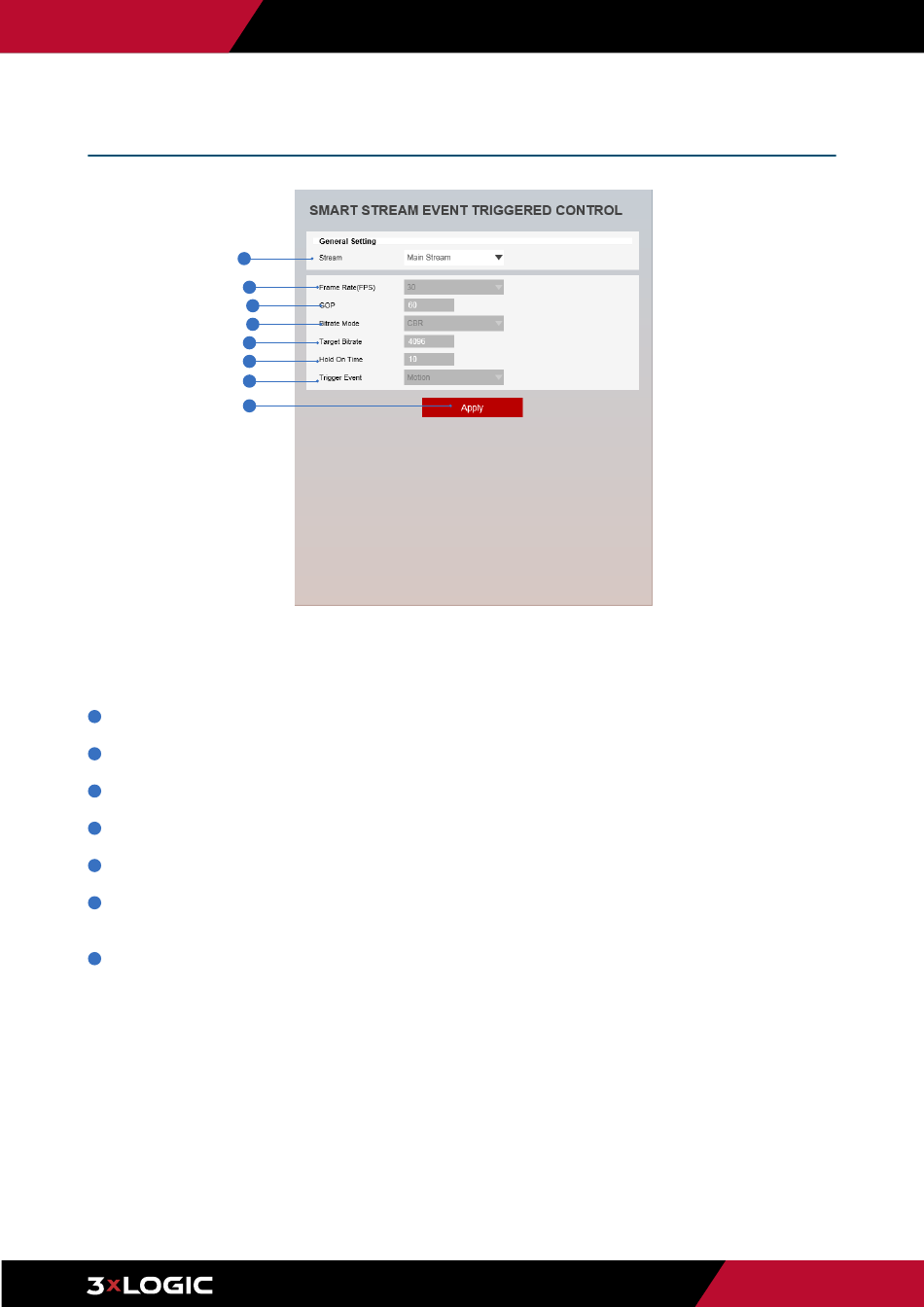

Smart Stream ETC (ACF) Configuration
1
2
3
4
5
6
7
8
Smart ETC allows specific stream settings to be used when a specific event occurs. ETC settings can be configured on this page. All
menus are activated by enabling Smart Stream ETC in the Smart Stream menu located on the the Video Configuration page.
Frame Rate - Set the frame rate value to change to when the trigger event occurs.
1
GOP - Set the GOP value (P-frame limit) to change to when the event trigger occurs.
2
Bitrate Mode - Set to the birate mode to change to when the event trigger occurs.
3
Target Bitrate - Set the Target Bitrate to be set when the event trigger occurs.
4
Hold on time - Set the amount of time to keep the Smart Stream ETC settings active when a event trigger occurs (5-60 seconds).
5
Trigger Event - Select the event that will trigger Smart ETC settings to activate. Motion / Alarm Input / Motion and Alarm Input
6
event triggers are available.
Click Apply to save new settings.
7
