Percussion Play Rainbow Trio Metallophone Installation Instructions

Advertisement

Quick Links

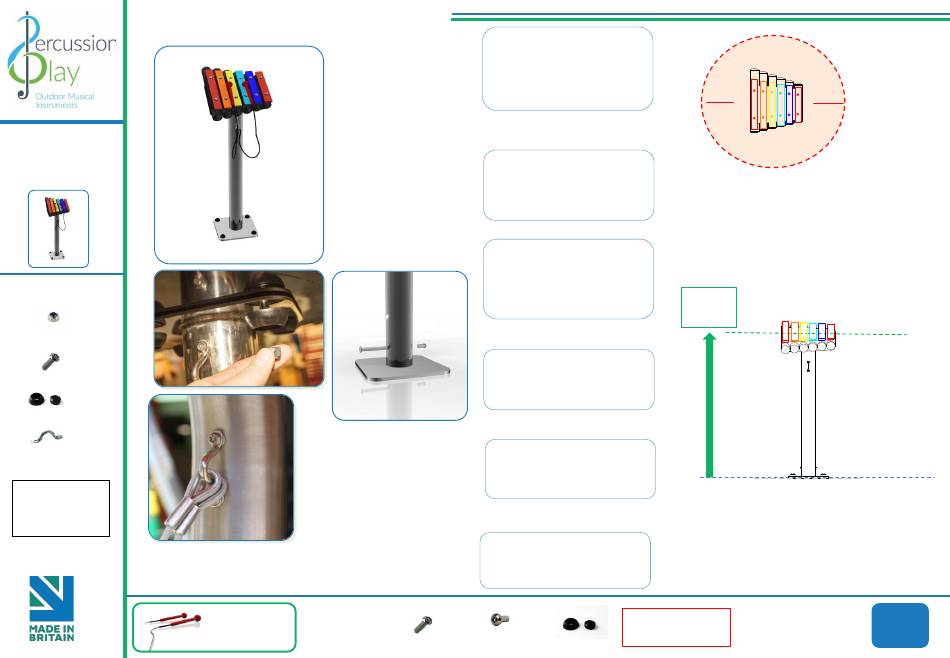

Installation Instructions
Surface Fixed
Rainbow Trio
Metallophone
Page 1 of 3
Instrument
Components:
x4
M8 Nyloc Nut
x2
M6x20 Security Screw
x4
2 Part Cover
Cap
x1
M6 Saddle Strap
Metric
Conversion:
850mm/ 33"
1.5m/ 59"
Weight of heaviest part
BS EN 1176
(1.1)
(1.3)
7kg
(Metallophone)
Surface Fix
Pair Small Red
Beaters X1
Components:
M10x70 Security Screw
1. Attach the steel legs to the
base of the instrument with
the M8 Nyloc Nuts and 2 part
security caps. (1.1) (See
Assembly Guide)
2. Attach Surface Fixing posts
to legs(1.2) (See Ground Fix
Post Installation Sheet)
3.Locate Plate in desired
location and mark holes to fix
(1.2)
to desired surface.
4. Fix to Surface using
recommended ground
anchors not supplied
5. Make sure all fixings are
covered and secure using
cover caps provided
6. Attach the 1 pair of beater
to the saddle strap on the leg.
(1.3)
x1
x4
x1
M10 Barrel Nut
2 Part Cover Cap
1.5m
850mm
from
plate
Spares available from
Ground Anchors
percussionplay.com
not supplied
local distributor
Install Instrument
1.5m
with 1.5m free space
(from widest point)
around it.
Ground Surface
19.5 Kg
or from your

Advertisement

loading
Need help?

Need help?

Do you have a question about the Rainbow Trio Metallophone and is the answer not in the manual?

Questions and answers

Summary of Contents for Percussion Play Rainbow Trio Metallophone

  • Page 1 Installation Instructions 1. Attach the steel legs to the base of the instrument with the M8 Nyloc Nuts and 2 part security caps. (1.1) (See Install Instrument 1.5m 1.5m with 1.5m free space Assembly Guide) (from widest point) around it. Surface Fixed Rainbow Trio 2.
  • Page 2 Assembly Guide PPCAVA Tools: TX 30 Driver Bit TX 40 Driver Bit Surface Fixed Rainbow Trio Metallophone Page 2 of 3 COMPONENTS LIST: Thread Lock Solution 2 Part Cover Cap X8 Required (Not Supplied) M8x20 Pin torx X4 M10x70 Pin torx X1 (1.1) Instrument M10 Barrel Nut Pin torx X1...
  • Page 3 Surface Fix Post Installation Tools: TX 45 Driver Bit Surface Fixed Rainbow Trio Metallophone Page 3 of 3 (1.1) Components: M10 Barrel Nut Thread Lock Solution Required (Not Supplied) M10x70 Security Screw 2 Part Cover Cap Thread Lock Solution Locate the Surface fix Fix instrument to Surface Fix Surface Plate to the Required (Not Supplied)
