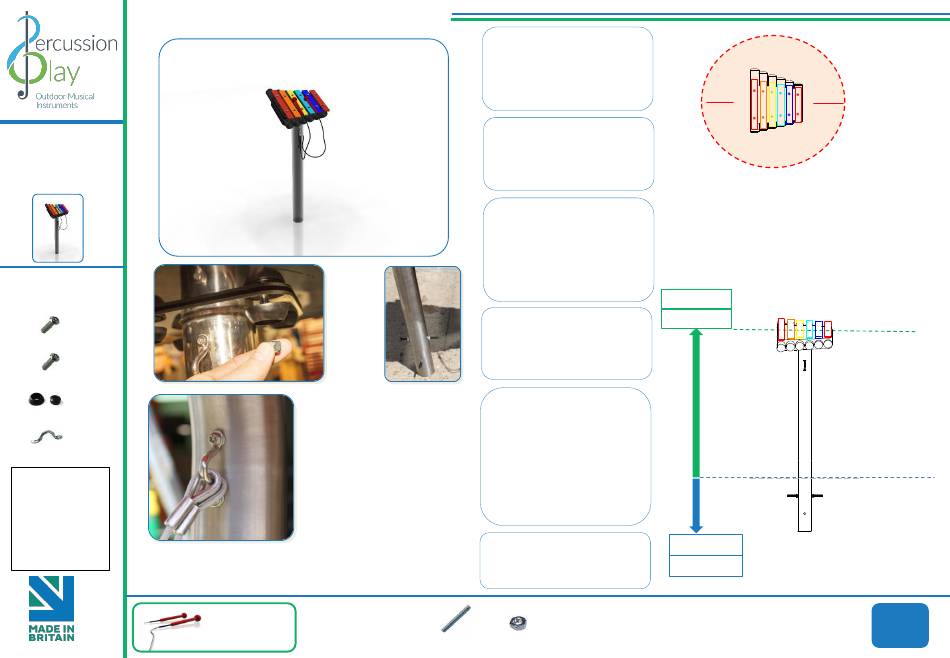

Percussion Play Rainbow Trio Metallophone Installation Instructions

Installation Instructions

Ground Fixed

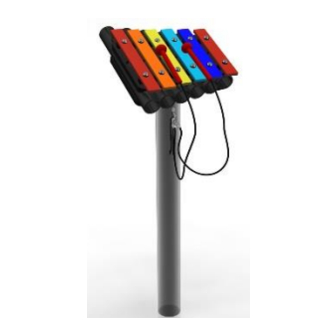

Rainbow Trio
Metallophone
Page 1 of 3
Instrument
Components:
x4
M8x20 Security Screw
x2
M6x20 Security Screw
x4
2 Part Cover
Cap
x1
M6 Saddle Strap
Metric
Conversion:
250mm/ 10"
300mm/ 12"
450mm/ 18"
700mm/ 28"
850mm/ 33"
1.5m/ 59"
Weight of heaviest part
BS EN 1176
(1.1) (1.1)
(1.3)
7kg (Metallophone)
Ground Fix
Pair Small Red
Beaters X1
Components:
1. Attach the steel legs to the
base of the instrument with
the M8 Nyloc Nuts and 2 part
security caps. (1.1) (See
Assembly Guide)
2. Attach Ground Fixing posts
to legs(1.2) (See Ground Fix
Post Installation Sheet)
3.Excavate 1 hole for the
Steel legs 250mm diameter
by 350-500mm deep
depending on Key stage, in
desired location upon
(1.2)
decision from customer.
4. Locate (lower) legs into
holes making sure they are
vertical and level prior to
concreting in place.
5. Once happy with location
of the Instrument, fill holes
using rapid hardening
concrete. Be sure to compact
concrete around legs and
leave to dry according to
manufactures guidelines.
6. Attach the 1 pair of beater
to the saddle strap on the leg.
(1.3)
x2
x4
M10x200 Bolt M10 Nut
Install Instrument
1.5m 1.5m
with 1.5m free space
(from widest point)
around it.
KS1 700mm
KS2 850mm
Ground Surface
KS2 - 300mm
KS1 - 450mm
Spares available from
percussionplay.com or from your
local distributor
19.5 Kg
