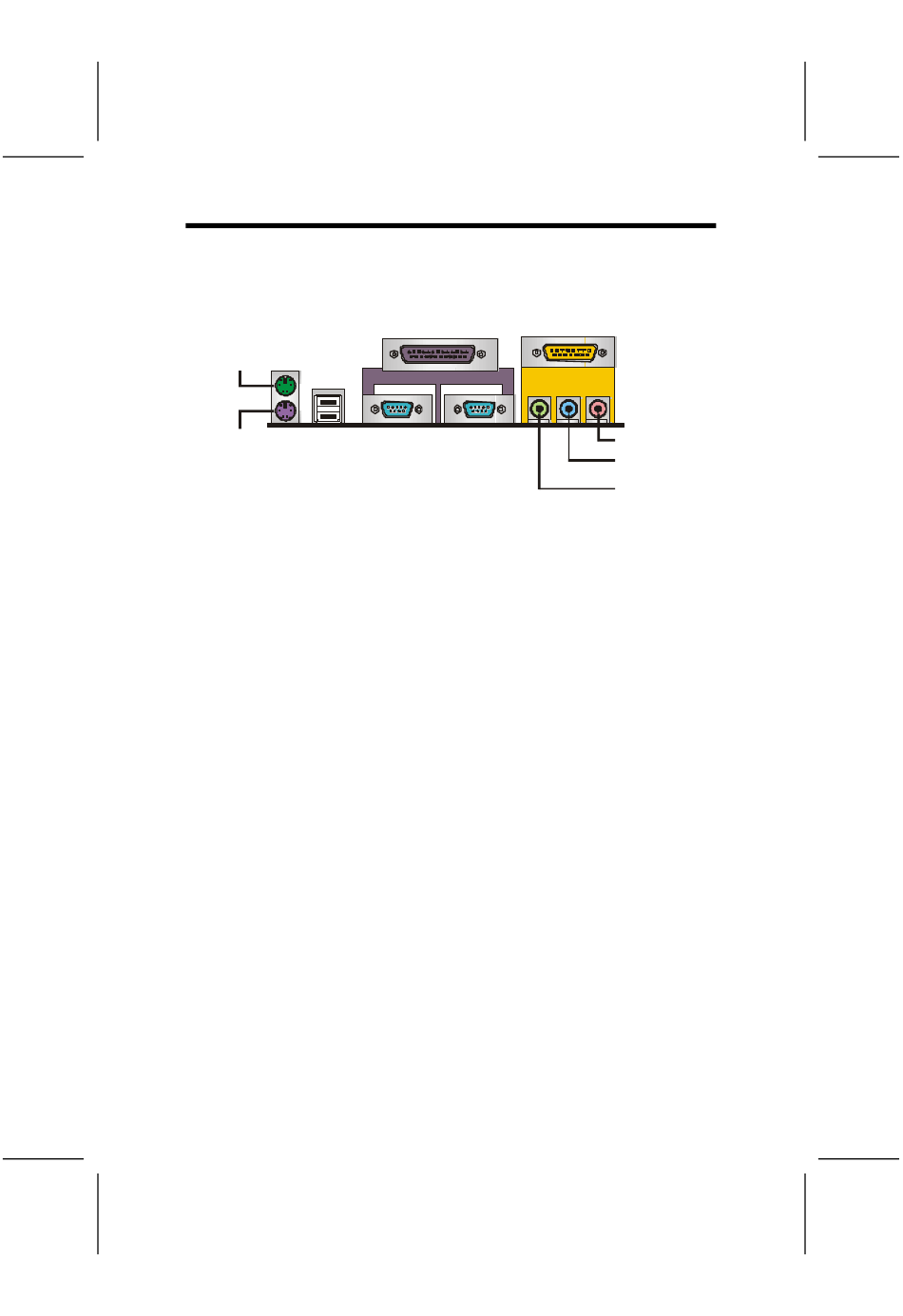

The backplane of the mainboard has a full set of I/O ports:
PS/2
mouse
PS/2
USB
keyboard
ports
1. Use the upper PS/2 port to connect a PS/2 pointing
device. Use the lower PS/2 port to connect a PS/2
keyboard.
2. Use the USB ports to connect USB devices.
3. Use LPT1 to connect printers or other parallel commu-
nications devices.
4. Use the COM ports to connect serial devices such as
mice or fax/modems. COM1 is identified by the system
as COM1/3. COM2 is identified by the system as
COM2/4.
5. Use the game port to connect a joystick or a MIDI de-
vice.
6. Use the three audio ports to connect audio devices.
The left side jack is for a stereo line-out signal. The
middle jack is for a stereo line-in signal. The right side
jack is for a microphone.
D
e
v
i
c
e
s
D
e
v
i
c
e
s
Parallel port (LPT1)
Game port
Serial port
Serial port
COM 1
COM 2
31
Microphone
Line-in
Line-out
