USB Connectors

®
The Intel CM238 Platform Controller Hub incorporates a four-port USB 3.0 xHCI host controller. Two
ports are directly available on the SC5-FESTIVAL front panel (type A receptacle), for attachment of
external USB devices.
1)
+5V via 1.5A current-limited electronic power switch. The voltage is active in power states S0-
S5 and may be switched off by software independently for each port.
© EKF

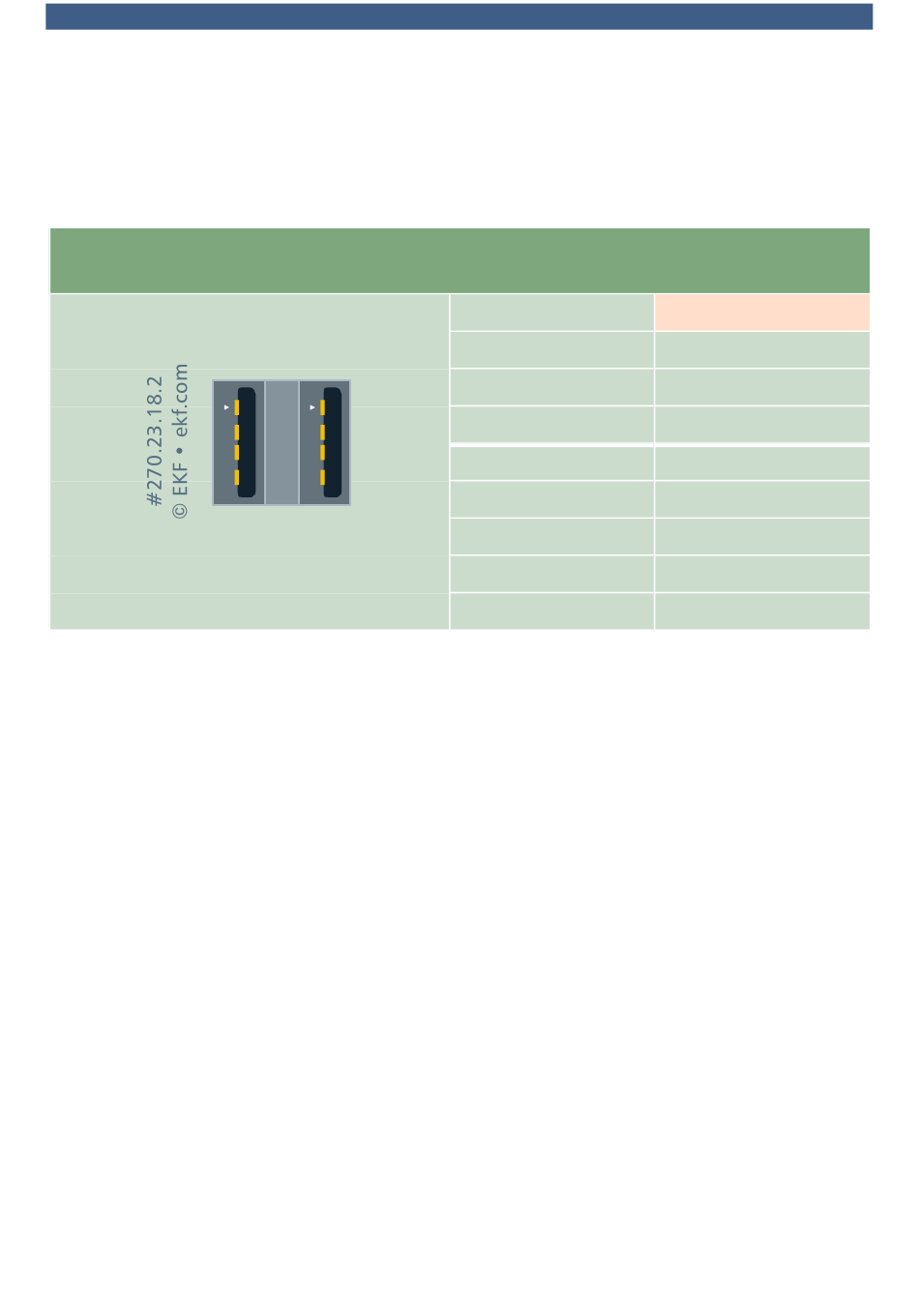

P-USB • Dual USB 3.0 Receptacle
USB 3.0 dual type A receptacle, stacked, 18-position
USB 3.0
1 2
®
Serial CPU Board
1
2
3
4
5
6
7
8
9
-80-
VBUS +5V, 1.5A max
USB D-
USB D+
GND
SS RX-
SS RX+
GND
SS TX-
SS TX+
