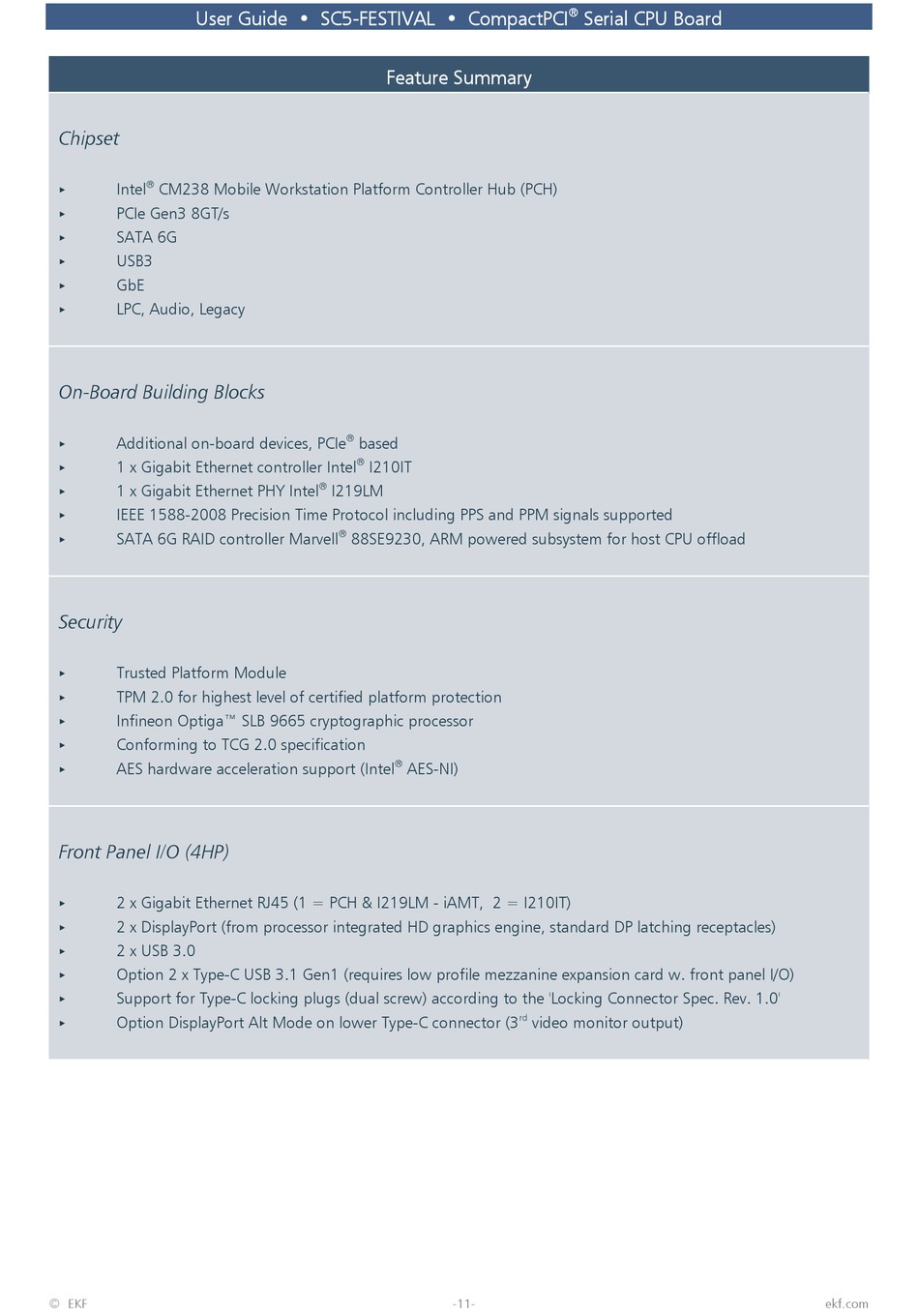

User Guide • SC5-FESTIVAL • CompactPCI
Chipset
®
Intel
CM238 Mobile Workstation Platform Controller Hub (PCH)
<
PCIe Gen3 8GT/s
<
SATA 6G
<
<
USB3
GbE
<
LPC, Audio, Legacy
<
On-Board Building Blocks
<
Additional on-board devices, PCIe
<
1 x Gigabit Ethernet controller Intel
1 x Gigabit Ethernet PHY Intel
<
IEEE 1588-2008 Precision Time Protocol including PPS and PPM signals supported
<
<
SATA 6G RAID controller Marvell
Security
Trusted Platform Module
<
TPM 2.0 for highest level of certified platform protection
<
Infineon Optiga™ SLB 9665 cryptographic processor
<
<
Conforming to TCG 2.0 specification
AES hardware acceleration support (Intel
<
Front Panel I/O (4HP)
2 x Gigabit Ethernet RJ45 (1 = PCH & I219LM - iAMT, 2 = I210IT)
<
2 x DisplayPort (from processor integrated HD graphics engine, standard DP latching receptacles)
<
<
2 x USB 3.0
Option 2 x Type-C USB 3.1 Gen1 (requires low profile mezzanine expansion card w. front panel I/O)
<
Support for Type-C locking plugs (dual screw) according to the 'Locking Connector Spec. Rev. 1.0'
<
Option DisplayPort Alt Mode on lower Type-C connector (3
<
© EKF
Feature Summary
®
based
®
I210IT
®
I219LM
®
88SE9230, ARM powered subsystem for host CPU offload
®
AES-NI)
-11-
®
Serial CPU Board
rd
video monitor output)
ekf.com
