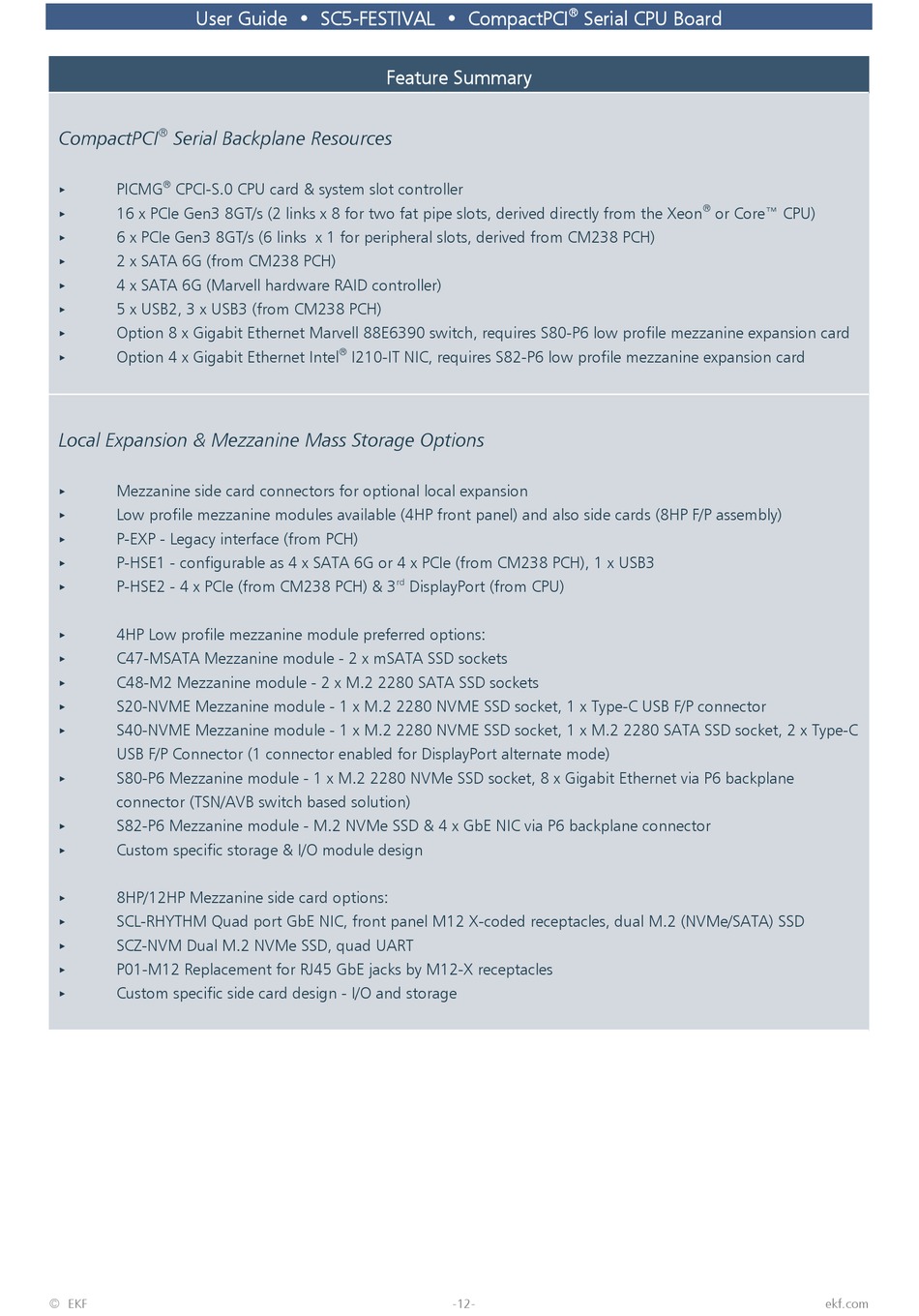

User Guide • SC5-FESTIVAL • CompactPCI
®
CompactPCI Serial Backplane Resources
®
PICMG CPCI-S.0 CPU card & system slot controller
<
16 x PCIe Gen3 8GT/s (2 links x 8 for two fat pipe slots, derived directly from the Xeon
<
6 x PCIe Gen3 8GT/s (6 links x 1 for peripheral slots, derived from CM238 PCH)
<
< 2 x SATA 6G (from CM238 PCH)
4 x SATA 6G (Marvell hardware RAID controller)
<
5 x USB2, 3 x USB3 (from CM238 PCH)
<
< Option 8 x Gigabit Ethernet Marvell 88E6390 switch, requires S80-P6 low profile mezzanine expansion card
< Option 4 x Gigabit Ethernet Intel
Local Expansion & Mezzanine Mass Storage Options
Mezzanine side card connectors for optional local expansion
<
Low profile mezzanine modules available (4HP front panel) and also side cards (8HP F/P assembly)
<
< P-EXP - Legacy interface (from PCH)
P-HSE1 - configurable as 4 x SATA 6G or 4 x PCIe (from CM238 PCH), 1 x USB3
<
P-HSE2 - 4 x PCIe (from CM238 PCH) & 3
<
< 4HP Low profile mezzanine module preferred options:
C47-MSATA Mezzanine module - 2 x mSATA SSD sockets
<
C48-M2 Mezzanine module - 2 x M.2 2280 SATA SSD sockets
<
S20-NVME Mezzanine module - 1 x M.2 2280 NVME SSD socket, 1 x Type-C USB F/P connector
<
< S40-NVME Mezzanine module - 1 x M.2 2280 NVME SSD socket, 1 x M.2 2280 SATA SSD socket, 2 x Type-C
USB F/P Connector (1 connector enabled for DisplayPort alternate mode)
S80-P6 Mezzanine module - 1 x M.2 2280 NVMe SSD socket, 8 x Gigabit Ethernet via P6 backplane
<
connector (TSN/AVB switch based solution)
< S82-P6 Mezzanine module - M.2 NVMe SSD & 4 x GbE NIC via P6 backplane connector
Custom specific storage & I/O module design
<
8HP/12HP Mezzanine side card options:
<
< SCL-RHYTHM Quad port GbE NIC, front panel M12 X-coded receptacles, dual M.2 (NVMe/SATA) SSD
SCZ-NVM Dual M.2 NVMe SSD, quad UART
<
P01-M12 Replacement for RJ45 GbE jacks by M12-X receptacles
<
< Custom specific side card design - I/O and storage
© EKF
Feature Summary
®
I210-IT NIC, requires S82-P6 low profile mezzanine expansion card
rd
DisplayPort (from CPU)
-12-
®
Serial CPU Board
®
or Core™ CPU)
